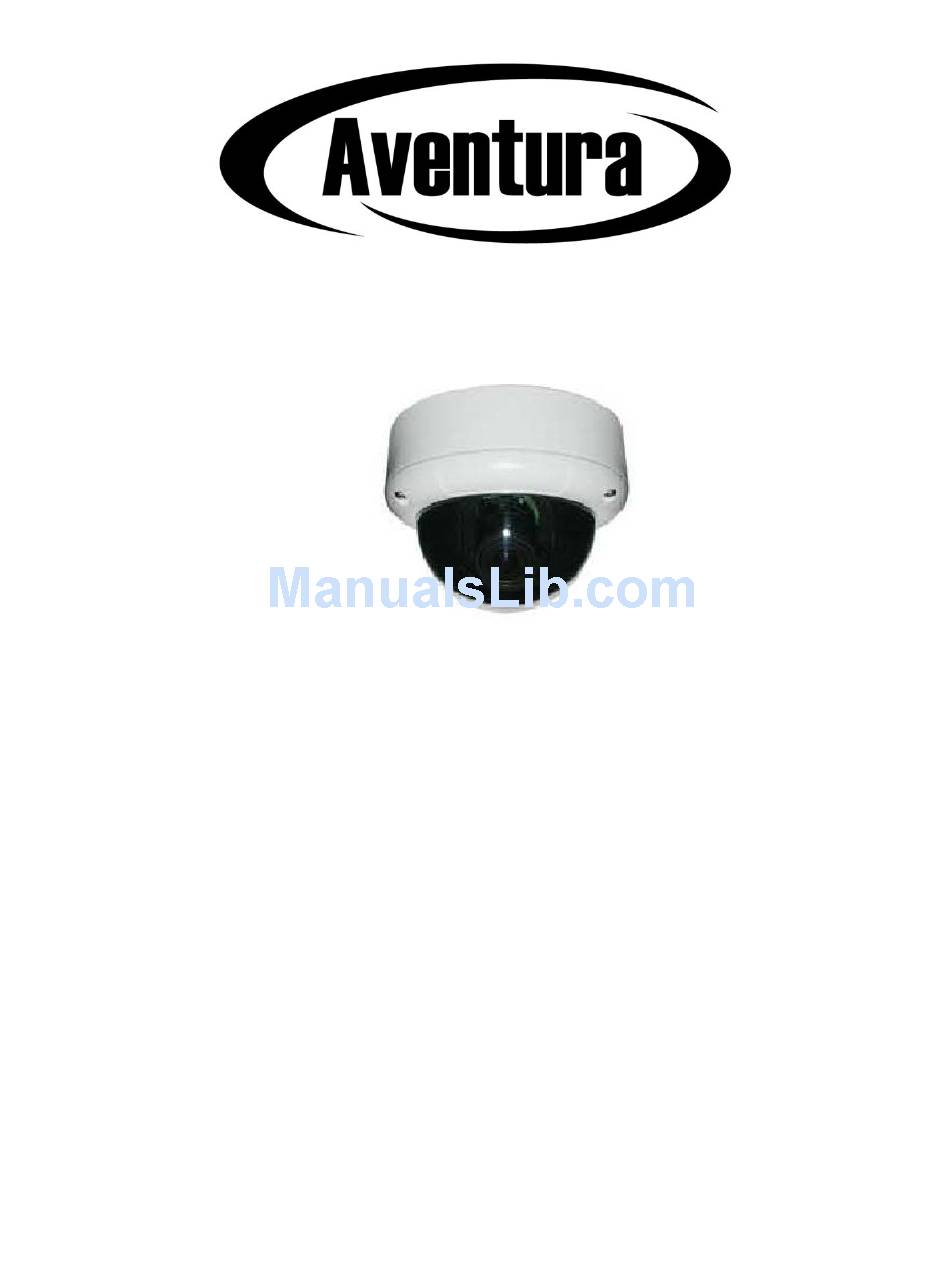

- Page 1 CAM-7D-21IR-WDR Waterproof & Vandalproof IR Dome Camera Installation and User Manual...
- Page 2 Aventura CAM-7D-21IR-WDR Reference Manual Introduction Thank you for purchasing the Aventura CAM-7D-21IR-WDR Waterproof and Vandalproof IR Dome Camera. This product provides crisp color day imaging, active IR illumination at night and is protected by a vandal resistant housing. It is wells-suited for a wide variety of CCTV and surveillance applications.
-
Page 3: Specifications
Aventura CAM-7D-21IR-WDR Reference Manual Specifications Model CAM-7D-21IR-WDR 1/3" SONY EXview HAD CCD Pick up Element NTSC:976(H)×494(V) PAL:976(H)x582(V) Effective Picture Elements (H×V) 700 TV Line Horizontal Resolution 0.001 Lux Minimum Illumination 0Lux (with IR LED ON) 52dB S/N Ratio 2:1 interface Scanning System Internal, Negative sync. - Page 4 Aventura CAM-7D-21IR-WDR Reference Manual Features Auto Gain Control (AGC) for sharp imaging in low light conditions Scanning Mode (NTSC or PAL) On-screen display and configuration Weather Resistant (IP66 Rated) Standard AE SWDR Level :0~8, DWDR: On/Off...
-
Page 5: Connecting The Unit
Aventura CAM-7D-21IR-WDR Reference Manual Connecting the Unit Monitor Video KEY BOARD DC12V CAM-7D-21IR-WDR MENU Link wire rule： RIGHT LEFT Video Power PRESS DOWN DC12V Power Supply Troubleshooting 1. No Picture after providing power . May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude. -
Page 6: Technical Support
Unauthorized service may invalidate warranties or service agreements. Some service may require equipment to be returned to Aventura’s offices for evaluation and repair. Be certain to follow proper packing and shipping instructions for all equipment to prevent damage during transport.
