Aventura CAM-HS-605HB Reference Manual

Advertisement

CAM-HS-605HB
CAM-HS-605HB-AC
Reference Manual



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM-HS-605HB and is the answer not in the manual?

Questions and answers

Summary of Contents for Aventura CAM-HS-605HB

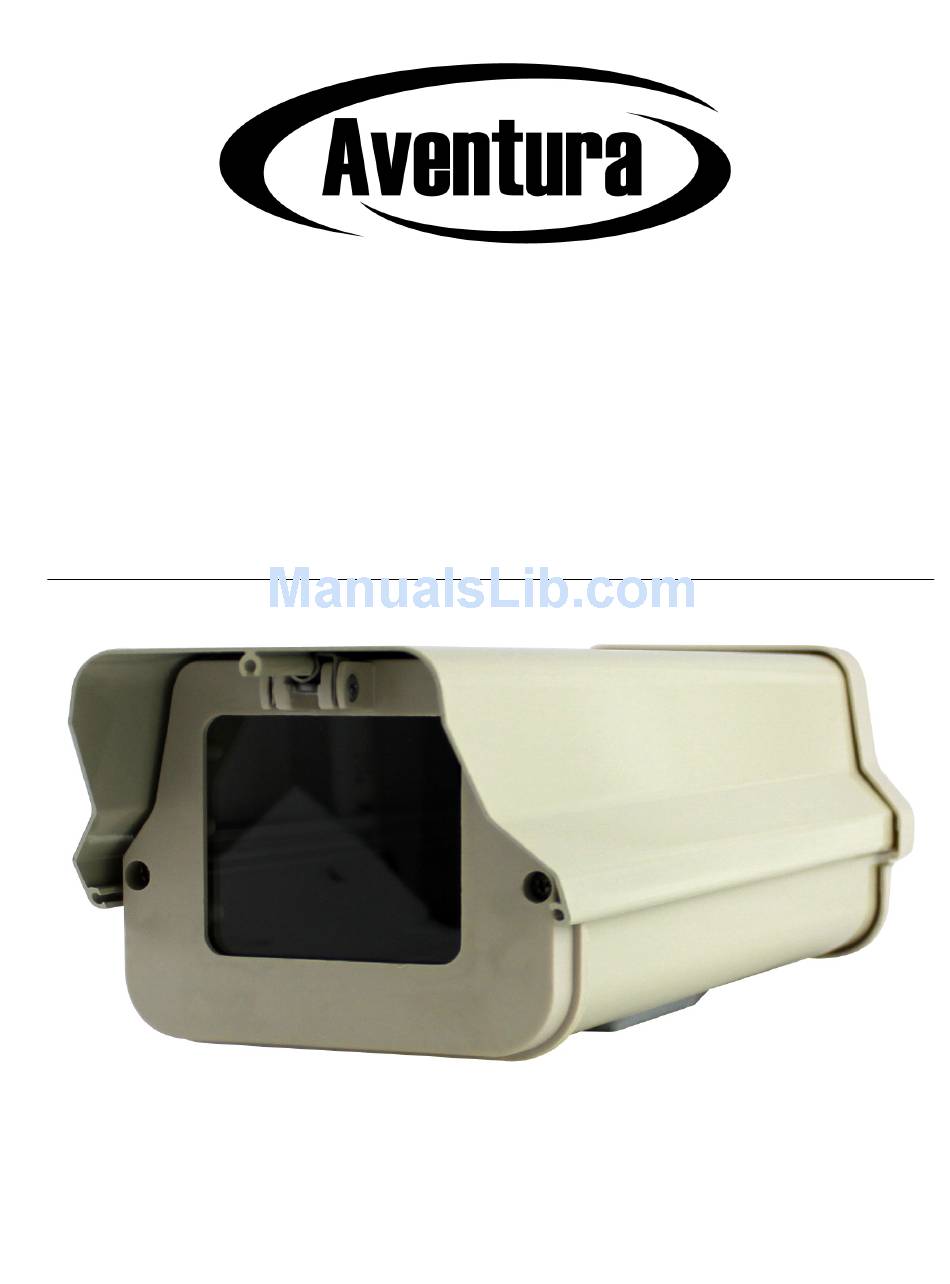

  • Page 1 CAM-HS-605HB CAM-HS-605HB-AC Reference Manual    ...
  • Page 2 CAM‐HS‐605HB Reference Manual    2    Brief Introduction  Outdoor Camera Housing   12 VDC / 24 VAC   Heater and Blowe    Unhinge to unlock enclosure Lift Lid to open casing     Cooling Fan Camera Mounting Plate  ...
  • Page 3 CAM‐HS‐605HB Reference Manual    3    Housing Mounting Plate Wiring Access Hole Additional Hardware     Mounting Screws  Wiring Access Hardware     ...
  • Page 4 CAM‐HS‐605HB Reference Manual    4    Insert Into Wiring Access Hole Unscrew Cap from Wiring Access Under Wiring Wiring Access Under Hardware Hardware Housing     Press down until  firmly clipped  into hole.  Wiring access  hole is now ready  for wiring.    With wiring  funneled  through, screw  cap back on to  secure cords. ...
  • Page 5: Specifications

    CAM‐HS‐605HB Reference Manual    5    Internal Power Connection     Specifications Type  Outdoor Camera Housing Material/Color  Aluminum Beige/Silver‐grey Appearance Size  142 x 115 x 370 mm Suitable Camera Size  100 x 80 x 300 mm Control Temperature  Heater:        Blower: ON:15°C       ON:35°C  OFF:25°C      OFF:25°C Ingress Protection Rating  IP66  Input Voltage  12VDC / 24VAC 500mA  Weight  2.25 lbs (1.02 kg)
  • Page 6 CAM‐HS‐605HB Reference Manual    6    NOTES: _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________  Technical Support For difficulties using this unit please contact Aventura technical support at 631‐300‐4000 or toll‐free at  1‐877‐707‐9600.  Online support is available at www.AventuraCCTV.com or email  techsupport@ati247.com  When contacting technical support be certain to have full details about your Aventura products  available, including model and invoice numbers.    Service Any service required by this unit should be performed by Aventura or authorized service personnel.   Unauthorized service may invalidate warranties or service agreements.  Some service may require  equipment to be returned to Aventura’s offices for evaluation and repair.  Be certain to follow proper  packing and shipping instructions for all equipment to prevent damage during transport. ...

This manual is also suitable for:

Cam-hs-605hb-ac
