MaTRx Headrests with Standard Mounting Hardware

HEADREST KITS:

The headrest installation hardware/components provided in each Standard Mounting
Hardware Kit are identical, with the exception of the Onyx-Style headrest. (Refer to
Figure 1.0 & Figure 1A below). The Onyx headrest utilizes a unique mounting
hardware kit. There are seven (7) optional headrest assemblies available for use with
our standard mounting hardware. (Headrest options are illustrated in Figure 2.0).

Standard Mounting Hardware

(excluding headrest ass'y)

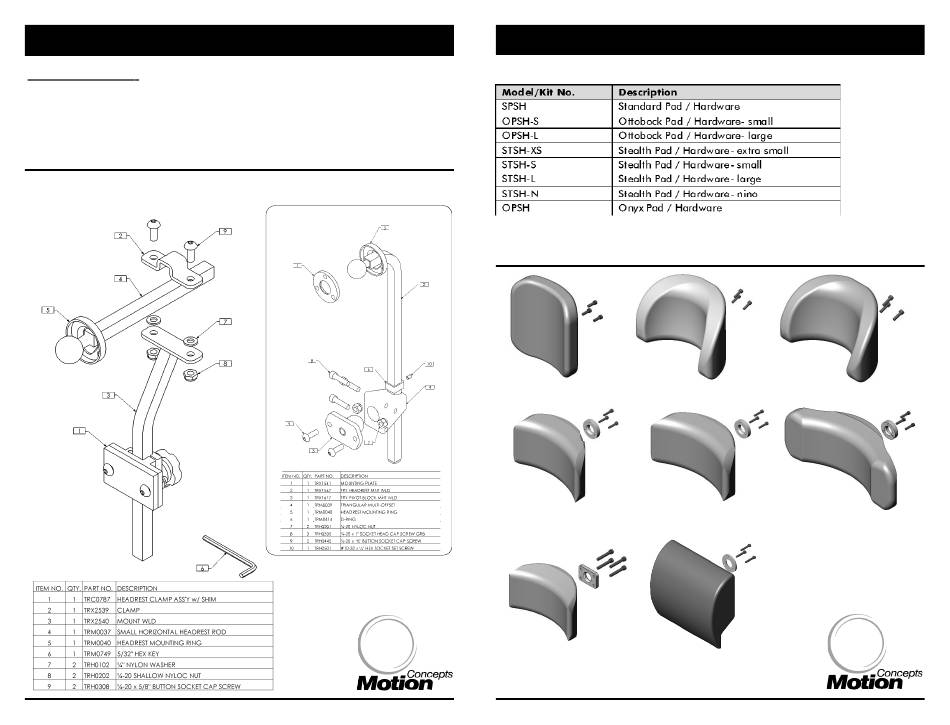

Figure 1.0
- 1 -
Onyx Style Mounting Hardware
Figure 1A
MaTRx Headrests with Standard Mounting Hardware

Headrest Kit Options*

(refer to Figure 2.0 for the various Headrest Ass'y Options)
Figure 2.0 - Optional Headrest Assemblies
SPSH OPSH-S
Ottobock Pad-Sm
Standard Pad
STSH-XS
Stealth Pad- Xtra Sm (8") Stealth Pad-Sm (10")
STSH-N
Stealth Pad- Nino (6")
Note: each headrest includes corresponding mounting hardware)
TRD0244- MaTRx Headrests- Standard Mounting Hardware Installation Manual- Rev 2.0
- 2 -
OPSH-L
Ottobock Pad-Lg
STSH-L
STSH-S
Stealth Pad-Lg (14")
(*requires Onyx Style mounting
OPSH
hardware- see Figure 1A)
Onyx Pad
