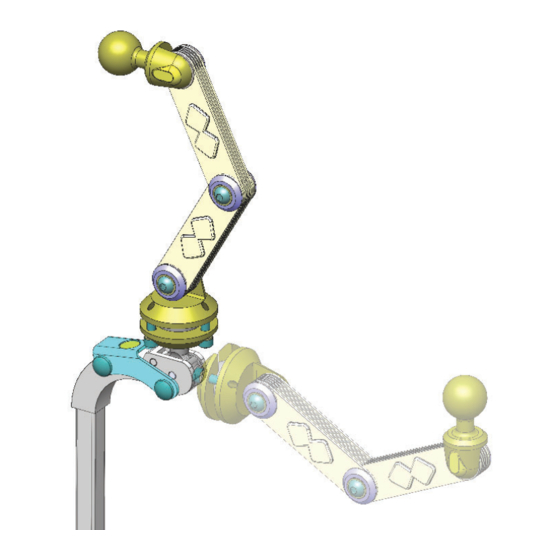

Matrx
®
FLIPP ELAN
H
M
H
EADREST
OUNTING
ARDWARE
(includes Standard, Mini and Extended Hardware Options)
INSTALLATION
SET-UP
AND
DEALER: This manual MUST be given to the user of the product.
USER: Before using this product, read this manual and save for future reference.
TRD0704 Rev A
Advertisement
Related Manuals for Motion Concepts Matrx FLIPP ELAN
Summary of Contents for Motion Concepts Matrx FLIPP ELAN

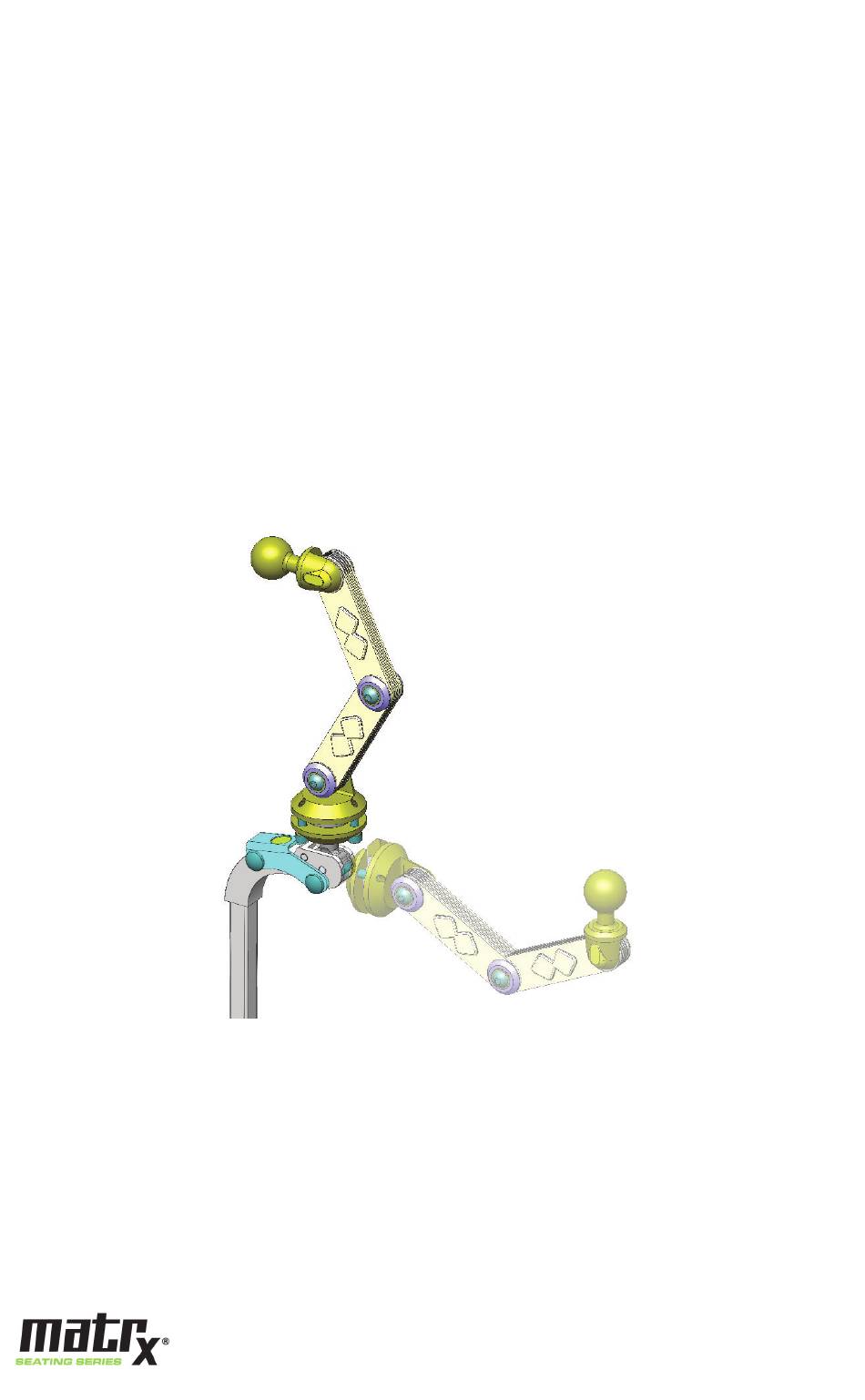

- Page 1 Matrx ® FLIPP ELAN EADREST OUNTING ARDWARE (includes Standard, Mini and Extended Hardware Options) INSTALLATION SET-UP DEALER: This manual MUST be given to the user of the product. USER: Before using this product, read this manual and save for future reference. TRD0704 Rev A...
- Page 2 Invacare/ Motion Concepts warrants this product to be free from defects in materials and workmanship for three months of use by original purchaser. This warranty does not apply to punctures, tears or burns, nor to the removable cushion cover.
- Page 3 ® FLIPP ELAN headrest hardware. • Wherever practicable Motion Concepts recommends that the client is transferred out of the wheelchair into a vehicle seat using a lap and diagonal seat belt or an appropriate child safety seat. • For safe transportation of a client within a wheelchair in a motor vehicle, refer to the user manuals for the wheelchair and the tie-down and occupant restraint system (WTORS).
- Page 4 2.1 M (Refer to images provided in Section 2.2: ADJUSTMENT OVERVIEW (p.5-7)) OPTIONAL LEVER HANDLES (see Fig 1 and Fig 6) Lever Handles (C) may be installed for easier angle adjustment of the headrest linkages (see Fig. 6a/6b). To install, carefully unscrew the locking screw from the desired link pivot using the 4 hex key (provided) and retain the original washer (a).
- Page 5 FLIPP ELAN H Fig. 1 Fig. 4 STD. EXT. Fig. 3 15” 11” Fig. 2 - 5 -...
- Page 6 Fig. 5 H (4mm) EXT. STD. . 6. (O Fig. 6a Fig. 6b - 6 -...
- Page 7 Fig. 7 Fig. 8 Description Imperial Metric Imperial Metric A. Elan Standard Pad ESP6 (ESP15) ESP6-IC (ESP15-IC) B. Elan Standard Pad ESP10 (ESP25) ESP10-IC (ESP25-IC) C. Elan Standard Pad ESP14 (ESP36) ESP14-IC (ESP36-IC) D. Elan 4-Point Pad-sm E4PTSM (E4PTSM) E4PTSM-IC (E4PTSM-IC) E.
- Page 8 Copyright © 2023 Motion Concepts LP. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Motion Concepts. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
