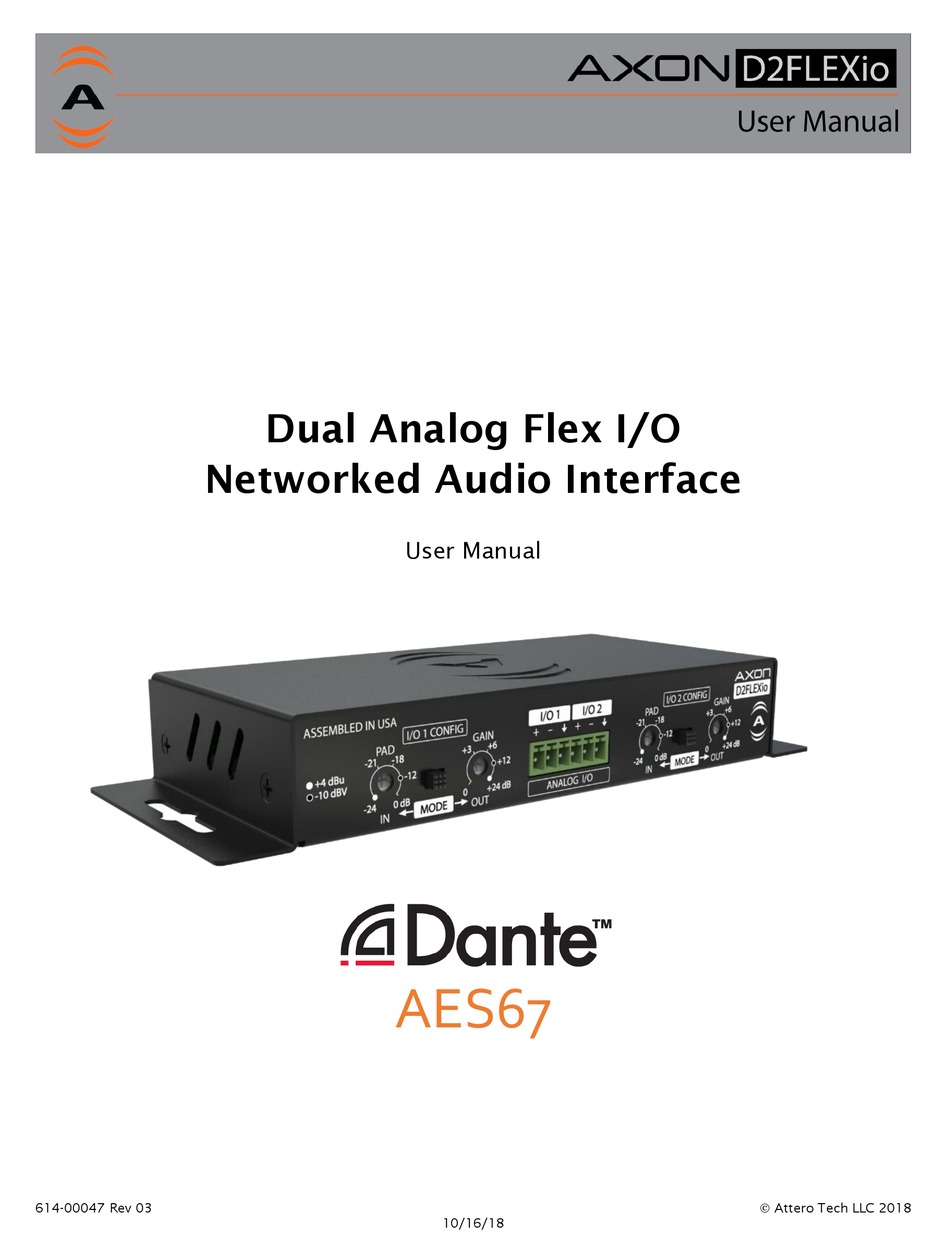

- Page 1 Dual Analog Flex I/O Networked Audio Interface User Manual AES67 614-00047 Rev 03 Attero Tech LLC 2018 10/16/18...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 Should any defect develop, Attero Tech, LLC will, at our option, repair or replace any defective parts without charge for either parts or labor. If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item.
-
Page 4: Table Of Contents
Contents 1 – Overview ............................................... 2 1.1 – What’s in the Box ..................................2 1.2 – Optional Extras ..................................2 2 – Device Installation ............................................ 2 2.1 – Mounting ....................................3 2.2 – Error Reporting ..................................4 2.3 – Hardware Connections ................................4 2.3.1 –... -
Page 5: Overview
– Overview – Device Installation Figure 1 - D2FLEXio Front Panel The D2FLEXio provides cost effective analog audio connectivity for installed AV systems. Each analog audio I/O features an installer selectable switch to assign input or output audio connectivity. The D2FLEXio is 802.3af PoE powered with the option of a local DC supply in cases where PoE power is not available. -
Page 6: Mounting
LEDs will come on and if there is network activity, the yellow LED will then flash. *Note: CAD drawings can be downloaded from the Attero Tech website. Please contact Attero Tech for any further product related information that accessible on the website. -
Page 7: Error Reporting
2.2– Error Reporting 2.3.1 – Balanced to Balanced Wiring The D2FLEXio is equipped with error reporting features. Upon power up, the front panel power LED will briefly light red and then Balanced XLR-M Terminal Block Plug change to green if the device boots successfully. The following chart indicates other error states: Pin 1 Pin 3... -
Page 8: Device Configuration
3.2– IP Address Setup – Device Configuration ************************* IMPORTANT ************************** There are two parts of the device that require setup. First the Failure to correctly configure IP addresses will not allow an audio routing, and second the configurable features of the device D2FLEXio device to correctly authenticate in the unIFY Control itself. -
Page 9: Factory Reset
Updates are applied via the network using Attero Tech unIFY Control Panel’s smart firmware update facility. The latest D2FLEXio SFU file is available from the Attero Tech customer portal. 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260)496-9668 ⁞ www.atterotech.com... -
Page 10: Architects & Engineers Specification
The Dante™/AES67 interface shall be compliant with the RoHS, WEEE and REACH directives. The Dante™/AES67 interface unit shall be Compliant with the EMC/ESD requirements for FCC and CE. The unit shall be the Attero Tech AXON D2FLEXio interface. 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260)496-9668 ⁞ www.atterotech.com... -
Page 11: Device Specifications
Device Specifications Analog Audio Inputs Dante™/AES67 Network (when selected) Two switchable Balanced and RF filtered Physical Layer Ethernet I/O Type 3-pin de-pluggable terminal blocks Connector (s) RJ-45 Maximum Input Levels 0 dBu to +24dBu line-level (Pad attenuation 0 to -24dB) Cable Quality CAT-5e or better, UTP Transmission Speed...
