Summary of Contents for Attero Tech unDIO2X2Plus

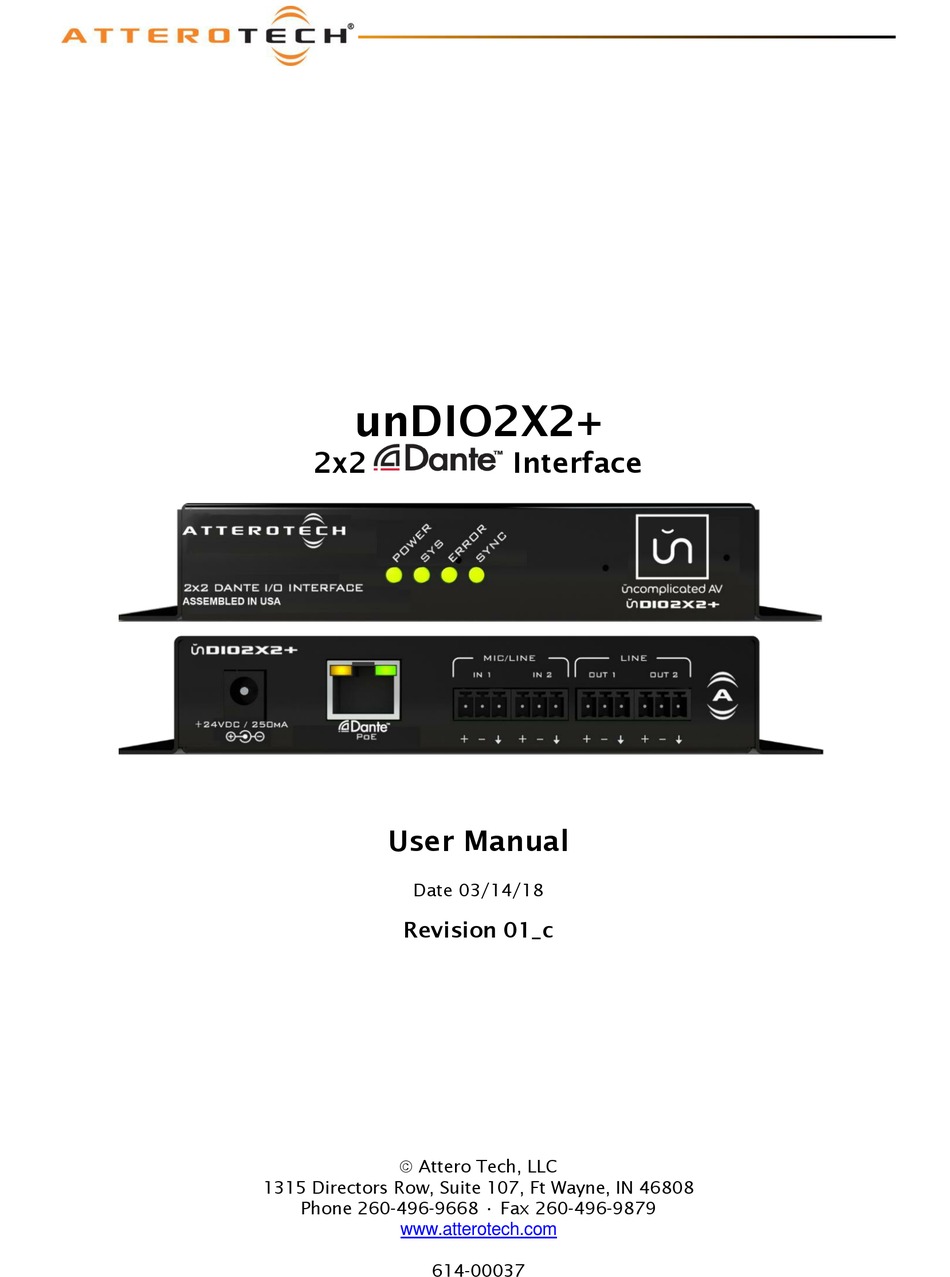

- Page 1 Interface User Manual Date 03/14/18 Revision 01_c Attero Tech, LLC 1315 Directors Row, Suite 107, Ft Wayne, IN 46808 Phone 260-496-9668 • Fax 260-496-9879 www.atterotech.com 614-00037...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item. Attero Tech, LLC will pay for the cost of returning your equipment to you.
-
Page 4: Table Of Contents
4.1 – Command Interface Type ............................4 4.2 – Using the Command interface ..........................4 5 – ARCHITECTS & ENGINEERS SPECIFICATION .............................. 5 5.1 – Device Specifications ..............................5 APPENDIX A - Reference Documents ................................A-1 Attero Tech LLC 2018 Page 3 614-00037 Rev 01_b... -
Page 5: Overview
Figure 1 - unDIO2X2+ front and back Audinate’s Dante Controller or other 3rd party manufacturer's Dante routing software can be used to control the audio routing configuration of the device while the Attero Tech unIFY Control Panel application can be used to configure the device-specific features. -
Page 6: Device Installation
6 digits make up part of the devices default network name that is shown when the device is detected by Dante Controller. The full MAC address is also given on the bottom of the unit. Attero Tech LLC 2018 Page 5... -
Page 7: Mounting
2.3 for further details). *Note: All Attero Tech products are tested using UTP cabling and it is recommended that UTP cabling be used when installing them. STP cabling can be used for installation though care must be taken not introduce grounding issues into the system by doing so. -
Page 8: Status Leds
PTP currently syncing PTP error / no PTP sync / PTP disabled Green PTP Slave, with PTP sync Flashing PTP master Green Color Description Yellow Capability is corrupted Memory stack overflow Attero Tech LLC 2018 Page 7 614-00037 Rev 01_b... -
Page 9: Hardware Connections
2.3.2 – Balanced Output to an Unbalanced Input Balanced Output Terminal Block Plug TS Plug Sleeve 2-Wire Cable Balanced Output RCA Plug Terminal Block Plug Sleeve 2-Wire Cable Figure 4 – Unbalanced Wiring Guide Attero Tech LLC 2018 Page 1 614-00037 Rev 01_b... -
Page 10: Unbalanced Output To An Balanced Input
2.3.3 – Unbalanced Output to an Balanced Input Balanced Input Terminal Block Plug TS Plug Sleeve 2-Wire Cable Balanced Input Terminal Block Plug RCA Plug Sleeve 2-Wire Cable Figure 5 – Unbalanced Wiring Guide Attero Tech LLC 2018 Page 2 614-00037 Rev 01_b... -
Page 11: Device Configuration
Configuration of the unDIO2X2+ specific features is carried out using the Attero Tech unIFY Control Panel application. This application is available from the Attero Tech website (www.atterotech.com). It should be used to examine and modify the device specific features such as mic/line gain settings, phantom power, and output boost options. -
Page 12: Command Interface Type
There are two control interface types available for the unDIO2X2+. The first type is a Dante proprietary interface which is typically used by devices already that have built-in support for Attero Tech devices. The second type supports a 3 party UDP interface and is available to anyone to use with any device capable of sending and receiving UDP messages. -
Page 13: Architects & Engineers Specification
The unit shall accept either +24VDC or IEEE 802.3af standard PoE as power input. The unit shall be compliant with FCC Part 15, CE, RoHS requirements. The unit shall be the Attero Tech unDIO2x2+ I/O Interface. 5.1 – Device Specifications... -
Page 14: Appendix A - Reference Documents
The following table lists the relevant reference documents. Document Title Location unIFY 3 Party Software API Registered users area on website Dante Firmware Update Quick Start Registered users area on website Attero Tech LLC 2018 Page A-1 614-00037 Rev 01_b... - Page 15 Corrected artwork, minor changes to copy. Ready for release. 02/24/17 Release Version 01_a 07/14/17 Added chart for status LED meanings 01_b 10/16/17 Bug #3484 – Add statement in manual regarding UTP/STP cable 01_c 03/14/18 Warranty Updated Attero Tech LLC 2018 Page i 614-00037 Rev 01_b...
