3.4.

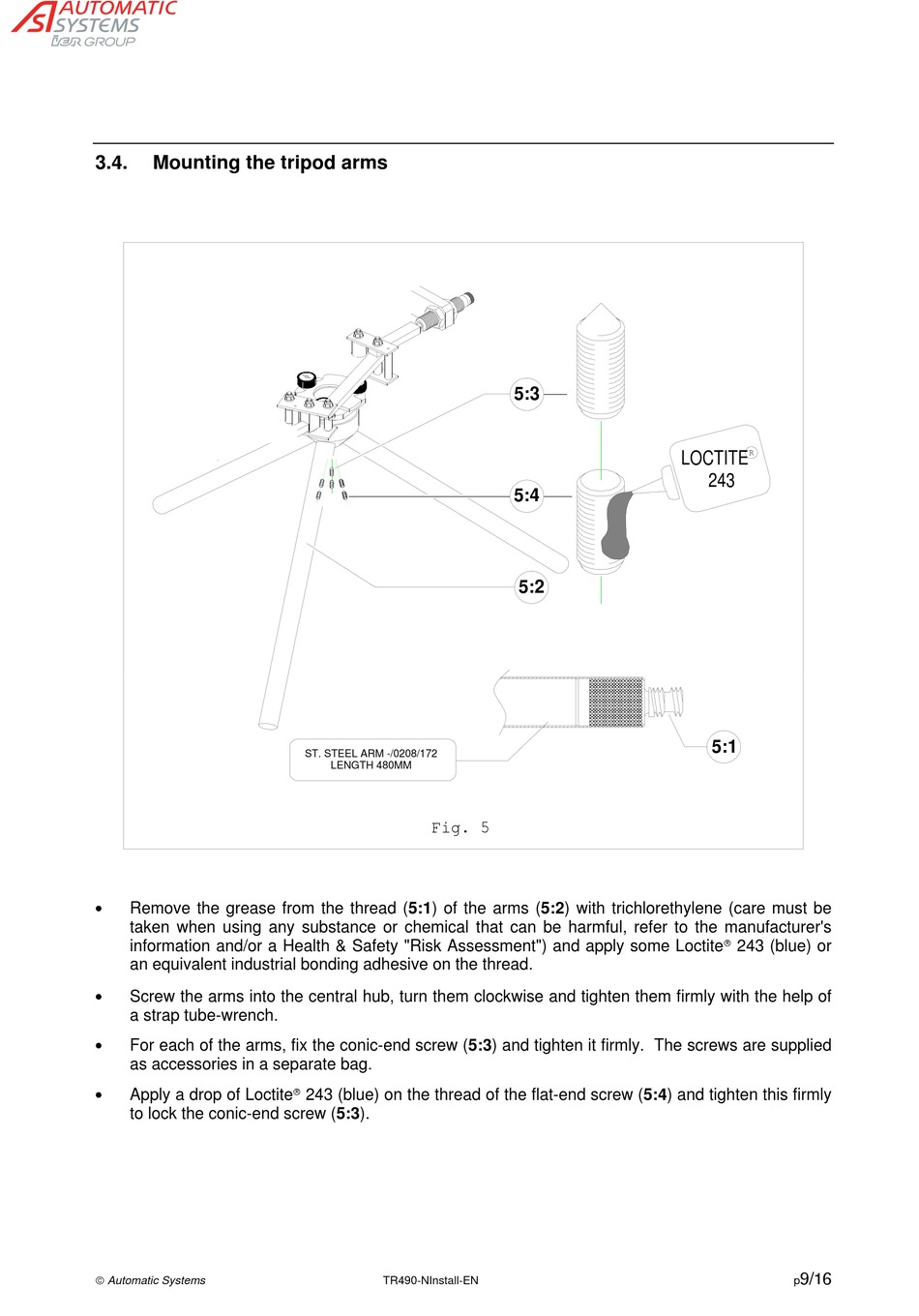

Mounting the tripod arms


Remove the grease from the thread (5:1) of the arms (5:2) with trichlorethylene (care must be
taken when using any substance or chemical that can be harmful, refer to the manufacturer's
information and/or a Health & Safety "Risk Assessment") and apply some Loctite
an equivalent industrial bonding adhesive on the thread.

Screw the arms into the central hub, turn them clockwise and tighten them firmly with the help of
a strap tube-wrench.

For each of the arms, fix the conic-end screw (5:3) and tighten it firmly. The screws are supplied
as accessories in a separate bag.

Apply a drop of Loctite
to lock the conic-end screw (5:3).
 Automatic Systems
ST. STEEL ARM -/0208/172
LENGTH 480MM
Fig. 5

243 (blue) on the thread of the flat-end screw (5:4) and tighten this firmly
TR490-NInstall-EN
5:3
LOCTITE
5:4
5:2
R
243
5:1

243 (blue) or
