2.

GENERAL

2.1.

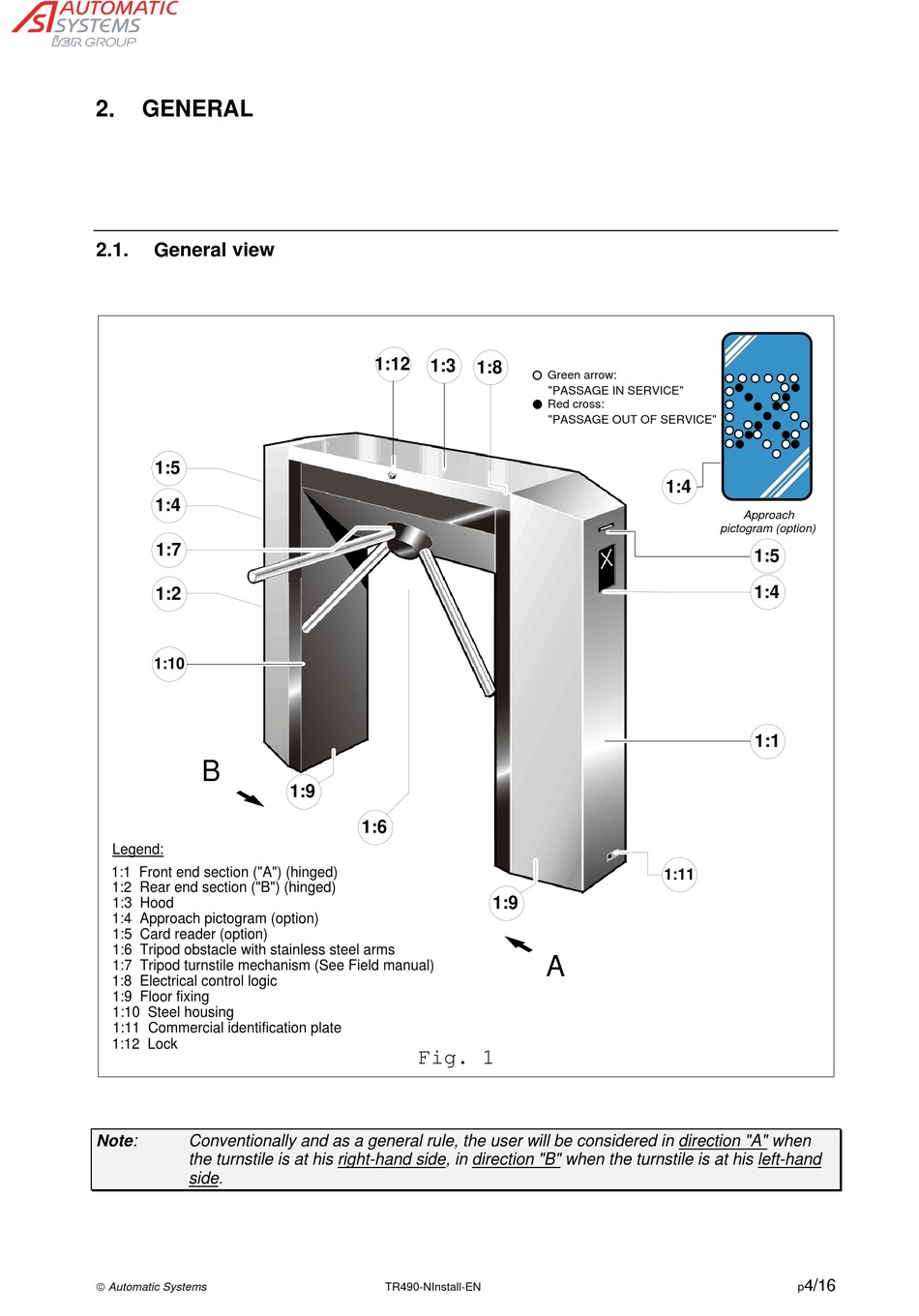

General view

1:5
1:4
1:7
1:2
1:10
B
Legend:
1:1 Front end section ("A") (hinged)
1:2 Rear end section ("B") (hinged)
1:3 Hood
1:4 Approach pictogram (option)
1:5 Card reader (option)
1:6 Tripod obstacle with stainless steel arms
1:7 Tripod turnstile mechanism (See Field manual)
1:8 Electrical control logic
1:9 Floor fixing
1:10 Steel housing
1:11 Commercial identification plate
1:12 Lock
Note: Conventionally and as a general rule, the user will be considered in direction "A" when
the turnstile is at his right-hand side, in direction "B" when the turnstile is at his left-hand
side.
 Automatic Systems
1:12
1:3
1:9
1:6
Fig. 1
TR490-NInstall-EN
1:8
Green arrow:
"PASSAGE IN SERVICE"
Red cross:
"PASSAGE OUT OF SERVICE"
1:9
A
1:4
Approach
pictogram (option)
1:5
1:4
1:1
1:11
4/16
