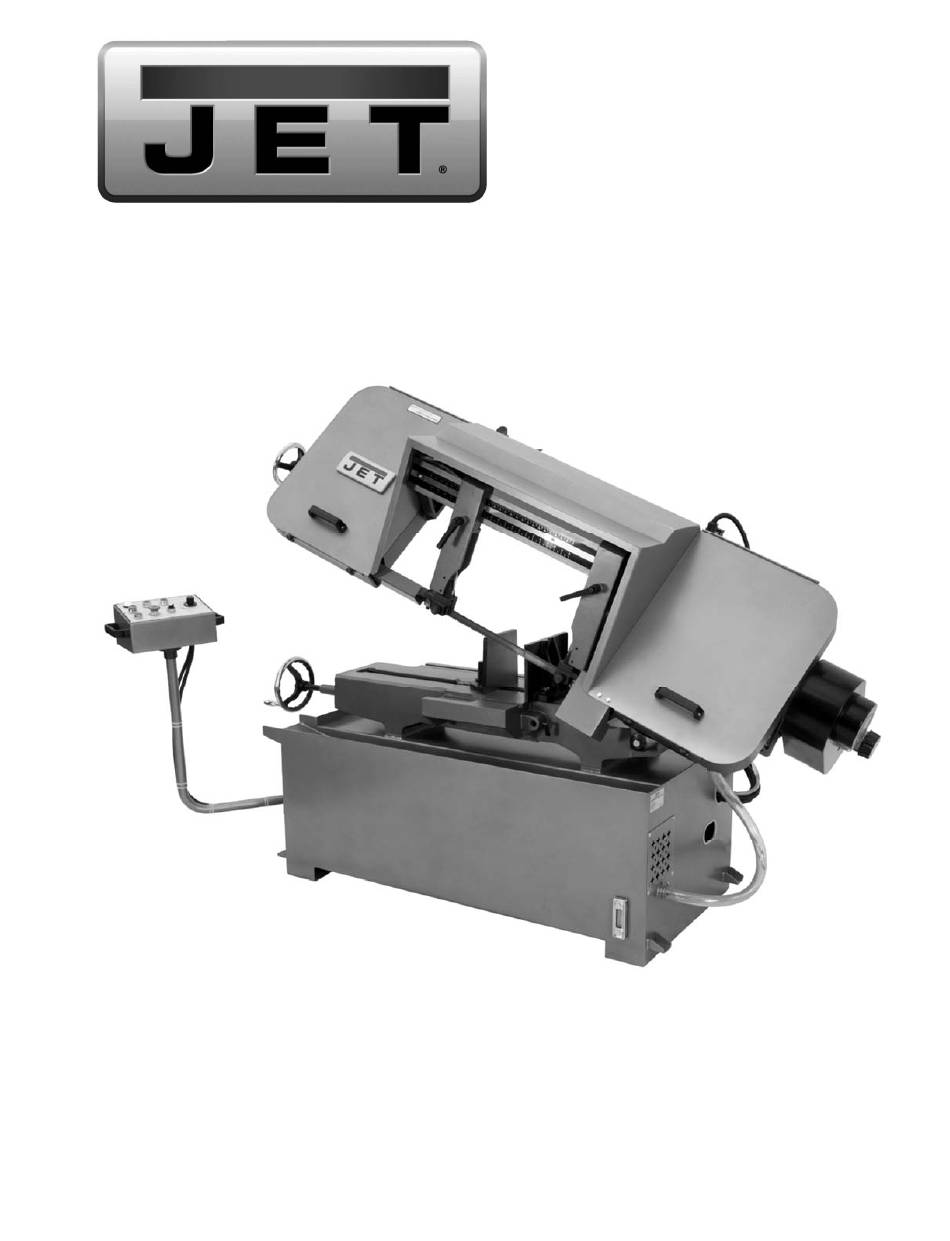

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 12 x 20-inch Semi-Automatic Band Saw Model J-7060 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414476 Ph.: 800-274-6848 Revision D 10/2018 www.jettools.com Copyright © 2014 JET...
-
Page 2: Important Safety Instructions
20. Never modify the machine without consulting Keep guards in place and in proper working JET. order. Do not operate the machine with guards removed. 1.2 General Electrical Cautions Avoid dangerous working environments. Do not... -
Page 3: Safety Instructions For Sawing Systems
11. Wear ear protectors (plugs or muffs) during extended periods of operation. See Figure D. 1.3 Safety Instructions for Sawing Systems 12. The workpiece, or part being sawn, must be securely clamped before the saw blade enters Always wear leather gloves when handling saw the workpiece. -
Page 4: Table Of Contents
13.1.1 J-7060 Base Assembly – Exploded View .................... 18 13.1.2 J-7060 Base Assembly – Parts List ..................... 19 13.2.1 J-7060 Saw Head Assembly – Exploded View ................... 22 13.2.2 J-7060 Saw Head Assembly – Parts List .................... 23 14.0 Electrical Connections – J-7060 Band Saw ....................26... -
Page 5: About This Machine And Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Installation/Assembly
Figure 5: Securing workpiece 7.0 Electrical connections 8.2 Adjusting vise for angle cuts JET recommends that any Loosen angle locking screw and pivot screw on wiring involving hard wiring of the saw to a left vise jaw. See Figure 6. -
Page 7: Workstop
Turn clamping handwheel clockwise until left be made to increase blade life. To change the blade, vise jaw is parallel with workpiece. Tighten pivot refer to sect. 11.4. To adjust blade tracking, refer to screw and angle locking screw on left vise jaw. the following procedures. -
Page 8: Blade Guide Bearing Adjustment
Turn the single hex adjustment screw so that Position the bearing by turning the bushing. Set blade starts to move away from shoulder of the bearing in contact with blade then back it off wheel; then immediately turn the single hex very slightly so that it will still turn by hand. -
Page 9: Limit Switch Adjustment
Rotate the bar stock 180 degrees so that the mark you made is now at the bottom of the cut. Make a cut through the bar stock. Use a micrometer to measure the thickness variation of the disk you have cut from the bar stock. -
Page 10: Coolant Flow
long range production task, or are required to cut some of the more exotic materials. 10.4 Controls The operating controls for the saw are provided in a control panel on the left side of the machine. The control panel is mounted on a pivoting tube. The pivoting tube allows the operator to position the control panel in a convenient location. -
Page 11: Setting Blade Speed
• When saw head is being lowered to cut a Blade guide support adjustment: used to set workpiece, the saw blade drive motor must be distance between the saw blade guide bearing started before lowering blade against as required by the size of the workpiece. workpiece. -
Page 12: Blade Selection
Lead screw: Lubricate with light oil monthly (see However, the following procedure will be exploded figure, section 13.1.1). adequate for break-in of JET-supplied blades on Hydraulic cylinder pivot: Lubricate with light oil lower alloy ferrous materials. every 6 months (see exploded figure, section Clamp a round section workpiece in the vise. -
Page 13: Servicing Hydraulic Oil
Gear box: check oil once a year. Remove blade guard mounted to left blade guide support. 10. Change coolant on a frequency appropriate to the type of coolant being used. Oil based Always wear leather gloves coolants can sour. Refer to coolant supplier’s when handling saw blade to avoid injury instructions for change frequency. -
Page 14: Replacing Drive Motor
11.6 Replacing drive motor 11.9 Adjusting blade guides Disconnect motor from all electrical power. The band saw has adjustable blade guide supports Unplug the motor if it is plugged into a socket. (see Figure 17). These allow you to set the blade Shut off the power to the branch and remove guides for varying widths of workpieces. -
Page 15: Replacing Guide Bearings
Adjust outermost blade guide using adjustment Install replacement brush and secure with knob. Set the guide so it just contacts the side screw, spring washer and washer. of the blade. Close blade cover and secure with four knobs. 11.11 Replacing guide bearings Remove cap screw from bearing being replaced. -
Page 16: Troubleshooting J-7060 Band Saw
12.0 Troubleshooting J-7060 Band Saw Symptom Possible Cause Correction Excessive blade Material loose in vise. Clamp work securely. breakage Incorrect speed or feed. Check machinist’s handbook for speed/feed appropriate for the material being cut. Teeth too coarse for material. Check machinist’s handbook for recommended blade type. -
Page 17: Replacement Parts
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 18: J-7060 Base Assembly - Exploded View
13.1.1 J-7060 Base Assembly – Exploded View... -
Page 19: J-7060 Base Assembly - Parts List
Base Assembly: Electrical components 13.1.2 J-7060 Base Assembly – Parts List Index No Part No Description Size 1 ....5512120 ....Bolt, Hex Cap............M12x35 ......1 2 ....5512121 ....Washer, Lock ............M12 ....... 1 3 ....5512122 ....Pin........................2 4 .... - Page 20 Index No Part No Description Size 41 ....5512153 ....Shaft, Pivot ....................1 42 ....5512154 ....Bearing, Needle ............CB3020 ......1 43 ....5512155 ....Bolt, Hex Cap............M8x25 ......1 44 ....5512156 ....Washer, Lock ............M8 ......... 1 45 ....
- Page 21 Index No Part No Description Size 103 .... J-5512205 ....Bracket, Stop ....................1 104 .... 5512206 ....Handle, Lock ....................1 105 .... 5512207 ....Stop, Work ..................... 1 106 .... 5512208 ....Rod, Stop ....................... 1 107 ....
-
Page 22: J-7060 Saw Head Assembly - Exploded View
13.2.1 J-7060 Saw Head Assembly – Exploded View... -
Page 23: J-7060 Saw Head Assembly - Parts List
13.2.2 J-7060 Saw Head Assembly – Parts List Index No Part No Description Size 146 .... 5512248 ....Thrust Bearing ............51194NJK ....1 147 .... 5512249 ....Tension Indicator ................... 1 148 .... 5512250 ....Flat Washer ....................1 149 .... - Page 24 Index No Part No Description Size 208 .... 5512167 ....Flat Washer ............. M8 ....... 11 209 .... 5512156 ....Lock Washer ............M8 ....... 15 210 .... 5512304 ....Seat, Wire Brush.................... 1 211 .... 5512680 ....Brush, Wire ....................1 212 ....
- Page 25 274 .... J-7060-274 ....Metal Clamp............. 32mm ......2 275 .... J-7060-275 ....Hose ................ 1/4” ........ 2 276 .... J-7060-276 ....Tube, Copper ............1/4” ........ 2 277 .... TS-1490081 ....Hex Cap Screw ............M8x45 ......4 278 .... TS-1540061 ....Hex Nut ..............M8 ......... 4 279 ....
-
Page 26: Electrical Connections - J-7060 Band Saw
14.0 Electrical Connections – J-7060 Band Saw... -
Page 27: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 28 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
