Model Number Identification

Refrigerant Type
X = R−410A
Unit Type
P = Heat Pump
G= Green Technology
Series

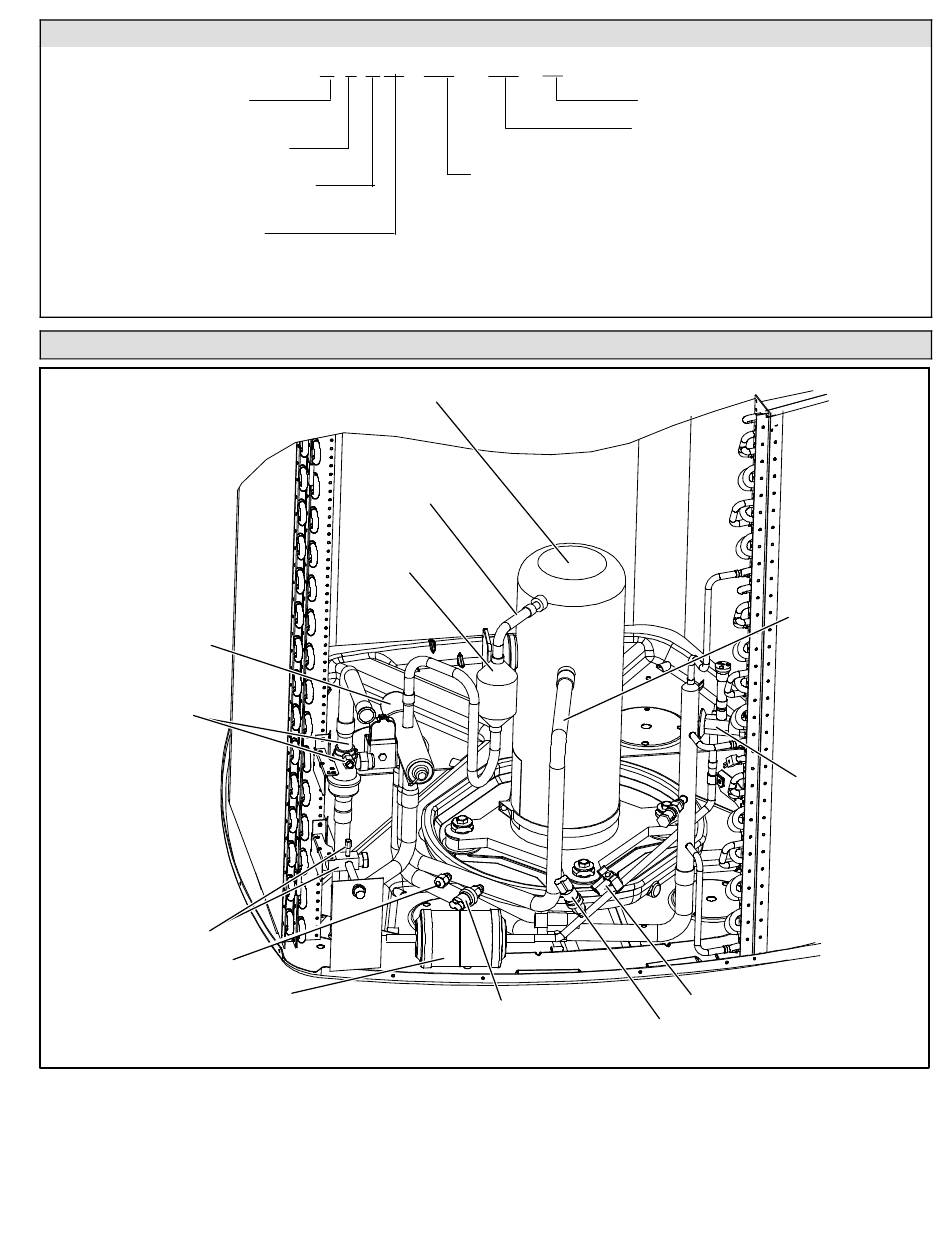

Typical Parts Arrangement
SOUND DOME COVER (SEE SOUND REDUCTION
COVER ON PAGE 55 FOR FURTHER DETAILS)
REVERSING VALVE
VAPOR VALVE AND
GAUGE PORT
LIQUID VALVE AND
GAUGE PORT
TRUE SUCTION LINE PORT
BI−FLOW FILTER DRIER
X P G 15 036 − − 230
Nominal Cooling Capacity
024 = 2 tons
030 = 2.5 tons
036 = 3 tons
043 = 3.5 tons
048 = 4 tons
060 = 5 tons
DISCHARGE LINE
MUFFLER
LOW PRESSURE SWITCH
Figure 1. Typical Parts Arrangement
Page 3
−2
Minor Revision Number
Voltage
230 = 208/230V−1ph−60hz
CRANKCASE HEATER THERMOSTAT
HIGH PRESSURE SWITCH
TRUE SUCTION
LINE
CHECK EXPANSION
VALVE
XPG15 SERIES
