E2013 Lennox Industries Inc.
Dallas, Texas, USA
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
The State of California has determined that this product
may contain or produce a chemical or chemicals, in very
low doses, which may cause serious illness or death. It
may also cause cancer, birth defects, or reproductive
harm.
General
This XP16 outdoor heat pump is designed for use with
HFC-410A refrigerant only. This unit must be installed with
an approved indoor air handler or coil. See the Lennox
XP16 Product Specifications bulletin (EHB) for approved
indoor component match ups.
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
STEP 1 -- SETTING THE UNIT -- Clearances
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
See
Í Í Í Í Í Í Í Í Í Í Í Í Í
NOTES
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
Í Í Í Í Í Í Í Í Í Í Í Í Í
6/2013
*2P62013*
Downloaded from
ManualsNet.com
WARNING
See NOTES
See
NOTES
Control
See NOTES
Box
search engine

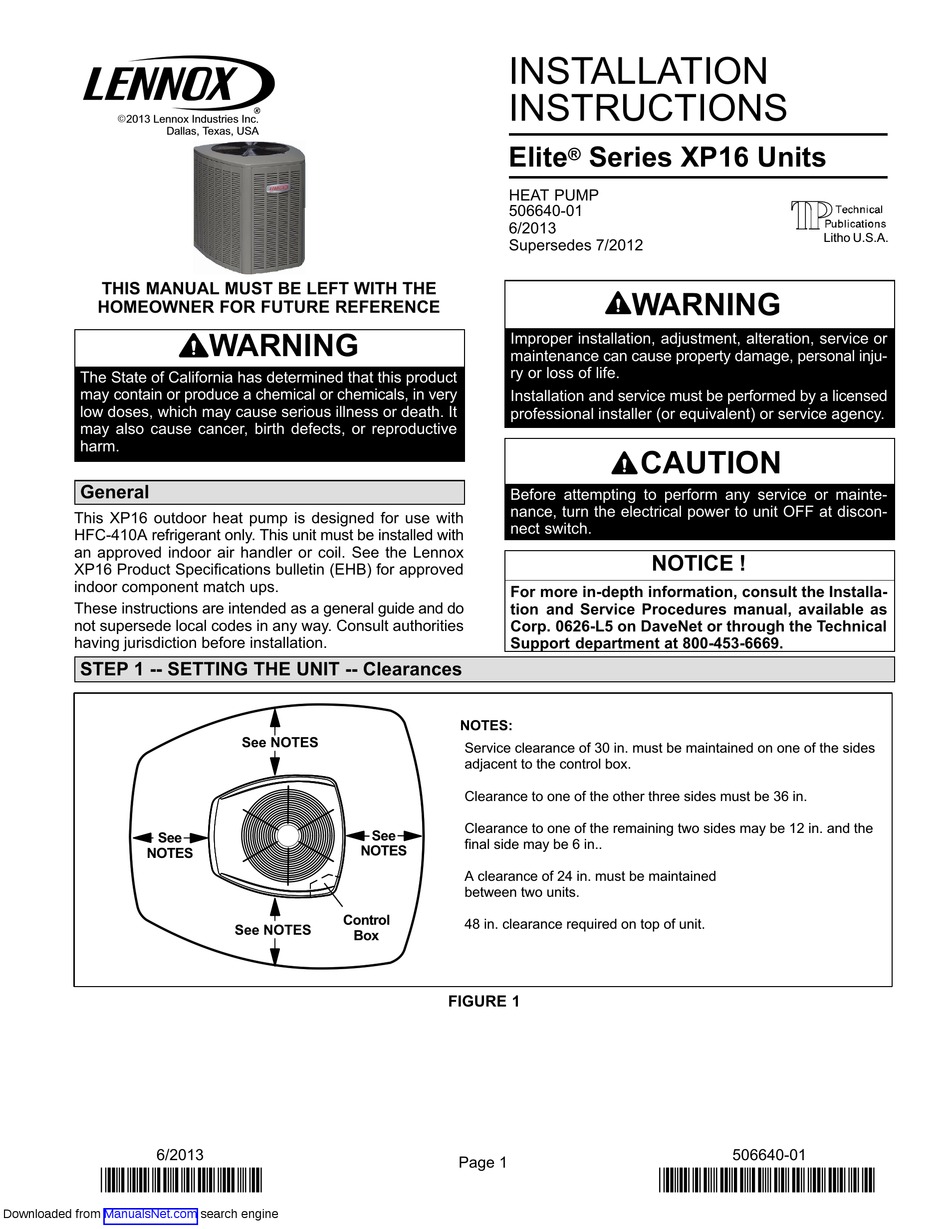

INSTALLATION
INSTRUCTIONS
Elite
Series XP16 Units
®
HEAT PUMP
506640-01
6/2013
Supersedes 7/2012
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal inju
ry or loss of life.
Installation and service must be performed by a licensed
professional installer (or equivalent) or service agency.
Before attempting to perform any service or mainte
nance, turn the electrical power to unit OFF at discon
nect switch.
For more in-depth information, consult the Installa
tion and Service Procedures manual, available as
Corp. 0626-L5 on DaveNet or through the Technical
Support department at 800-453-6669.
NOTES:
Service clearance of 30 in. must be maintained on one of the sides
adjacent to the control box.
Clearance to one of the other three sides must be 36 in.
Clearance to one of the remaining two sides may be 12 in. and the
final side may be 6 in..
A clearance of 24 in. must be maintained
between two units.
48 in. clearance required on top of unit.
FIGURE 1
Page 1
WARNING
CAUTION
NOTICE !
506640-01
*P506640-01*
Litho U.S.A.
