Page 1: Operating Instructions

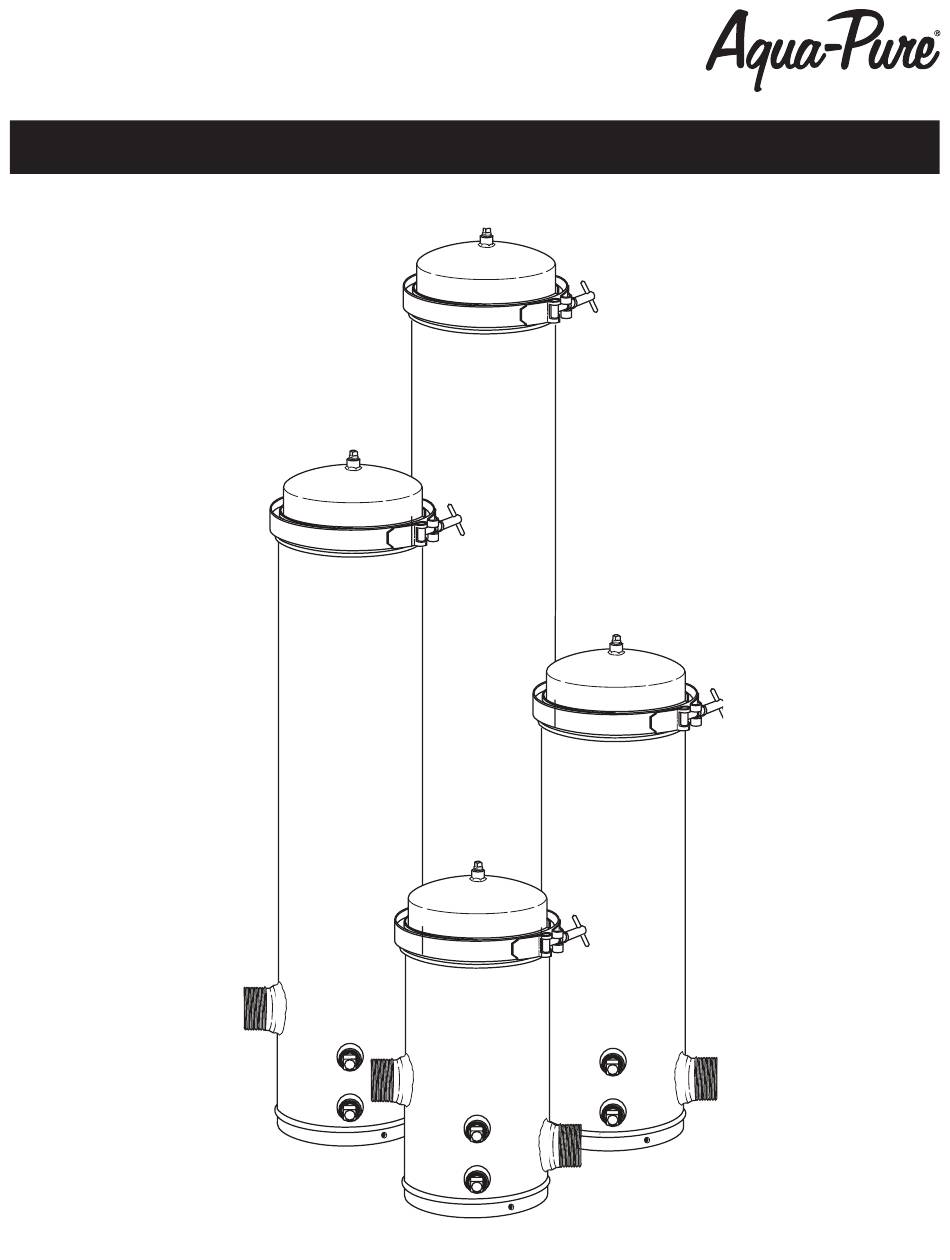

INSTR3010 0406 Installation and Operating Instructions Installation Instructions for SS EPE-316L Series... -
Page 2: Specifications

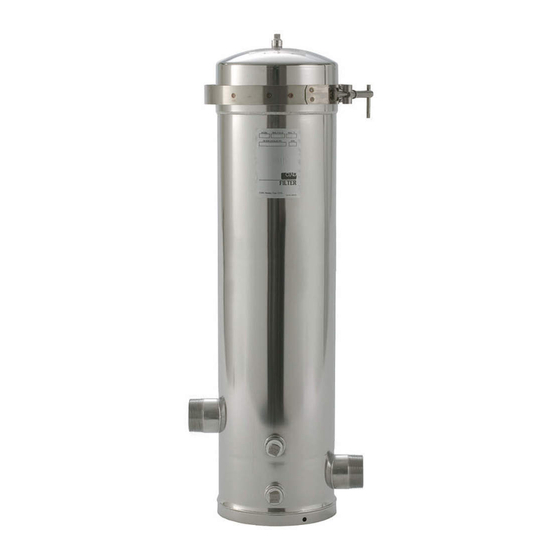

Congratulations on your purchase of this Aqua-Pure® high flow, single housing filtration system. This system is ideal for large homes, restaurants, schools, clubs, farms, camps, and institutions of all types. This system is ideal for locations where flow rates range up to 288 gallons per minute (1,090 lpm). - Page 3 HOUSING WALL VALVE VALVE DRAINS 2 VALVES (EACH DRAIN REQUIRES A VALVE) MAIN DRAIN WALL HOUSING VALVE VALVE DRAIN DRAIN FAUCETS Figure 1...
-
Page 4: Installation
SS4-316L, SS8-316L, SS12-316L and SS20-316L Filter Housing Series Installation IMPORTANT: Failure to follow instructions may result in voidance of warranty. 1)Installing the Filter Housing (SS4-316L, SS8-316L, SS12-316L and SS20-316L Filter Housing Series) The filter housing should be placed on 8” (20 cm) cinder or cement blocks to permit ease of draining. Locate the inlet (marked as “IN” and Outlet (marked as “OUT”) connections on the housing cylinder. - Page 5 Slowly and completely open the Inlet valve and the lower drain valve until the water runs clear. After the water runs clear, close the lower drain valve and slowly and completely open the outlet valve. Your Aqua-Pure filtra- tion system is now operating.
- Page 6 SS24-316L, SS36-316L Filter Housing Series 1)Installing the Filter Housing (SS24-316L and SS36-316L Filter Housing Series) Locate the Inlet (marked as “IN” on the flange) and Outlet (marked as “out” on the flange) connections on the housing cylinder. Connect the water supply line piping to the Inlet connection and the filtered water piping serving the building to the Outlet connection. Shut off valves are to be installed on each side of the housing (see Note).
-
Page 7: Starting Operation
Slowly and completely open the Inlet valve and lower drain valve until the water runs clear. After the water runs clear, close the lower drain valve and slowly and completely open the outlet valve. Your Aqua-Pure filtration system is now operating. - Page 8 Please refer to the Warranty Card provided with the product for details. CUNO Incorporated 400 Research Parkway Meriden, CT 06450, USA CUNO and Aqua-Pure are trademarks of 3M Company used under license. Toll Free: 1-800-222-7880 Worldwide: 203-237-5541 Fax: 203-238-8701 www.aquapure.com •...
