AP9100 Water Filter System
Installation and operating instructions
Not even an Aqua-Pure fi lter can make unsafe water safe
®
The AP9100 + water fi lter system should only be used on water that is
microbiologically safe – that is, water that has been adequately chlorinated
or disinfected. Additional equipment (such as a chlorine injection system or
an ultraviolet steriliser) will be required for unsafe water.
It works best when it's used
If the Aqua-Pure water fi lter system has not been used for more than one
®
day, you will need to fl ush 1 to 2 litres of water through the system before
using the water. The AP9100 + requires a minimum water supply pressure
of 172 kPa (25 psi) and not exceed a maximum water pressure of 862 kPa
(125 psi). A 650 kPa (94 psi) pressure limiting valve must be installed on
the inlet side of this system (see below).
What a valve
The AP9100 + water fi lter system has been supplied with an Aqua-Pure
650 kPa Multi-Function Control Valve (MFCV) as standard equipment.
This valve must be installed as detailed in the installation drawings and
instructions, to provide:
• Flow restriction
• 650 kPa pressure limiting
• Dual check backfl ow prevention
• Anti-hammer protection to the fi lter system
This valve is fi tted with a Particle Removal Screen on the inlet side to protect
the intricate mechanism from debris that may be in the water supply. This
screen must remain in place at all times. Failure to comply with these
requirements will void the warranty.
Have a change of heart every 12 months

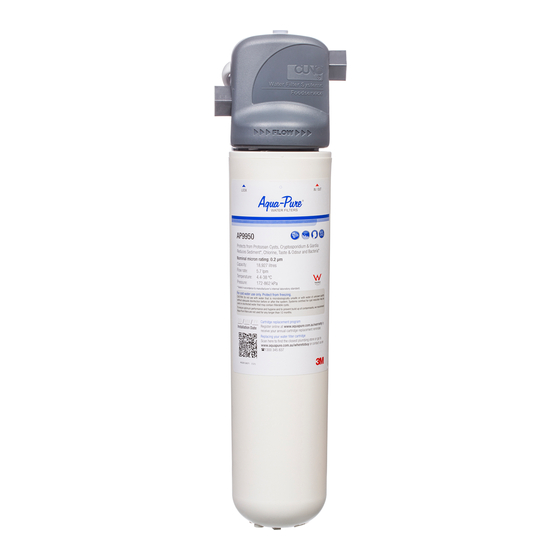

The heart of an AP9100 + fi lter system is the AP9950 fi lter cartridge, which
has a recommended maximum life of 12 months. The life and performance
of a cartridge may vary depending on the volume and quality of the incoming
water supply being fi ltered. Your cartridge may need replacing earlier than
12 months if you notice a reduced fl ow from the mixer tap, or the return of
an unpleasant taste/odour to the fi ltered water.
Worth doing...worth doing properly
Installation of the AP9100 + fi lter system must comply with any existing
state or local plumbing codes, some of which require installation by a
licensed plumber. For correct operation of this appliance, it is essential that
these installation and operating instructions be strictly observed.
WARNING: For correct operation of this appliance, it is essential that these
installation and operating instructions be strictly observed.
CAUTION: Do not use with water that is microbiologically unsafe or with
water of unknown quality without adequate disinfection before or after the
system. Systems certifi ed for cyst reduction may be used on disinfected
water that may contain fi lterable cysts.
PREPARATION

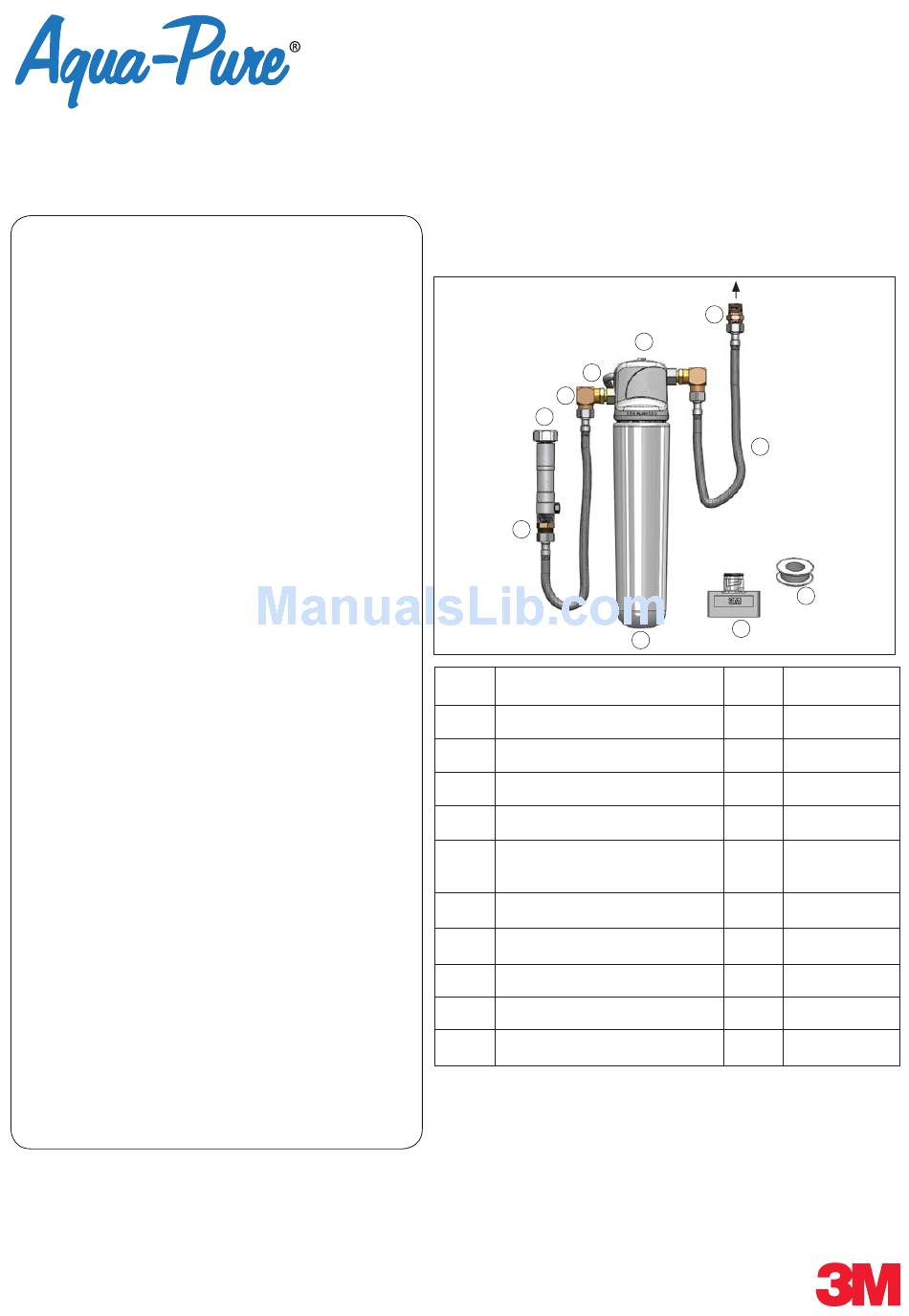

1. Check your Aqua-Pure AP9100 + component identifi cation and content checklist:
6
3
®
4
REF DESCRIPTION
1 3M VH3 3/8" NPTF Filter Head
2 AP9950 Replacement Cartridge
3 98210 MFCV 650 kPa
4 1/2" BSP X 1/4" BSP Brass Nipple
5 Braided Hose 10mm
1/2"BSPF x 1/2"BSPF 1.0m
6 1/2"BSPM -1/2"BSPF Brass Elbow
7 3/8" NPT - 1/2" NPT Brass Nipple
8 1/2" BSP Brass Nipple
9 NEP A3 Bypass Plug
10 Thread Tape
Connect to cold water line
of existing mixer tap
8
1
7
5
9
2
QTY
1
1
1
1
2
2
2
1
1
1
10
PART NO
70020021120
AK200125909
AK200094782
AK200093396
AK200095474
AK200094428
AK200119308
AK200093404
70020160308
AK200095102
