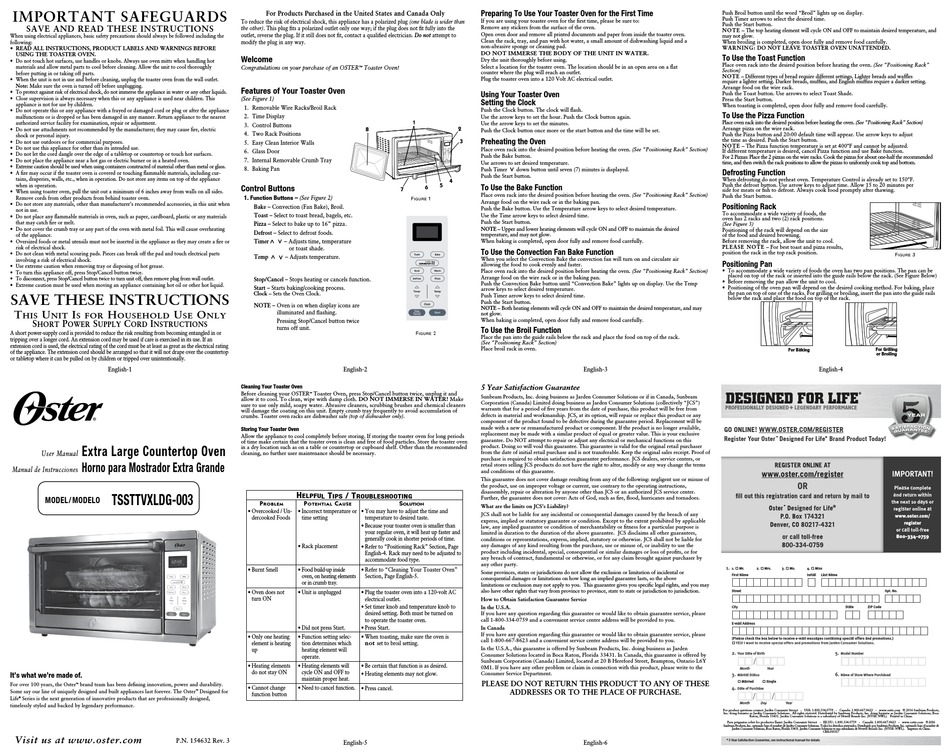

IMPORTANT SAFEGUARDS
SAVE AND READ THESE INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be followed including the
following:
• READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE
USING THE TOASTER OVEN.
• Do not touch hot surfaces, use handles or knobs. Always use oven mitts when handling hot
materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly
before putting in or taking off parts.
• When the unit is not in use and before cleaning, unplug the toaster oven from the wall outlet.
Note: Make sure the oven is turned off before unplugging.
• To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.
• Close supervision is always necessary when this or any appliance is used near children. This
appliance is not for use by children.
• Do not operate this or any appliance with a frayed or damaged cord or plug or after the appliance
malfunctions or is dropped or has been damaged in any manner. Return appliance to the nearest
authorized service facility for examination, repair or adjustment.
• Do not use attachments not recommended by the manufacturer; they may cause fire, electric
shock or personal injury.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for other than its intended use.
• Do not let the cord dangle over the edge of a tabletop or countertop or touch hot surfaces.
• Do not place the appliance near a hot gas or electric burner or in a heated oven.
• Extreme caution should be used when using containers constructed of material other than metal or glass.
• A fire may occur if the toaster oven is covered or touching flammable materials, including cur-
tains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance
when in operation.
• When using toaster oven, pull the unit out a minimum of 6 inches away from walls on all sides.
Remove cords from other products from behind toaster oven.
• Do not store any materials, other than manufacturer’s recommended accessories, in this unit when
not in use.
• Do not place any flammable materials in oven, such as paper, cardboard, plastic or any materials
that may catch fire or melt.
• Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating
of the appliance.
• Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or
risk of electrical shock.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts
involving a risk of electrical shock.
• Use extreme caution when removing tray or disposing of hot grease.
• To turn this appliance off, press Stop/Cancel button twice.
• To disconnect, press Stop/Cancel button twice to turn unit off, then remove plug from wall outlet.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquid.
SAVE THESE INSTRUCTIONS
T
U
i
h
U
o
his
niT
s for
oUsehold
se
nly
s
P
s
C
i
horT
ower
UPPly
ord
nsTrUCTions
A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or
tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an
extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating
of the appliance. The extension cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over unintentionally.
English-1
Extra Large Countertop Oven
User Manual
Horno para Mostrador Extra Grande
Manual de Instrucciones
TSSTTVXLDG-003
MODEL/ MODELO
It’s what we’re made of.
For over 100 years, the Oster
brand team has been defining innovation, power and durability.
™
Some say our line of uniquely designed and built appliances last forever. The Oster
Designed for
™
Life
Series is the next generation of innovative products that are professionally designed,
®
timelessly styled and backed by legendary performance.
Visit us at www.oster.com
P.N. 154632 Rev. 3
For Products Purchased in the United States and Canada Only
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than
the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
modify the plug in any way.
Welcome
Congratulations on your purchase of an OSTER
Toaster Oven!
™
Features of Your Toaster Oven
(See Figure 1)
1. Removable Wire Racks/Broil Rack
2. Time Display
1
3. Control Buttons
2
8
4. Two Rack Positions
3
5. Easy Clean Interior Walls
6. Glass Door
7. Internal Removable Crumb Tray
8. Baking Pan
4
5
Control Buttons
6
7
1. Function Buttons – (See Figure 2)
F
1
igure
Bake – Convection (Fan Bake), Broil.
Toast – Select to toast bread, bagels, etc.
Pizza – Select to bake up to 16” pizza.
Defrost – Select to defrost foods.
Timer
– Adjusts time, temperature
or toast shade.
Temp
– Adjusts temperature.
Stop/Cancel – Stops heating or cancels function.
Start – Starts baking/cooking process.
Clock – Sets the Oven Clock.
NOTE – Oven is on when display icons are
illuminated and flashing.
Pressing Stop/Cancel button twice
turns off unit.
F
2
igure
English-2
Cleaning Your Toaster Oven
Before cleaning your OSTER
Toaster Oven, press Stop/Cancel button twice, unplug it and
™
allow it to cool. To clean, wipe with damp cloth. DO NOT IMMERSE IN WATER! Make
sure to use only mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners
will damage the coating on this unit. Empty crumb tray frequently to avoid accumulation of
crumbs. Toaster oven racks are dishwasher safe (top of dishwasher only).
Storing Your Toaster Oven
Allow the appliance to cool completely before storing. If storing the toaster oven for long periods
of time make certain that the toaster oven is clean and free of food particles. Store the toaster oven
in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended
cleaning, no further user maintenance should be necessary.
P
P
C
S
roblem
otential
auSe
olution
• Overcooked / Un-
• Incorrect temperature or
• You may have to adjust the time and
dercooked Foods
time setting
temperature to desired taste.
• Because your toaster oven is smaller than
your regular oven, it will heat up faster and
generally cook in shorter periods of time.
• Rack placement
• Refer to “Positioning Rack” Section, Page
English-4. Rack may need to be adjusted to
accommodate food type.
• Burnt Smell
• Food build-up inside
• Refer to “Cleaning Your Toaster Oven”
Section, Page English-5.
oven, on heating elements
or in crumb tray.
• Oven does not
• Unit is unplugged
• Plug the toaster oven into a 120-volt AC
turn ON
electrical outlet.
• Set timer knob and temperature knob to
desired setting. Both must be turned on
to operate the toaster oven.
• Did not press Start.
• Press Start.
• Only one heating
• Function setting selec-
• When toasting, make sure the oven is
element is heating
tion determines which
not set to broil setting.
up
heating element will
operate.
• Heating elements
• Heating elements will
• Be certain that function is as desired.
do not stay ON
cycle ON and OFF to
• Heating elements may not glow.
maintain proper heat.
• Cannot change
• Need to cancel function.
• Press cancel.
function button
English-5
Preparing To Use Your Toaster Oven for the First Time
If you are using your toaster oven for the first time, please be sure to:
Remove any stickers from the surface of the oven.
Open oven door and remove all printed documents and paper from inside the toaster oven.
Clean the rack, tray, and pan with hot water, a small amount of dishwashing liquid and a
non-abrasive sponge or cleaning pad.
DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.
Dry the unit thoroughly before using.
Select a location for the toaster oven. The location should be in an open area on a flat
counter where the plug will reach an outlet.
Plug the toaster oven into a 120 Volt AC electrical outlet.
Using Your Toaster Oven
Setting the Clock
Push the Clock button. The clock will flash.
Use the arrow keys to set the hour. Push the Clock button again.
Use the arrow keys to set the minutes.
Push the Clock button once more or the start button and the time will be set.
Preheating the Oven
Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
Push the Bake button.
Use arrows to set desired temperature.
Push Timer
down button until seven (7) minutes is displayed.
Push the Start button.
To Use the Bake Function
Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
Arrange food on the wire rack or in the baking pan.
Push the Bake button. Use the Temperature arrow keys to select desired temperature.
Use the Time arrow keys to select desired time.
Push the Start button.
NOTE – Upper and lower heating elements will cycle ON and OFF to maintain the desired
temperature, and may not glow.
When baking is completed, open door fully and remove food carefully.
To Use the Convection Fan Bake Function
When you select the Convection Bake the convection fan will turn on and circulate air
allowing the food to cook evenly and faster.
Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
Arrange food on the wire rack or in the baking pan.
Push the Convection Bake button until “Convection Bake” lights up on display. Use the Temp
arrow keys to select desired temperature.
Push Timer arrow keys to select desired time.
Push the Start button.
NOTE – Both heating elements will cycle ON and OFF to maintain the desired temperature, and may
not glow.
When baking is completed, open door fully and remove food carefully.
To Use the Broil Function
Place the pan into the guide rails below the rack and place the food on top of the rack.
(See “Positioning Rack” Section)
Place broil rack in oven.
English-3
5 Year Satisfaction Guarantee
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam
Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”)
warrants that for a period of five years from the date of purchase, this product will be free from
defects in material and workmanship. JCS, at its option, will repair or replace this product or any
component of the product found to be defective during the guarantee period. Replacement will be
made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your exclusive
guarantee. Do NOT attempt to repair or adjust any electrical or mechanical functions on this
product. Doing so will void this guarantee. This guarantee is valid for the original retail purchaser
from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of
purchase is required to obtain satisfaction guarantee performance. JCS dealers, service centers, or
retail stores selling JCS products do not have the right to alter, modify or any way change the terms
and conditions of this guarantee.
This guarantee does not cover damage resulting from any of the following: negligent use or misuse of
the product, use on improper voltage or current, use contrary to the operating instructions,
disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center.
Further, the guarantee does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any
express, implied or statutory guarantee or condition. Except to the extent prohibited by applicable
law, any implied guarantee or condition of merchantability or fitness for a particular purpose is
limited in duration to the duration of the above guarantee. JCS disclaims all other guarantees,
conditions or representations, express, implied, statutory or otherwise. JCS shall not be liable for
any damages of any kind resulting from the purchase, use or misuse of, or inability to use the
product including incidental, special, consequential or similar damages or loss of profits, or for
any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by
any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied guarantee lasts, so the above
limitations or exclusion may not apply to you. This guarantee gives you specific legal rights, and you may
also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.
How to Obtain Satisfaction Guarantee Service
In the U.S.A.
If you have any question regarding this guarantee or would like to obtain guarantee service, please
call 1-800-334-0759 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this guarantee or would like to obtain guarantee service, please
call 1-800-667-8623 and a convenient service center address will be provided to you.
In the U.S.A., this guarantee is offered by Sunbeam Products, Inc. doing business as Jarden
Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this guarantee is offered by
Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton, Ontario L6Y
0M1. If you have any other problem or claim in connection with this product, please write to the
Consumer Service Department.
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE
ADDRESSES OR TO THE PLACE OF PURCHASE.
English-6
Push Broil button until the word “Broil” lights up on display.
Push Timer arrows to select the desired time.
Push the Start button.
NOTE – The top heating element will cycle ON and OFF to maintain desired temperature, and
may not glow.
When broiling is completed, open door fully and remove food carefully.
WARNING: DO NOT LEAVE TOASTER OVEN UNATTENDED.
To Use the Toast Function
Place oven rack into the desired position before heating the oven. (See “Positioning Rack”
Section)
NOTE – Different types of bread require different settings. Lighter breads and waffles
require a lighter setting. Darker breads, muffins, and English muffins require a darker setting.
Arrange food on the wire rack.
Push the Toast button. Use arrows to select Toast Shade.
Press the Start button.
When toasting is completed, open door fully and remove food carefully.
To Use the Pizza Function
Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
Arrange pizza on the wire rack.
Push the Pizza button and 20:00 default time will appear. Use arrow keys to adjust
the time as desired. Push the Start button.
NOTE – The Pizza function temperature is set at 400°F and cannot be adjusted.
If different temperature is desired, cancel Pizza function and use Bake function.
For 2 Pizzas: Place the 2 pizzas on the wire racks. Cook the pizzas for about one-half the recommended
time, and then switch the rack positions to allow the pizzas to uniformly cook top and bottom.
Defrosting Function
When defrosting do not preheat oven. Temperature Control is already set to 150°F.
Push the defrost button. Use arrow keys to adjust time. Allow 15 to 20 minutes per
side for meats or fish to defrost. Always cook food promptly after thawing.
Push the Start button.
Positioning Rack
To accommodate a wide variety of foods, the
oven has 2 racks and two (2) rack positions.
(See Figure 3)
Positioning of the rack will depend on the size
of the food and desired browning.
Before removing the rack, allow the unit to cool.
PLEASE NOTE – For best toast and pizza results,
position the rack in the top rack position.
F
3
igure
Positioning Pan
• To accommodate a wide variety of foods the oven has two pan positions. The pan can be
placed on top of the rack or inserted into the guide rails below the rack. (See Figure Below)
• Before removing the pan allow the unit to cool.
• Positioning of the oven pan will depend on the desired cooking method. For baking, place
the pan on top of one of the racks. For grilling or broiling, insert the pan into the guide rails
below the rack and place the food on top of the rack.
For Grilling
For Baking
or Broiling
English-4
DESIGNED FOR LIFE
®
DESIGNED FOR LIFE
®
PROFESSIONALLY DESIGNED ✦ LEGENDARY PERFORMANCE
PROFESSIONALLY DESIGNED ✦ LEGENDARY PERFORMANCE
GO ONLINE! WWW.OSTER.COM/REGISTER
Register Your Oster
Designed For Life
Brand Product Today!
GO ONLINE! WWW.OSTER.COM/REGISTER
™
®
Register Your Oster
Designed For Life
Brand Product Today!
™
®
IMPORTANT!
OR
OR
IMPORTANT!
Please complete
OR
OR
and return within
Please complete
the next 10 days or
and return within
™
register online at
the next 10 days or
www.oster.com/
™
register online at
register
www.oster.com/
or call toll-free
register
800-334-0759
or call toll-free
800-334-0759
1.
1. Mr.
2. Mrs.
3. Ms.
4. Miss
First Name
Initial
Last Name
1.
1. Mr.
2. Mrs.
3. Ms.
4. Miss
First Name
Initial
Last Name
Street
Apt. No.
Street
Apt. No.
City
State
ZIP Code
City
State
ZIP Code
E-mail Address
E-mail Address
(Please check the box below to receive e-mail messages containing special offers and promotions.)
YES! I want to receive special offers and promotions from Jarden Consumer Solutions.
(Please check the box below to receive e-mail messages containing special offers and promotions.)
2.
5.
Your Date of Birth
Model Number
YES! I want to receive special offers and promotions from Jarden Consumer Solutions.
2.
5.
Your Date of Birth
Model Number
Month
Year
3.
6.
Marital Status
Name of Store Where Purchased
Month
Year
Married
Single
3.
6.
Marital Status
Name of Store Where Purchased
4.
Date of Purchase
Married
Single
4.
Date of Purchase
Month
Day
Year
For product questions contact: Jarden Consumer Service - USA: 1.800.334.0759 - Canada: 1.800.667.8623 - www.oster.com © 2016 Sunbeam Products,
Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca
Month
Day
Year
Raton, Florida 33431. Jarden Consumer Solutions is a subsidiary of Newell Brands Inc. (NYSE: NWL). Printed in China.
Para preguntas sobre los productos llame: Jarden Consumer Service - EE.UU.: 1.800.334.0759 - Canadá: 1.800.667.8623 - www.oster.com © 2016
Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions. Todos los derechos reservados. Distribuido por Sunbeam Products, Inc. operando bajo el nombre de
Jarden Consumer Solutions, Boca Raton, Florida 33431. Jarden Consumer Solutions es una subsidiaria de Newell Brands Inc. (NYSE: NWL). Impresso en China.
* 5 Year Satisfaction Guarantee, see instructional manual for details
CBA-010317
* 5 Year Satisfaction Guarantee, see instructional manual for details
Advertisement
Related Manuals for Oster TSSTTVXLDG-003
Summary of Contents for Oster TSSTTVXLDG-003
-
Page 1: Important Safeguards
For product questions contact: Jarden Consumer Service - USA: 1.800.334.0759 - Canada: 1.800.667.8623 - www.oster.com © 2016 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca... -
Page 2: Precauciones Importantes
• No lo use al aire libre o para fines comerciales. NOTA – El horno tostador esta prendido NOTA – Los elementos de calentamiento superior en inferior irán en ciclo de Encendido (ON) ¡Felicitaciones por su compra de un Horno Tostador OSTER ™ cuando los botones del panel estan •...
