Figure 1-3 shows the operations panel LEDs, which can alert you to errors and
conditions that require your attention. Table 1-2 describes the LEDs. Report any
serious problems to your array support provider.
For information about other array LEDs, see Interpreting Disk LEDs on page 2-2,
Interpreting Control Module LEDs on page 3-2, and Interpreting the LEDs on
page 4-1.
Table 1-2: Operations Panel Descriptions
Item Status
Off
Green
Power LED
Off
Flashing orange Administrator enabled the array locator function.
Array locator
LED
N/A
Identifier
switch

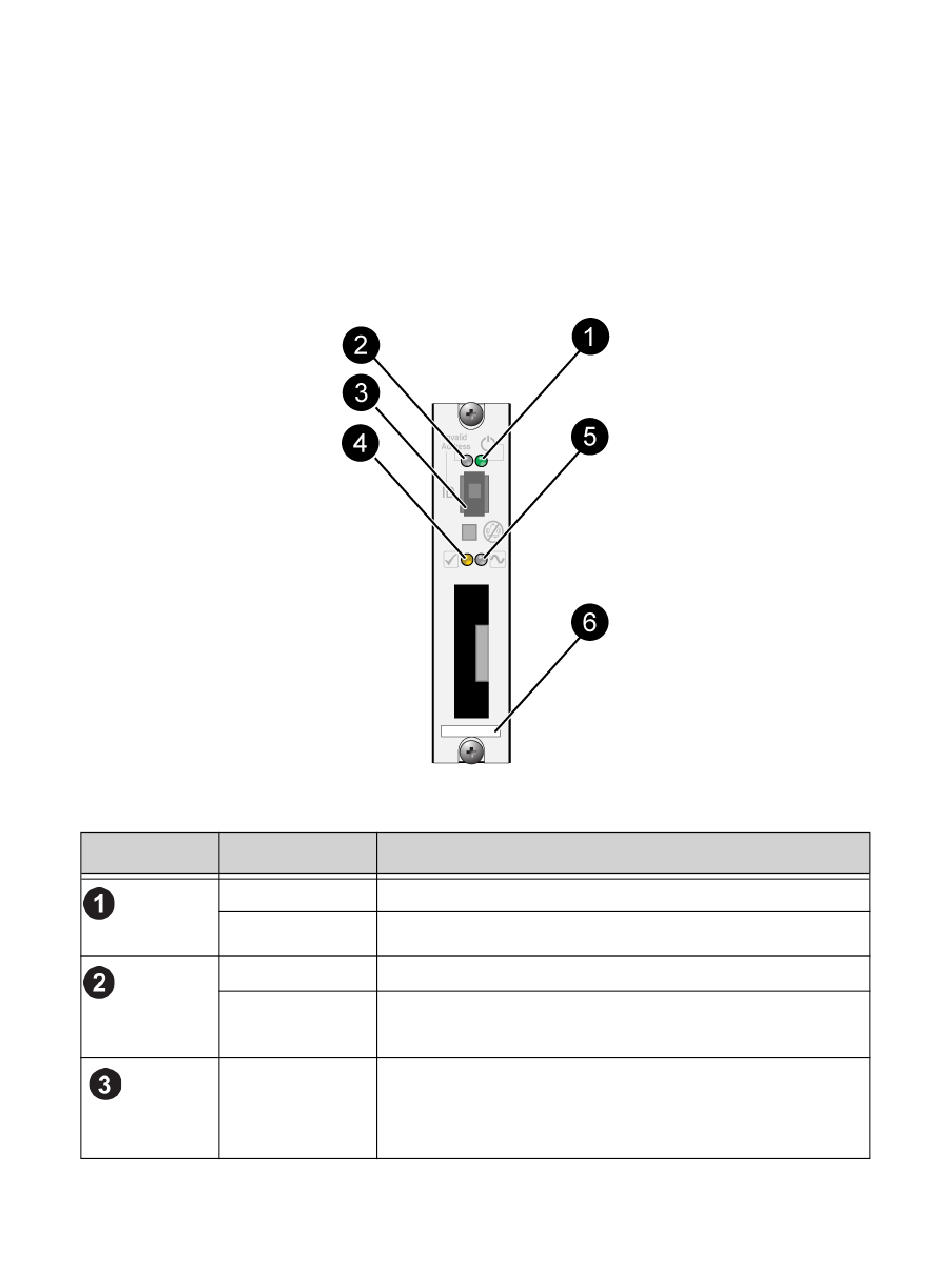

Figure 1-3: Operations Panel
Description
No power.
Power.
No power or normal condition.
Not used.
Basic Array Information
1–3
