Bosch EMMIT User Manual

Bosch EMMIT User Manual

Enhanced multi media interface tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

ss02272

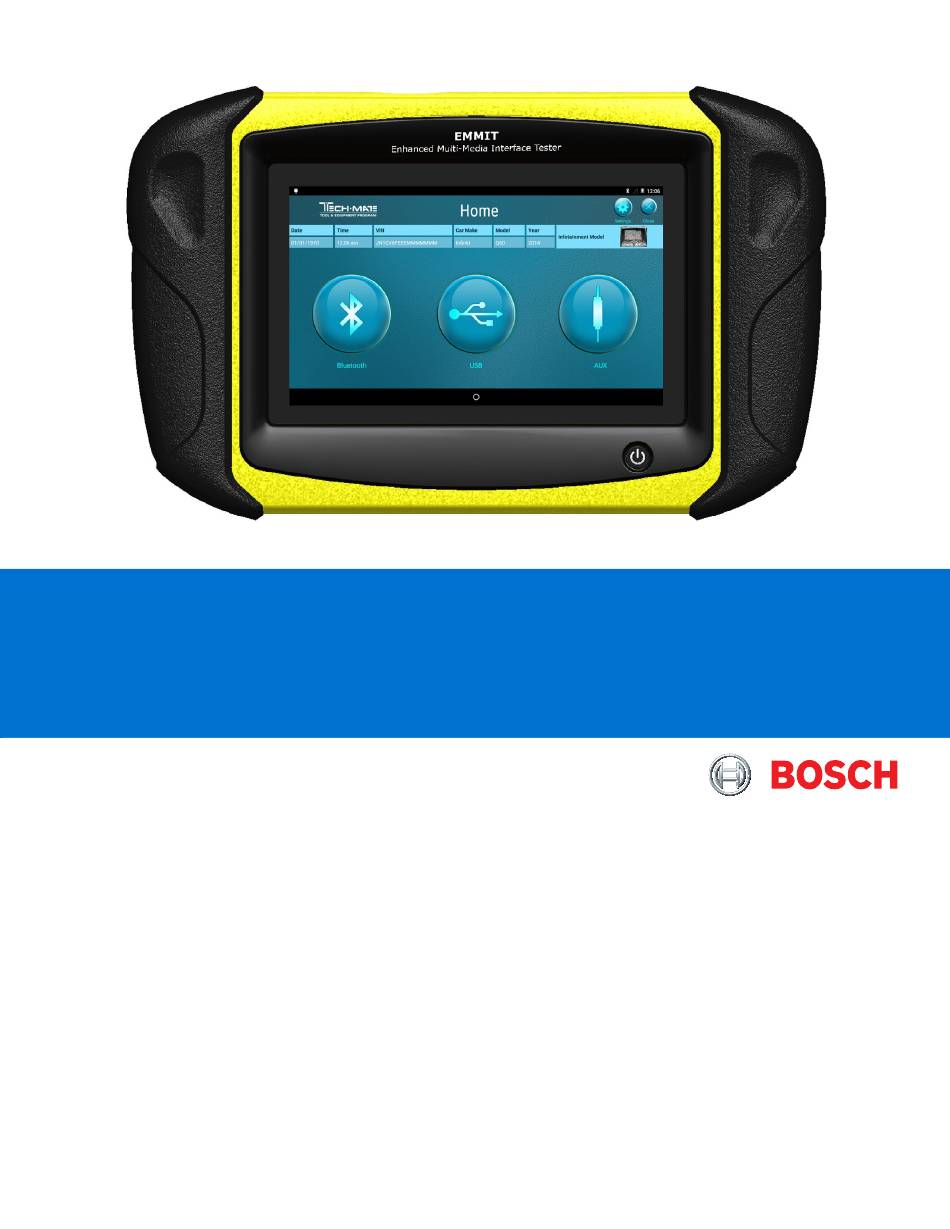

EMMIT User Manual
Enhanced Multi Media Interface Tester
en User Manual
577709

Advertisement

Table of Contents
loading

Related Manuals for Bosch EMMIT

Summary of Contents for Bosch EMMIT

  • Page 1 EMMIT User Manual Enhanced Multi Media Interface Tester en User Manual 577709...
  • Page 2 © 2016 Bosch Automotive Service Solutions All rights reserved. The information, specifications, and illustrations in this guide are based on the latest information available at the time of printing. Bosch Automotive Service Solutions reserves the right to make changes at any time, without notice.

  • Page 3: Table Of Contents

    Introduction ........4 EMMIT ........5 EMMIT Ports .

  • Page 4: Safety Definitions

    • Set the parking brake and block the wheels result in fi re, electric shock, or personal injury. before testing or repairing a vehicle. It is • Do not operate the EMMIT with a damaged especially important to block the wheels on cord or connector. Replace damaged cords front-wheel drive vehicles because the parking and connectors immediately.
  • Page 5 User Manual | EMMIT | 3 | en a safety hazard or subjected to damage or connector while the ignition is on. Powertrain stress. Control Module (PCM) damage may result. • Use only batteries that are approved for use with this tool. Use of other types may increase the risk of fire or explosion.

  • Page 6: General Information

    The EMMIT is a ruggedized touchscreen tablet equipped with the Android operating system. It is designed to dia- gnose Infotainment systems using the vehicle‘s diagnostic/communication links. The EMMIT has several modes of operation which can be found on the home screen. These modes will be explained in this manual.

  • Page 7: Emmit

    The EMMIT is a ruggedized touchscreen tablet equip- The power button has three functions ped with the Android operating system. The power button is located on the lower right front of the EMMIT. a. ON: Press the power button to turn the EMMIT ss02278 b.

  • Page 8: Software Descriptions

    Periodic updates will become available via Wi-Fi. EMMIT must be above 50% battery charge, the AC power adap- ter must be connected, and EMMIT must be connected to a Wi-Fi network to download updates. Minimize or close the app, and follow on screen prompts to comple- te the update process.

  • Page 9: Android Settings

    User Manual | EMMIT | 7 | en Android Settings 1. From the home screen, touch the Android Apps This section explains settings for customizing your scan button. tool. This scan tool is an Android device and there are 2. Touch Settings.

  • Page 10: System

    | 8 User Manual | EMMIT System Date and Time By default, your device receives date and time informati- on from the wireless network. When you are outside network coverage, you may want to set date and time information manually using the Date & Time settings.

  • Page 11: Setup

    4. Save when finished. 2 . AC power adapter When the EMMIT is turned on the level of battery charge is indicated in the upper right corner of the screen. The battery can also be charged using the 12 volt power cable connected to a power outlet.
  • Page 12 EMMIT, software build date, etc. Test Report: Lists Archived Test reports that can be 4. EMMIT is now reset to factory settings. You must to e-mailed, viewed, or deleted. go back to step 2 and repeat the setup process.
  • Page 13 2. A pop up message will appear. Select OK. 3. The EMMIT will power off. Restarting the Tool Press and release power button. The EMMIT will power When switching vehicles, it is best to return to the Home screen before disconnecting from the previous vehicle to avoid communication errors.

  • Page 14: Connecting Emmit To Vehicle

    | 1 2 User Manual | EMMIT Connecting EMMIT to Vehicle Power via vehicle DLC 1. Connect the OBD II / DLC cable to the scan tool. ss02356 2. Connect the OBD II / DLC cable to the DLC on vehi- cle.

  • Page 15: Selecting Vehicle

    User Manual | EMMIT | 13 | en Selecting Vehicle 3. Verify vehicle is correct. If yes, hit Next. WARNING: Before performing diagnostic functions, refer to the Safety Precautions and the warnings provided by the vehicle manufacturer . In addition, follow any warnings and instructions provided on the EMMIT .
  • Page 16 4. If the vehicle information is correct, select Next. If the vehicle is not correct, select Manual. The EMMIT must be turned, connected to the vehicle and currently displaying the home screen. Once those conditions are met, complete the following: 1.

  • Page 17: Bluetooth

    2. Follow the instructions on the screen to pair the EMMIT to the vehicle infortainment system. Select Pair EMMIT. 6. Wait for EMMIT to be paired with vehicle. 3. Select Vehicle Bluetooth network. 7. Select YES if pairing is successful.

  • Page 18: Bluetooth Profiles

    | 1 6 User Manual | EMMIT NOTE: If you are too far away from vehicle, a warning screen will appear. Move the EMMIT closer to the vehicle’s infotaiment sys- 4. Follow the prompts on the screen. Select Yes if tem.

  • Page 19: Hands Free Outbound

    User Manual | EMMIT | 17 | en Hands Free Outbound 2. Follow the prompts on the screen select Yes if cor- rect. 1. Follow the prompts on the screen. Select Next. 3. Follow the prompts on the screen. Select Yes. if you 2.

  • Page 20: Audio Profiles

    | 1 8 User Manual | EMMIT 5. Select Next to start next test. 3. Follow the prompts on the screen. Select Yes. Audio Profiles 4. Select Yes if you can see Album, Artist and Song 1. Follow the prompts on the screen. Select Next to began test.

  • Page 21: Message Access Profile (Map) Outbound

    User Manual | EMMIT | 19 | en Message Access Profile (MAP) 4. Follow the prompts on the screen. Select Yes if you 1. Follow the prompts on the screen. Select Next. see the Test Message from EMMIT. 2. Select the simulate button to began.
  • Page 22 2. Select YES if you were able to see message you 2. Select Exit to leave Bluetooth Profiles. selected. 3. Follow listed instructions to delete EMMIT from the 3. Select Next to go to test results. infotainment system’s list of devices, then select CONTINUE.

  • Page 23: Usb

    User Manual | EMMIT | 21 | en ss02245 Overview The USB function will test and verify if the vehicle’s infotainment system is operating properly. When fins- hed, save and email results. 1. Select USB. Figure 7 . USB connections 1 .
  • Page 24 | 2 2 User Manual | EMMIT 5. Select YES if you were able to select different tracks 8. Select YES to proceed to the AUX test. Select NO to or browse . exit testing. 6. The Re-Test button allows you to re-test one or both portions of the USB test.

  • Page 25: Aux

    User Manual | EMMIT | 23 | en ss02244 Overview The AUX function will test and verify the vehicle’s info- tainment system is operating properly. When finshed, save and email results. 1. Select AUX. Figure 8 . AUX connections 2. Connect AUX cable.
  • Page 26 | 2 4 User Manual | EMMIT 5. AUX test was successful. 6. Select Finish this portion of testing. 7. Select Exit when you are ready to exit AUX testing. 577709 | REV. A | 11.2016 Bosch Automotive Service Solutions...

  • Page 27: Test Report

    EMMIT’s memory. Note: In order for the EMMIT to communicate with the test report server a Wi-Fi connection must be active on the tool. The Test Results Data will contain the following: • Dealer Name and Address...
  • Page 28 | 2 6 User Manual | EMMIT 577709 | REV. A | 11.2016 Bosch Automotive Service Solutions...
  • Page 29 ss02297...
  • Page 30 Bosch Automotive Service Solutions 655 Eisenhower Drive Owatonna MN 55060 USA Phone: 800-533-6127...
