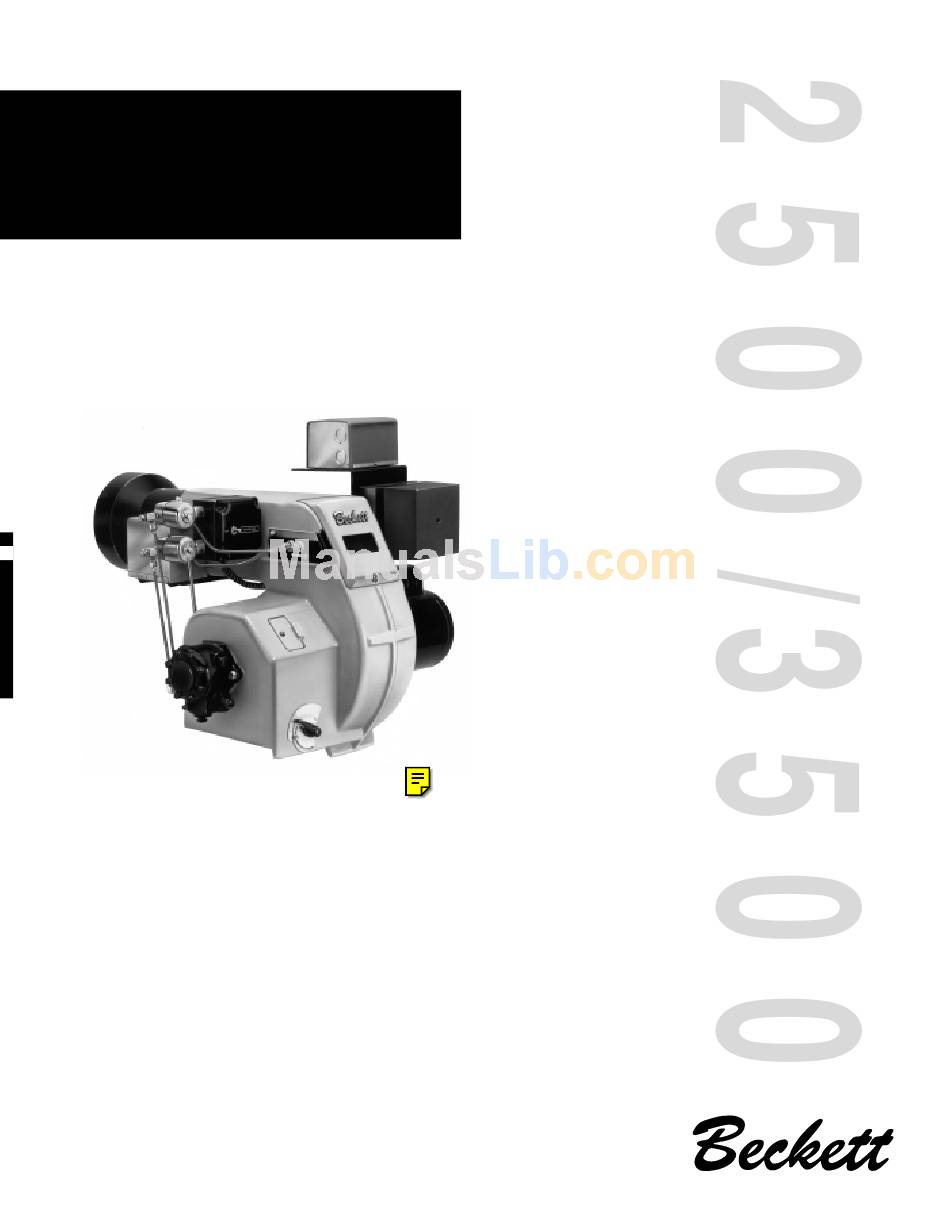

Beckett CF 2500/ 3500 Instruction Manual

Oil burner

Advertisement

Quick Links

2500/
MODEL
MODEL
MODEL
MODEL
MODEL
CF
3500
CF
Instruction Manual
Low/High Operation
Firing rate: CF2500A
CF2500
CF3500A
Motor voltage: 208/230 — 60 Hz std.
Thank you for purchasing a Beckett
burner. With proper care and regular
maintenance, it will provide years of
trouble-free service. Please take a few
minutes to read the section entitled "To
the owner" inside this manual. Then, keep
the manual in a safe place where it can be
easily located if needed by your
professional service technician.
Oil
Burner
17.0 – 19.9 GPH
17.0 – 25.0 GPH
17.0 – 35.0 GPH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF 2500/ 3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Beckett CF 2500/ 3500

  • Page 1 17.0 – 25.0 GPH CF3500A 17.0 – 35.0 GPH Motor voltage: 208/230 — 60 Hz std. Thank you for purchasing a Beckett burner. With proper care and regular maintenance, it will provide years of trouble-free service. Please take a few minutes to read the section entitled “To...
  • Page 2: Please

    High altitude installations — Accepted industry practice requires no derate of burner capacity up to 2,000 feet above sea level. For altitudes higher than 2,000 feet, derate burner capacity 4% for each 1000 feet above sea level. Denotes presence of a hazard which, if ignored, could result in severe personal injury, death or substantial property damage.
  • Page 3: Table Of Contents

    Instruction Manual Warranty Beckett warrants its equipment to those who have purchased it for resale, including your dealer. If you have any problems with your equipment or its installation, you should contact your dealer for assistance. Specifications Fuels #1 or #2 Fuel Oil Firing range CF2500A 17.0 - 19.9 GPH...
  • Page 4: Pre-Installation Checklist

    Clearances • With the burner installed in the appliance, there must be adequate space in front of and on the sides of the burner to allow access and operation. Verify that the clearance di- mensions comply with all local codes and with the appli- ance manufacturer's recommendations.
  • Page 5: Verify Firing Rate

    Verify that the cham- ber dimensions are at least as large as the minimum values given in .
  • Page 6: Mount The Burner

    • Remove the rear access door from the back of the burner for improved access to the interior. • Attach the air tube to the burner with the bolts and acorn nuts provided. The acorn nuts must go on the outside of the burner, with the bolts inserted from the inside.
  • Page 7: Set Dimension Z

    Instruction Manual Figure 5 – Nozzle line assembly in burner Measure dimension front (flat) face of head to end of air tube, as shown. Measure dimension Z from the flat surface between (not on) the raised fins. 3507 Figure 7 – Burner installed in appliance front Legend "...
  • Page 8: Connect Fuel Line(S)

    • Size the oil supply and return lines using the guidelines given in the fuel unit literature included in the literature envelope. Oil line flow rate will equal the burner rate for one-pipe systems. For two-pipe systems, refer to for the fuel unit gearset capacity - the rate at which fuel is recirculated when connected to a two-pipe system.
  • Page 9: Burner Fuel Flow

    • Install two high-quality shutoff valves in accessible loca- ” pump tions on the oil supply line. Locate one valve close to the tank. Locate the other valve close to the burner, upstream of the fuel filter. Burner fuel flow •...
  • Page 10: Wire The Burner

    The CF2500/CF3500A burner is available with many different wiring configurations. Refer to the wiring diagram shipped with the burner for the actual wiring applying to your burner. When firing over 20 GPH, the CF2500 and CF3500A will be supplied with a flame safeguard control. An airflow switch and low-fire start switch may also be supplied.
  • Page 11: Sequence Of Operation - Typical

    ( ) and the ignition transformer ). The oil pump is operated by the burner motor, so oil pressure is delivered to the oil valve inlets. 3. Power is applied to the oil valve circuit. If optional timer, ), is installed, oil flow will be delayed for the timer duration, thus providing a prepurge period.
  • Page 12: Prepare The Fuel Unit For Air Venting

    • This initial setting should be adequate for starting the burner at low fire. Once the burner is in operation, the air setting will be adjusted for best performance as discussed later in this manual.
  • Page 13 19.00 20.00 22.00 10.5 25.00 Form 6104 BCF-35-R0699 – Model CF2500/CF3500 Oil Burner 3516 Legend (Figure 12) a Damper motor – do not adjust internal cam Tube “KM”/“KR” b Arm assembly c Ball joint assembly – do not adjust position of ball 8.00...
  • Page 14: Start The Burner

    Set high-fire air Figure 12 Figure 12 , item 1. Allow the burner to run at low fire until the appliance has , item warmed sufficiently. 2. Visually check the flame. The flame should not be dark orange or smoky. If the flame appears to be smoking, in- crease the amount of air by readjusting the damper indi- cator to a higher number.
  • Page 15: Maintenance And Service

    Operation and adjustment of the burner requires technical knowledge and the use of combustion test instruments. Do not tamper with the burner or controls. Failure to comply could result in failure of the burner or system, resulting in severe personal injury, death or substantial property damage.
  • Page 16: Replacement Parts

    Kit #51498 13.92" Diameter U.S.A.: P . O. Box 1289 Elyria, Ohio 44036 800-645-2876 440-327-1060 FAX 440-327-1064 Canada: R. W. Beckett Canada, Ltd. 430 Laird Road Guelph, Ontario, N1G 3X7 800-665-6972 FAX 519-763-5656 Part number Item Part name Damper linkage arm...
