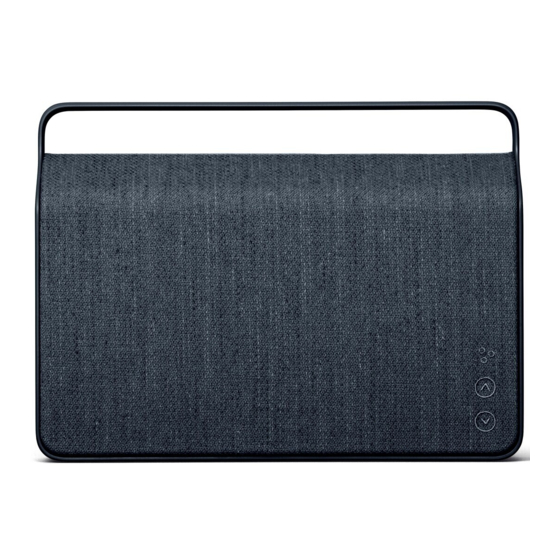

- Page 1 STOCKHOLM 2.0 Quick Guide - Model: VIFA022 ENGLISH...
- Page 2 Consult the dealer or an experienced radio/TV techni- cian for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s Vifa Denmark A/S authority to operate the equipment. Mariendalsvej 2A DK - 8800 Viborg This device complies with Industry Canada vifa.dk...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Regulatory Safety Information Read these instructions. 20 Leaving a battery in an extremely high temperature sur- rounding environment that can result in an explosion or Keep these instructions. the leakage of flammable liquid or gas. Heed all warnings. 21 Battery subjected to extremely low air pressure that Follow all instructions.
- Page 4 You’ve chosen well Multi-room. Multi-user. Multi-source. Stockholm 2.0 is part of the Vifa HOME system ® that covers every corner of your home with the ultimate sound experience. Enjoy!
-
Page 5: Table Of Contents
Connecting to Wi-Fi network ............8 Connecting using Bluetooth ............9 ® Wired connection ................10 Vifa HOME ® Vifa PLAY..................11 ® Pause / Mute ...................12 Vifa LINK ..................13 ® Remote ....................14 Specifications ..................17 Trademarks ..................18 For Quick Guide in other languages please visit www.vifa.dk/support... -
Page 6: In The Box
IN THE BOX Vifa Stockholm, remote, power cable, AUX 3.5 mm mini jack cable, travel bag, quick-guide and warranty. -
Page 7: Get Started
GET STARTED Plug power cable into your loudspeaker and then plug into a power outlet. Press and hold POWER button until front STATUS INDICATOR lights up and the loudspeaker is turned ON. Wait up to 1 minute until the product is ready. This is indicated with a change from rapid WHITE flashing to slow WHITE flashing and a sound cue. -
Page 8: Connecting To Wi-Fi Network
® To learn more about other opportunities such as using a computer or other devices for setup, visit: vifa.dk/support During setup, you will connect your loudspeaker to your Wi-Fi network. Please make sure you have the password for your Wi-Fi network ready. When your Stockholm is connected, the STATUS INDICATOR turns solid WHITE and you can start streaming to your loudspeaker. -
Page 9: Connecting Using Bluetooth
CONNECTING USING BLUETOOTH ® Briefly press the CONNECT button and the STATUS INDICATOR flashes BLUE. 14:52 Bluetooth Bluetooth VIFA_BTxxxx Not Connected The STATUS INDICATOR turns solid BLUE when playback is started. -
Page 10: Wired Connection
WIRED CONNECTION The STATUS INDICATOR turns solid GREEN when playing from a wired con- nection. AUX 3.5 mm mini jack cable or optical cable USB disk... -
Page 11: Vifa ® Play
PLAY button to start streaming the preset radio stations. ® Press and hold the Vifa PLAY button to jump to the next preset radio station. ® You can change the Vifa PLAY preset by using the Vifa HOME app. ® ® Sketch 9:41 AM... -
Page 12: Pause / Mute
PAUSE / MUTE Briefly press the Vifa PLAY button to Pause/Mute. ® Briefly press again to Play/Unmute. -
Page 13: Vifa ® Link
Vifa LINK ® Vifa LINK – allows you to interconnect different Vifa HOME loudspeakers, ® ® with one discreet click. Briefly press the Vifa LINK button to link your Stockholm loudspeaker to ® another Vifa HOME loudspeaker. ® Press and hold the Vifa LINK button to discontinue the link. -
Page 14: Remote
VIFA R2 REMOTE The Vifa R2 remote lets you easily control your Stockholm loudspeaker from anywhere in the room. Mute / Unmute Turn up volume Previous Next Turn down volume Vifa PLAY ® Vifa LINK ®... - Page 15 PAIR REMOTE WITH SPEAKER Procedure for how to pair the remote with loudspeaker the first time. First reset the remote. Press and hold the 3 round buttons on the remote simultaneously for 5 seconds, then release. Now start the loudspeaker remote pairing mode. Press both volume keys simultaneously on the loudspeaker until the STATUS INDICATOR starts flashing BLUE, then release keys.
- Page 16 PAIR REMOTE WITH SPEAKER Press any key on the remote. The paring process is done in a few seconds. STATUS INDICATOR will flash when the remote is used.
-
Page 17: Specifications
DSP signal processing Force Balanced Woofers 6 channel high performance power amplifier Driver units Tweeter 2 X 28 mm Vifa driver unit with soft dome and neodymium magnet. Midrange 2 X 80 mm Vifa driver unit with aluminium cone and neodymium magnet. -
Page 18: Trademarks
REGISTER AND TRADEMARKS We encourage you to register your product at: www.vifa.dk/register A Vifa product is in compliance with directives of relevance, including RoHS directive – see product label for more regional information. ”Made for iPod” , ” Made for iPhone” , and “Made for iPad” mean that an electronic... - Page 19 ® The Bluetooth word mark and logos are regis- ® tered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Vifa Denmark A/S is under license. Qualcomm aptX™ HD is a product of ® Qualcomm Technologies International, Ltd.
- Page 20 For more information please visit our website at vifa.dk...
