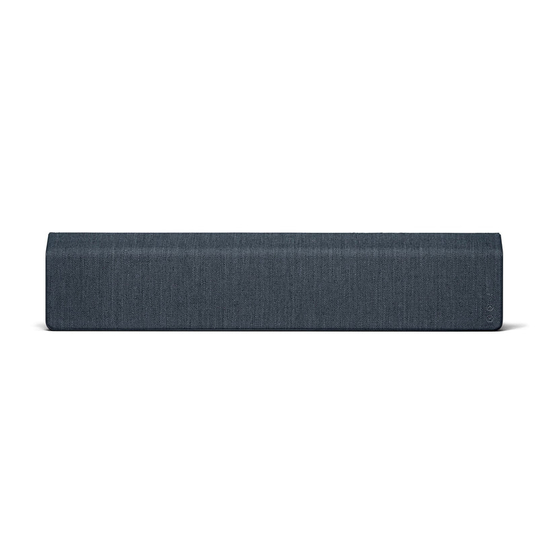

Vifa Stockholm Owner's Manual
  1. Manuals
  2. Brands
  3. Vifa Manuals
  4. Speakers
  5. Stockholm
  6. Owner's manual

Vifa Stockholm Owner's Manual

Hide thumbs Also See for Stockholm:
Table of Contents

Advertisement

Quick Links

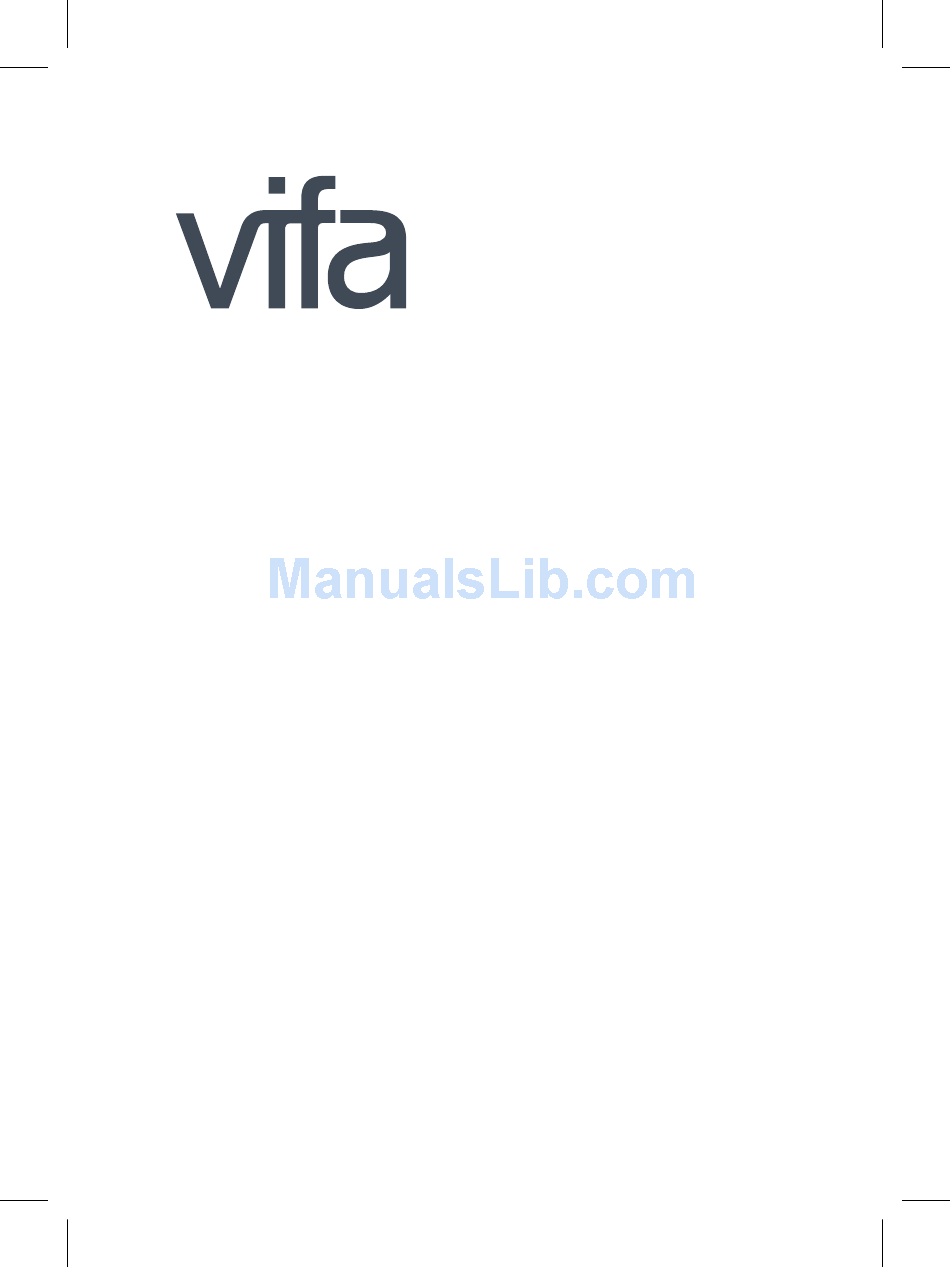

STOCKHOLM
owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stockholm and is the answer not in the manual?

Questions and answers

Related Manuals for Vifa Stockholm

Summary of Contents for Vifa Stockholm

  • Page 1 STOCKHOLM owner’s manual...
  • Page 2 You’ve chosen well The Vifa Stockholm. A loudspeaker for anyone who values exclusive Nordic design and authentic sound. It’s designed to be intuitive for you to use. This manual just spells out the details - for instance, how to connect wirelessly in a flash.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Regulatory Safety Information Read these instructions. Unplug this apparatus during lightning storms or when unused for long periods Keep these instructions. of time. Heed all warnings. Refer all servicing to qualified service personnel. Servicing is required when Follow all instructions.
  • Page 4 · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Vifa Denmark A/S · Consult the dealer or an experienced radio/ Mariendalsvej 2A TV technician for help. DK-8800 - Denmark...

  • Page 5: Table Of Contents

    Buttons and indicators on Stockholm ..........6 Status indicator ................7 The Vifa remote ................8 Input options ................10 Connecting priority ..............11 Connecting to Stockholm Bluetooth ..................12 Wi-Fi Direct .................. 13 Wi-Fi Network manual setup ............14 Wi-Fi Network using an iOS device ..........

  • Page 6: Buttons And Indicators On Stockholm

    BUTTONS AND INDICATORS ON STOCKHOLM You can change the light intensity of the status indicator using the Vifa app. Status indicator Volume up Volume down Connect Power socket Reset Aux optical and analog input Power...

  • Page 7: Status Indicator

    WHITE once. • For standby: press until the status indicator flashes WHITE twice. Note: Putting Stockholm into hibernation mode will allow you to wake it up rapidly. In standby mode Stockholm will consume less than 0.5 watt from the power outlet.

  • Page 8: The Vifa Remote

    The Vifa remote lets you easily control your Stockholm loudspeaker from anywhere in the room. Turn up the volume of your favorite music or easily set up your Stockholm to your preferred connec- tion, like Wi-Fi Direct, your Wi-Fi network or via wired input.
  • Page 9 Changing the VIFA remote battery Replace the battery with a CR2025 battery. To replace the battery: Use a coin to remove the battery compartment cover. Remove the battery. Insert a CR2025 battery with the positive side facing up. Replace the battery compartment cover and use a coin...

  • Page 10: Input Options

    INPUT OPTIONS Bluetooth • Fast and easy and works for virtually every phone, tablet or MAC/PC - supports aptX for Hi-Fi sound. • Wi-Fi Works for phones, tablets, MAC/PC Wi-Fi and networked DLNA enabled devices - supports Wi-Fi Direct. • Wired optical or analog For music players, media players or televisions.

  • Page 11: Connecting Priority

    CONNECTING PRIORITY Stockholm automatically selects input for you based on the following rules. 1st priority is Wi-Fi and USB If Wi-Fi or USB is connected and playing music, other connections are disconnected. 2nd priority is Bluetooth If Bluetooth is connected and playing music, a wired analog or optical connection will be disconnected.

  • Page 12: Bluetooth

    Adjust the volume on Stockholm, with the remote or your device. Note: Release of the Bluetooth pairing can be done either on the paired device, on Stockholm or with the Stockholm remote. On Stockholm press the ”Volume up” and ”Volume down” button simultaneously until the indicator flashes BLUE three times.

  • Page 13: Wi-Fi Direct

    CONNECT button – the indicator will now start to pulse until it receives a music signal. Find Wi-Fi network settings on your device. Select the network called VIFA_..(No password required) Play music on your device – the status indicator turns solid WHITE when Stockholm receives the music.

  • Page 14: Wi-Fi Network Manual Setup

    CONNECTING TO YOUR Wi-Fi NETWORK Manual setup 1.1 On Stockholm: Press and hold the CONNECT button until the status indicator fl ashes WHITE rapidly and then release the CONNECT button – the indicator will now start to pulse until it receives a music signal.
  • Page 15 Now the Stockholm setup page open up. Choose your preferred network and enter the password if needed. Then type in the name you want displayed for Stockholm on the network ex. “Stockholm Living room”. Then press “Apply”. When the status indicator turns solid WHITE the connection is established.

  • Page 16: Wi-Fi Network Using An Ios Device

    CONNECTING TO YOUR Wi-Fi NETWORK Using iOS device Make sure your iOS device is connected to your network. Connect your iOS device to Stockholm using a USB cable. 3.1 On Stockholm: Press and hold the CONNECT button on Stockholm until the status indicator fl ashes YELLOW rapidly and then release the CONNECT button.
  • Page 17 YELLOW rapidly and then release the CONNECT button. The iOS device will ask you if it may transfer network settings to the speaker. Press Allow on the iOS device. When the status indicator on Stockholm turns solid WHITE, the connection is established.

  • Page 18: Wi-Fi Network Using Wps

    YELLOW rapidly and then release CONNECT button. 2.2 With the remote: Press and hold the CONNECT button until the status indicator fl ashes YELLOW rapidly and then release CONNECT button. 3. When the status indicator on Stockholm turns solid WHITE, the connection is established.

  • Page 19: Playback Through Wi-Fi

    PLAYBACK THROUGH Wi-Fi Connect your playback device and Stockholm to the same Wi-Fi network - and playback is simple, choose Stockholm as sound device or renderer on your playback device. For iOS device just press the AirPlay logo and choose Stockholm.

  • Page 20: Wired Connection - Optical, Analog Or Usb

    B2. With the remote: Briefl y press the CONNECT button, then the status indicator will fl ash GREEN three times and normal input priority is restored. You can use USB as a playback input from your iOS device. Stockholm will charge your iOS device simultaneously.

  • Page 21: Reset And Set To Factory Default

    CONNECT button simultaneously until the status indicator starts triple fl ashing WHITE. Release the buttons and Stockholm will go to factory default – after factory default ALL USER SETTINGS WILL BE LOST. To fi rmware update Stockholm, please go to...

  • Page 22: Vifa App

    THE VIFA APP To get the most out of your Vifa Stockholm, download the free Vifa app. You can find links to the app. under “support” on the Vifa website. The Vifa app allows you to: • Adjust the sound to your preferred taste or surroundings •...

  • Page 23: Product Care

    5 - 40 °C (40 - 105 °F). CLEANING Your Vifa product is covered by beautiful highly durable textile from Kvadrat. Remove non-greasy stains by carefully dabbing with a lint-free cloth or use a lint roller to remove lint from the textile.

  • Page 24: Troubleshooting

    TROUBLESHOOTING In the extreme case that Stockholm is pushed to overheating, the status indicator lights RED constantly - please unplug the power cord and wait for approximately 5 min. before plugging in Stockholm and powering it up again. Here you can find further support on our Vifa products: www.vifa.dk/support...

  • Page 25: Specifications

    DSP signal processing Force Balanced Woofers Digital pure path amplifiers Drive units Tweeter 2 X 28 mm Vifa drive units with soft dome and neodymium magnet. Midrange 2 X 80 mm Vifa drive units with aluminium cone and neodymium magnet.

  • Page 26: Register And Trademarks

    We encourage you to register your product at: www.vifa.dk/register A Vifa product is in compliance with directives of relevance, including RoHS directive – see product label for more regional regulatory approvals. Made for iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPhone 3GS, iPhone...
  • Page 27 The Wi-Fi Certified Logo is a certification mark of the Wi-Fi Alliance. The Bluetooth logo, the Bluetooth name and the combination are trademarks owned by Bluetooth SIG Inc. © 2013 CSR pic and its group companies. The aptX® mark and the aptX logo are trade marks of CSR pic or one of its group companies and may be registered in one or more jurisdictions.
  • Page 28 For more information please visit our website at www.vifa.dk...
