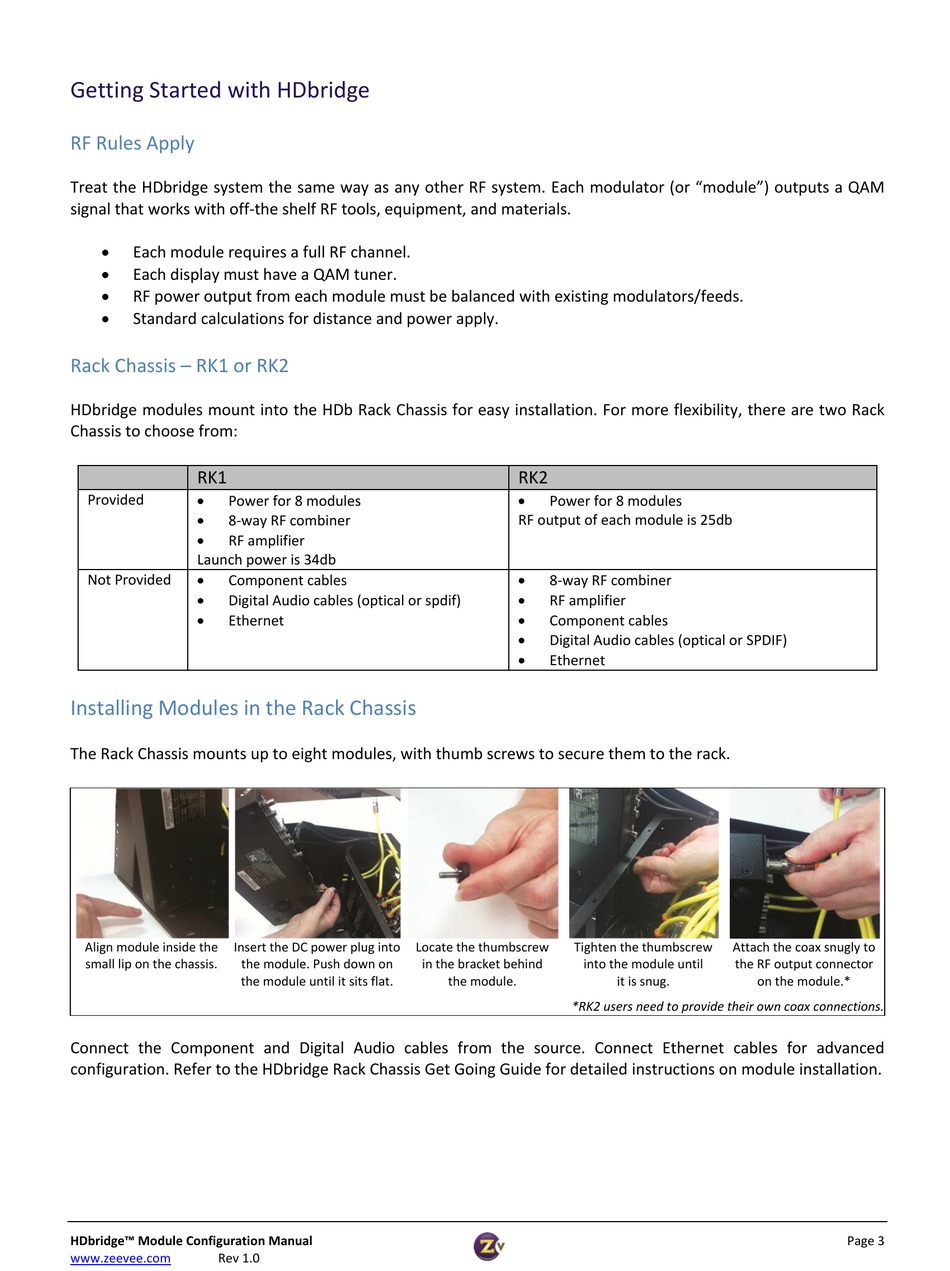

Getting Started with HDbridge

RF Rules Apply

Treat the HDbridge system the same way as any other RF system. Each modulator (or "module") outputs a QAM
signal that works with off-the shelf RF tools, equipment, and materials.

Each module requires a full RF channel.

Each display must have a QAM tuner.

RF power output from each module must be balanced with existing modulators/feeds.

Standard calculations for distance and power apply.
Rack Chassis – RK1 or RK2
HDbridge modules mount into the HDb Rack Chassis for easy installation. For more flexibility, there are two Rack
Chassis to choose from:
RK1

Provided
Power for 8 modules

8-way RF combiner

RF amplifier
Launch power is 34db

Not Provided
Component cables

Digital Audio cables (optical or spdif)

Ethernet

Installing Modules in the Rack Chassis

The Rack Chassis mounts up to eight modules, with thumb screws to secure them to the rack.
Align module inside the Insert the DC power plug into
small lip on the chassis. the module. Push down on
the module until it sits flat.
Connect the Component and Digital Audio cables from the source. Connect Ethernet cables for advanced
configuration. Refer to the HDbridge Rack Chassis Get Going Guide for detailed instructions on module installation.
HDbridge™ Module Configuration Manual
www.zeevee.com Rev 1.0
RK2

Power for 8 modules
RF output of each module is 25db

8-way RF combiner

RF amplifier

Component cables

Digital Audio cables (optical or SPDIF)

Ethernet
Locate the thumbscrew Tighten the thumbscrew
in the bracket behind into the module until
the module.
*RK2 users need to provide their own coax connections.
Attach the coax snugly to
the RF output connector
it is snug. on the module.*
