Toa BS-20W-WHT Instruction Manual

SPLASHPROOF SPEAKER
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
WARNING
Indicates a potentially hazardous situation
which, if mishandled, could result in death or
serious personal injury.
When Installing the Unit
• Install the speaker only in a location that can
structurally support the weight of the speaker and
the mounting bracket. Doing otherwise may result
in the speaker falling down and causing personal
injury and/or property damage.

2. GENERAL DESCRIPTION

TOA's BS-20W and BS-20W-WHT are two-way, wall-mounted, splashproof speakers. Their directivity of 30°C
horizontal and 90°C vertical makes them ideal for installation in railroad stations. Applications of these
speakers include uses at outdoor locations under eaves which can avoid direct water splash and at highly
humid locations including locker rooms of shower rooms, swimming pools, and bath rooms.

3. INSTALLATION

Depending on the place to install, use the speaker's bracket solely or together with an optional mounting bracket.

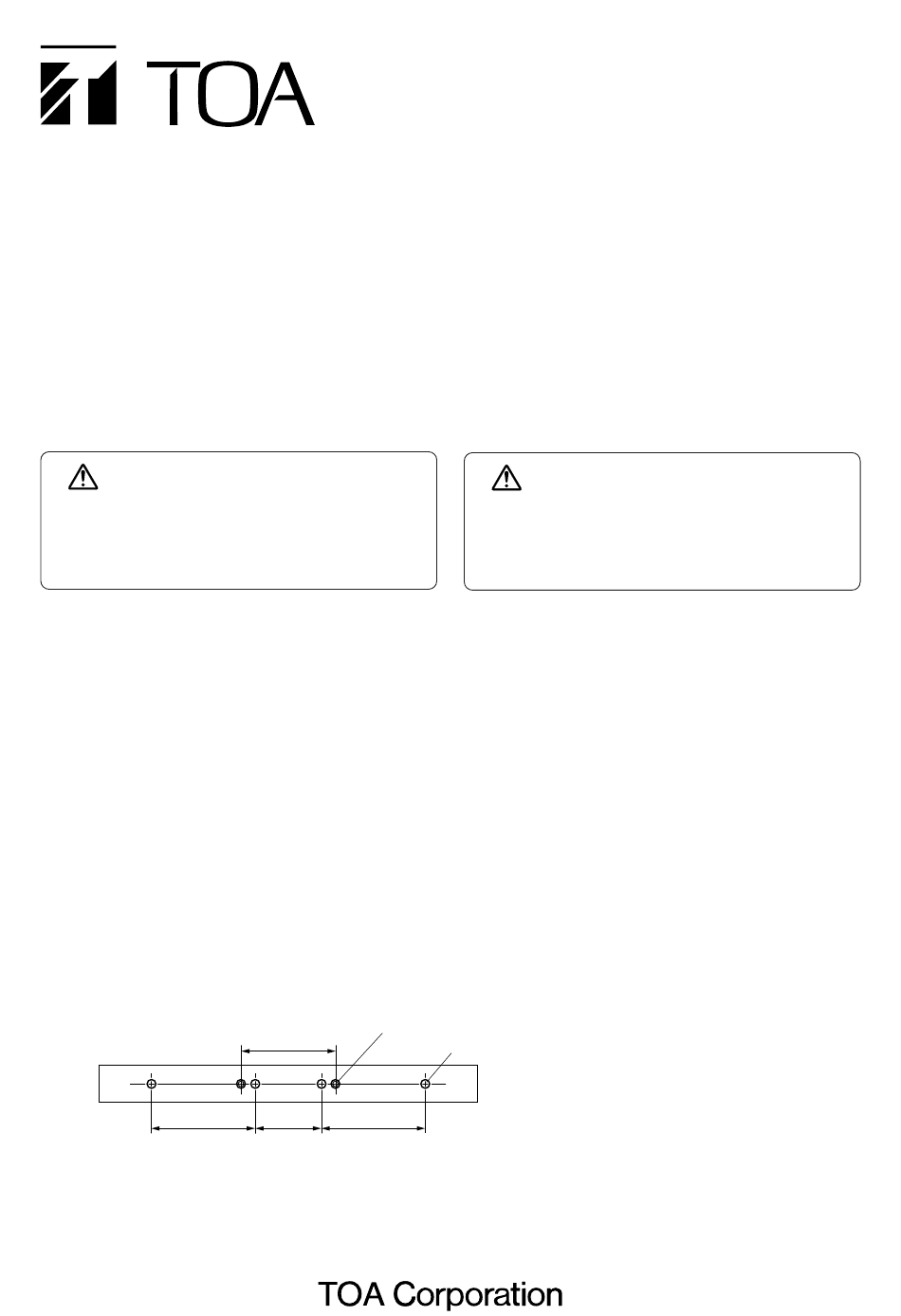

The mounting holes provided with the speaker's bracket are shown below.
79
Precautions
• Fix the speaker securely to the wall using anchor bolts or other devices suited to the wall construction and materials.
• The speakers must be mounted facing downward because the rain could enter the speaker inside, causing
the speakers to fail.
M5 hole (2 places)*
70
42 79
INSTRUCTION MANUAL
CAUTION
Indicates a potentially hazardous situation
which, if mishandled, could result in moderate
or minor personal injury, and/or property
damage.
When the Unit is in Use
• Do not stand or sit on, nor hang down from the
speaker as this may cause it to fall down or drop,
resulting in personal injury and/or property damage.
2
1
ø6 hole (4 places)*
1
* Holes for mounting the speaker's bracket
2
* Holes for mounting an optional bracket
BS-20W
BS-20W-WHT
(Unit: mm)
