CoRe+

Installation Guide for Cascading on a 150A Circuit

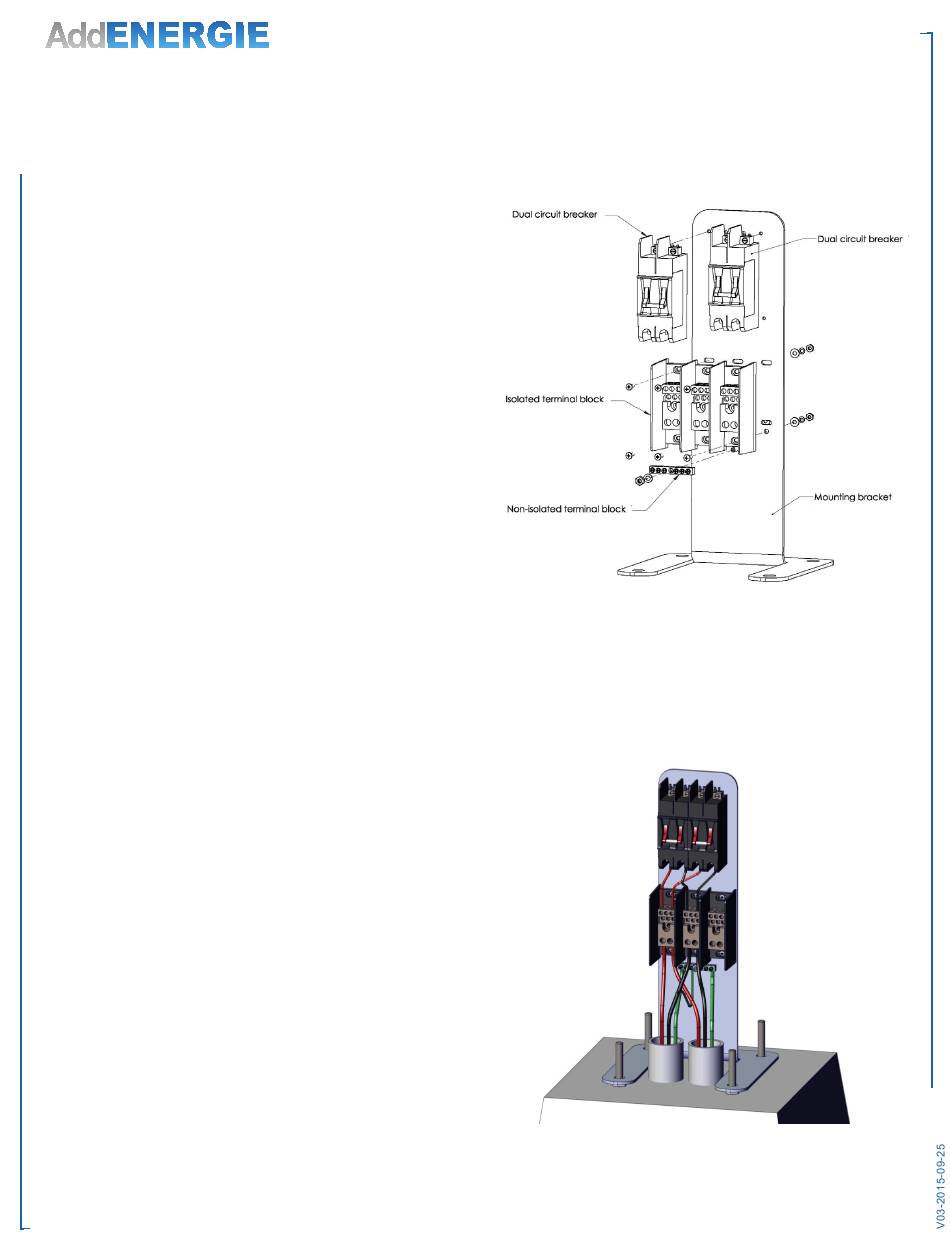

STEP 1:

ounting bracket preasseMbly

The preassembly requires the 150 A cascading kit

(AddÉnergie part number C+V1-PWCK-150) and 1

or 2 double 40 A breakers (AddÉnergie part number

breaker-40D) depending on the number of charging

stations to be mounted on the pedestal.

• Install the 2 provided terminal blocks (1 isolated

3-position terminal block for the live conductors,

and 1 non-isolated terminal block for the grounding

conductor) and the breakers onto the mounting

bracket with the provided screws.

• Connect the power supply cables from the top of

the terminal blocks to the breaker(s), depending on

the number of stations to be installed.

STEP 2

ounting bracket installation and power supply

cable connection

• Install the power supply cables coming from the previous

charging station and the power supply cables going to the

next one, letting 1 foot (30 cm) of cable protrude from the

conduit.

• Place the mounting bracket on the concrete base,

making sure that the anchor's threaded rods pass

through the 4 holes in the base of the bracket.

• Connect the power supply cables to the bottom of the

terminal blocks.

Table of Contents

Need help?

Do you have a question about the CoRe+ and is the answer not in the manual?

Page 1 CoRe+ Installation Guide for Cascading on a 150A Circuit STEP 1: ounting bracket preasseMbly The preassembly requires the 150 A cascading kit (AddÉnergie part number C+V1-PWCK-150) and 1 or 2 double 40 A breakers (AddÉnergie part number breaker-40D) depending on the number of charging stations to be mounted on the pedestal.
Page 2 STEP 3: edestal and charging station installation • Slide the pedestal over the assembly, making sure that the terminal blocks are facing the access door at the bottom of the pedestal. • Tighten the 4 mounting nuts that secure everything to the anchor.
