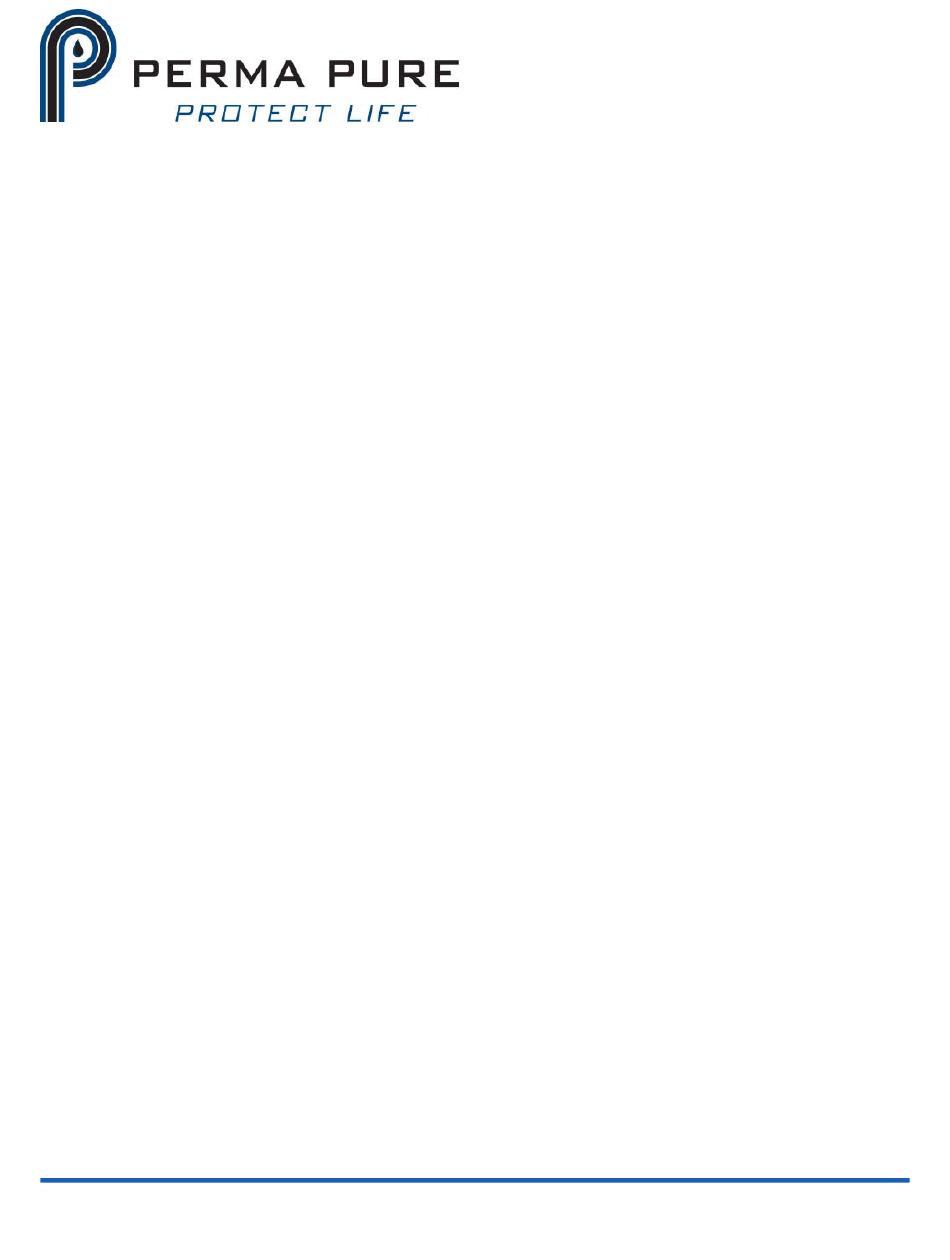

Baldwin™-Series
Model 5210D
Thermo-Electric Cooler
User's Manual
Perma Pure LLC • A Halma Company • info@permapure.com • www.permapure.com
Telephone:
732-244-0010 • Toll Free: 800-337-3762 • Fax: 732-244-8140
1001 New Hampshire Ave., Lakewood, NJ 08701 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Baldwin series and is the answer not in the manual?

Questions and answers

Related Manuals for Perma Pure Baldwin series

Summary of Contents for Perma Pure Baldwin series

  • Page 1 Baldwin™-Series Model 5210D Thermo-Electric Cooler User’s Manual Perma Pure LLC • A Halma Company • info@permapure.com • www.permapure.com Telephone: 732-244-0010 • Toll Free: 800-337-3762 • Fax: 732-244-8140 1001 New Hampshire Ave., Lakewood, NJ 08701 USA...

  • Page 2: Table Of Contents

    21. A2: Impinger diagram 22. Appendix B: Sample Conditioning System Drawings 22. B1: Flow schematic 23. Appendix C: Conversion Table 25. Appendix D: Warranty and Disclaimer Page 2 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 3: Introduction

    This is out of control of Perma Pure and is the responsibility of the carrier to ensure that your equipment arrives intact and undamaged.
  • Page 4 This process may drop out other constituents of the sample stream with the water, some which may impact your measurements. Perma Pure Provides Nafion-based sample conditioning systems which prevent loss of water soluble analyses using a permeation method for sample drying.
  • Page 5 Removes condensate from the impinger without creating a path Figure 2: Heat Exchanger, Impinger and Heat Sink for outside air to enter the sample stream. Page 5 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 6: Specifications

    An automatic condensate drain, dual-head peristaltic drain pump is recommended (not included) for water removal, Perma Pure part number 3KPB-003; size 17 tubing. Always use factory supplied fittings; Perma Pure cannot warrant against damage to the Peltier elements or heat exchangers if our fittings are not used.

  • Page 7: Important Safety Warnings

     NEVER operate this equipment if it is visibly damaged or the possibility exists that it may have been damaged.  The use of components that have not been purchased through an authorized Perma Pure dealer or directly from Perma Pure may compromise the safety of the operator. Additionally, use of non-authorized components may change the operating characteristics of this equipment.

  • Page 8: Installation

    NOTE: Do not reduce the size of the condensate tubing since doing so restricts water flow resulting in water carryover into the sample.     Figure 3: Model 5210D Cooler     Page 8 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 9: Board Connections

    Model 5210D User’s Manual Doc. SE-MAN-050 REV 00 BOARD CONNECTIONS             Page 9 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 10 FUSE1: 10Amp fuse between JP1 and JP2 and JP3 FUSE2: 10 Amp fuse between JP1 and JP4 and JP5 (pump relay controlled)   Page 10 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 11 That is, the pump will not run unless the circuit is closed. JP18: Expansion port. Not supported at this time. JP19: RS485 bias and termination. Not supported at this time. Page 11 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 12 The display operation varies depending on as shipped configuration. When the unit powers on, it will briefly display R-XX (r-01, r-02, etc.). This is the revision of the control software loaded into the on-board memory. Page 12 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 13: Led Summary

    NJTC is not enabled, the unit will not allow NJTC display as an option, it will instead display the revision status. Enabling features in software that are not physically installed may cause unexpected / unpredictable results.   Page 13 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 14: Start-Up

    The SLIP Green LED is always on unless;  Moisture is detected by the water slip sensor  There is a malfunction (e.g. Shorted water slip sensor leads or a defective relay) Page 14 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 15: Troubleshooting And Maintenance Guide

    The 12VDC cooling fans on a 5210D should be wired to the designated 12VDC output of the board. Care should always be taken to avoid rotating blades! Page 15 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 16 Replace fuse Fuse blows-Replace control  Fuse does not blow-verify heat sink fan wiring condition  If wiring is good, fan likely defective Page 16 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 17 Ensure that all water slip Water slip sensor connections. sensor connections are made.  Disconnect sensor; Clean tip of sensor.  Replace sensor as necessary. Page 17 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 18 Visually check operation and condition. If O.K., check coil of relay with ohm meter; if O.K., possible bad relay contact; Replace with known good relay. Page 18 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 19: Replacement Parts

    Impinger: 10” Stainless Steel, EZ-clean twist-apart 3CXS-024 Impinger: 10” NJ, Stainless Steel, EZ-clean twist-apart 3KPE-004* Peltier Element Kit, 40 mm 1PSD-035* Power Supply,1PSD-008/009 Replacement 103185* Thermistor, Control * Recommended Spares Page 19 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 20: Appendix A: Cooler Drawings

    Model 5210D User’s Manual Doc. SE-MAN-050 REV 00 APPENDIX A: COOLER DRAWINGS Figure A1: Model 5210D Dimensional Drawing Page 20 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 21: A2: Impinger Diagram

    Model 5210D User’s Manual Doc. SE-MAN-050 REV 00 Figure A2: Impinger Diagram Page 21 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 22: Appendix B: Sample Conditioning System Drawings

    Model 5210D User’s Manual Doc. SE-MAN-050 REV 00 APPENDIX B: SAMPLE CONDITIONING SYSTEM DRAWINGS Figure B1: Flow Schematic Page 22 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.
  • Page 23 0.011 + 46 1.03 0.008 + 45 0.988 0.006 + 43 0.922 0.005 + 41 0.861 0.004 + 39 0.803 0.003 + 37 0.751 0.002 Page 23 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 24: Appendix C: Conversion Table

    11.99 15780 63.9 9800 13.63 17930 72.6 11140 15.48 20370 82.5 12650 17.54 23080 93.5 14330 19.827 26088 16699 33.377 29443 18847 25.209 33169 21232 Page 24 of 25 ©2017 Perma Pure LLC. All rights reserved. Specifications subject to change.

  • Page 25: Appendix D: Warranty And Disclaimer

    APPENDIX D: WARRANTY AND DISCLAIMER Perma Pure LLC Perma Pure (Seller) warrants that product supplied hereunder shall, at the time of delivery to Buyer, conform to the published specifications of Seller and be free from defects in material and workmanship under normal use and service.
