ASSEMBLY INFORMATION
1. Check parts against parts list.
2. Read instructions completely before starting assembly.
TOOLS REQUIRED
1. Wrench adjustable to 7/16"
2. Screwdriver
3. Hammer
CAUTION: Woodblock and tubing will crush if over-
tightened.
MOTOR CARRIER ASSEMBLY

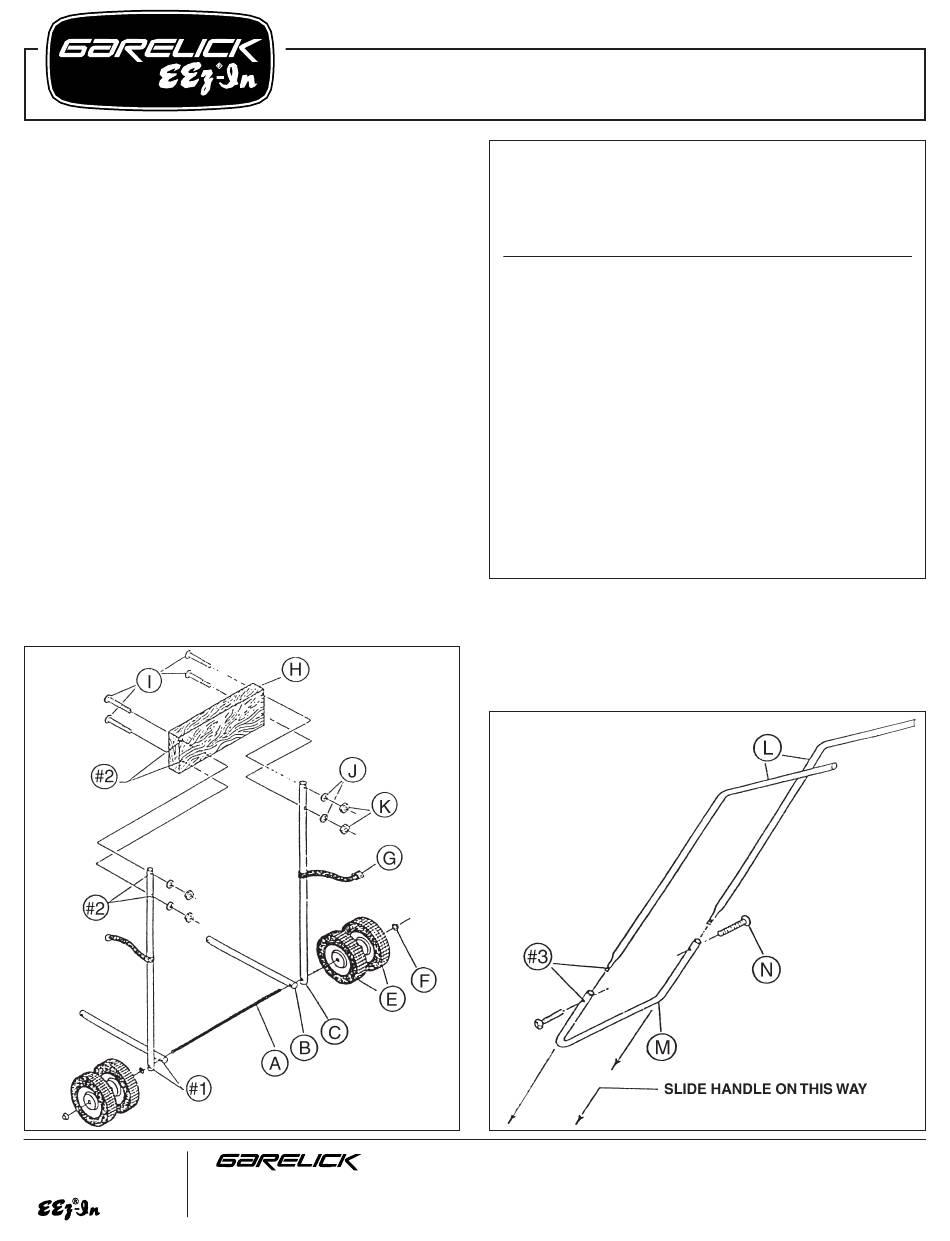

Refer to Fig. 1:
1. Slide axle (A) through large holes #1 of bottom brace tubes
(B) on each end.
2. Slide each end of axle through holes #1 of upright support
tubes (C).
3. Mount two wheels (E) on each end of axle.
4. Using hubnuts (F), secure wheels by tapping them on axle
squarely with hammer.
5. Slide loop ends of tank tiestraps (G) over upright support
tubes.
6. Attach woodblock (H) to each end of upright support tubes
by aligning holes #2, inserting four carriage bolts (I) and
securing with fasteners (J) and (K) as illustrated (finger
tighten).
FIG. 1
Write for
a Complete
Catalog
Assembly Instructions for
Model 31800 Motor Carrier
PO Box 8, 644 2nd Street
St. Paul Park, Minnesota 55071
Model 31800 Motor Carrier
Ref.
Factory
No.
Letter
Part No.
Req.
A
51.024
1
B
51.015
2
C
51.027
2
E
49.096
4
F
03.039
2
G
49.041
1
H
51.029
1
I
03.003
4
J
03.118
12
K
03.023
12
L
51.022
2
M
51.023
1
N
03.088
4
O
03.089
4
P
51.014
1
Q
51.025
1
R
06.027
2
Refer to Fig. 2:
1. Insert handles (L) into bottom U (M).
2. Align holes #3 in assembly so that the handles will point
AWAY from each other and insert bolts (N). NOTE: DO
NOT add fasteners yet.
FIG. 2
Parts List
Description
Axle
Bottom brace, 16
⁄
"
1
2
Upright support tube, 33
Wheel
Pushnut
Tank tiestrap (2 parts)
Woodblock
⁄
-20x3
⁄
" carriage bolt
1
1
4
2
⁄
" lockwasher
1
4
⁄
-20 nut
1
4
Handle (left and right)
Bottom U
⁄
-20x2
⁄
" bolt
1
1
4
2
⁄
-20x2
⁄
" bolt
1
3
4
4
Handlebrace
Tankholder U-tube
Poly handgrip
Phone: 651-459-9795
E-mail: mail@garelick.com
On the Web: www.garelick.com
Form 12.122
⁄
"
1
2
(over)
3/99
