Garelick 99025 Installation And Operating Instructions

INSTALLATION

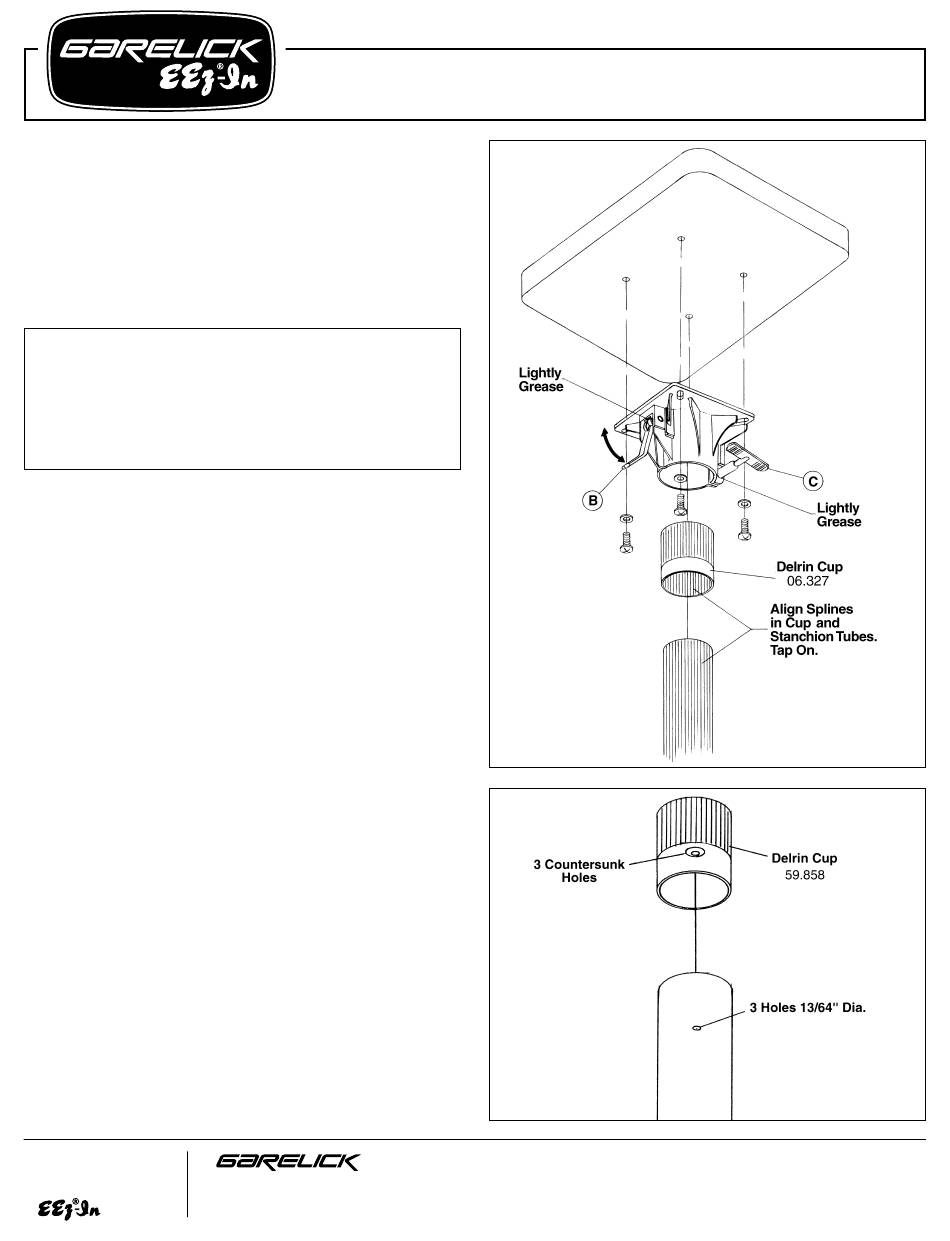

Read instructions completely before installing. Refer to Fig. 1.
1. Position Seat Swivel on seat bottom and align 4 mounting
holes.
2. Secure Seat Swivel with appropriate hardware.
NOTE: Fasteners are not provided due to the wide variety
of installations.
NOTE: All EEz-In seats use 1/4"-20 threaded T-nuts.
SPECIAL NOTE: for rotational molded EEz-In seats:
A. Install with reinforcement brackets between seat swivel
and seat bottom.
B. Make certain that the portion of the screw entering the
seat shell's T-Nut does not exceed 3/8". Seat shell T-nuts
are 1/4"-20 thread, use only 1/4"-20 machine screws.
3. Remove black delrin cup from swivel casting. Align splines
in cup with splines on seat pedestal and tap on with a soft
hammer, if necessary.
4. Slip seat with swivel onto pedestal.

SMOOTH TUBE INSTALLATION

Read instructions completely before installing. Refer to Fig. 2.
1. Slide Delrin Cup (59.858) over stanchion tube. Align
one of three countersunk holes to front of the tube. This
will index casting so seat will lock in the forward facing
position. Push down until rim of cup contacts top of tube.
Center punch tube at locations of three countersunk
holes.
2. Drill three holes 13/64" diameter through tube. File or
scrape clean the burrs left from drilling.
3. Fasten cup in place using three flathead screws (03.547)
and locknuts (03.027).
(continued on back)
Write for
a Complete
Catalog
Installation and Operating Instructions for
99025/99026/99036 Seat Swivel System
PO Box 8, 644 2nd Street
St. Paul Park, Minnesota 55071
FIG. 1
FIG. 2
On the Web: www.garelick.com
Form 12.345
Phone: 612-459-9795
E-mail: mail@garelick.com
2/01
