TOOLS Required:
Hammer
CAUTION: Tubing will crush if over-tightened.
Step 1:
Insert 4 bolts (2 7/8" long) through wood block. Place
upright handle tubes over bolts so handles point UP
and AWAY from each other.
Tightly secure with fasteners.
Step 2:
Slip support brackets on axle attached to U-tube using
large holes.
Support Brackets
Axle
U-tube
nd
PO Box 8, 644 2
Street
St. Paul Park, MN 55071

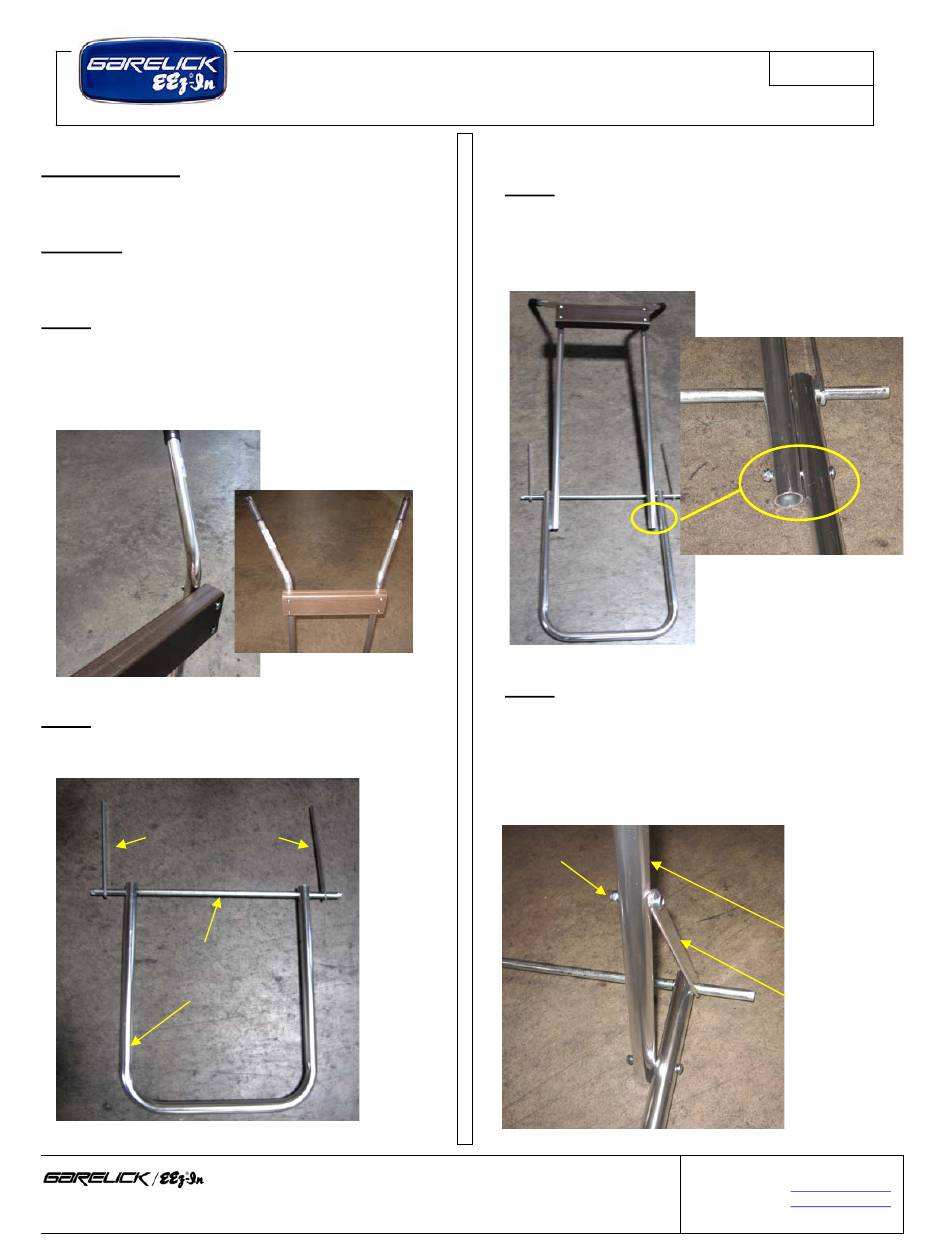

Assembly Instructions for:
31400 Motor Carrier
Page 1
Step 3:
Place lower ends of handle assembly INSIDE of arms
of the U-tube at holes.
Insert bolts and finger tighten fasteners.
Step 4:
Align holes in support brackets with holes in upright
handle tubes.
NOTE: Support bracket is on the outside of the tubes.
Insert bolts and finger tighten fasteners.
Fastener
Form 12.120
Upright Handle
Tube
Support Bracket
Phone: (651) 459-9795
E-mail:
mail@gareick.com
On the Web:
www.garelick.com
Revision Date: 08/07
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Garelick 31400
Summary of Contents for Garelick 31400
- Page 1 Assembly Instructions for: Form 12.120 31400 Motor Carrier TOOLS Required: Page 1 Hammer Step 3: Place lower ends of handle assembly INSIDE of arms of the U-tube at holes. Insert bolts and finger tighten fasteners. CAUTION: Tubing will crush if over-tightened.
- Page 2 Assembly Instructions for: Form 12.120 31400 Motor Carrier Page 2 Step 7: In completion of Step 4, Motor Carrier should be as Place caps on wheels. Gently tap into place with shown: hammer. Step 5: ***Step 8: Tighten all fasteners on carrier.*** Place plastic washer on axel as shown.
