Garelick 75006 Assembly And Installation Instructions

Seat slide assembly with swivel

Advertisement

Quick Links

Parts List for Model 75006
Ref.
Factory
No.
Letter Part No.
Req.
A
49.045
1
B
59.308
1
C
03.069
4
D
03.161
4
E
03.125
4
F
03.017
4
G
59.306
1
H
59.307
1
I
4
J
03.119
4
K
03.116
4
L
03.128
1
M
03.133
1
N
59.064
1
s.s. means stainless steel

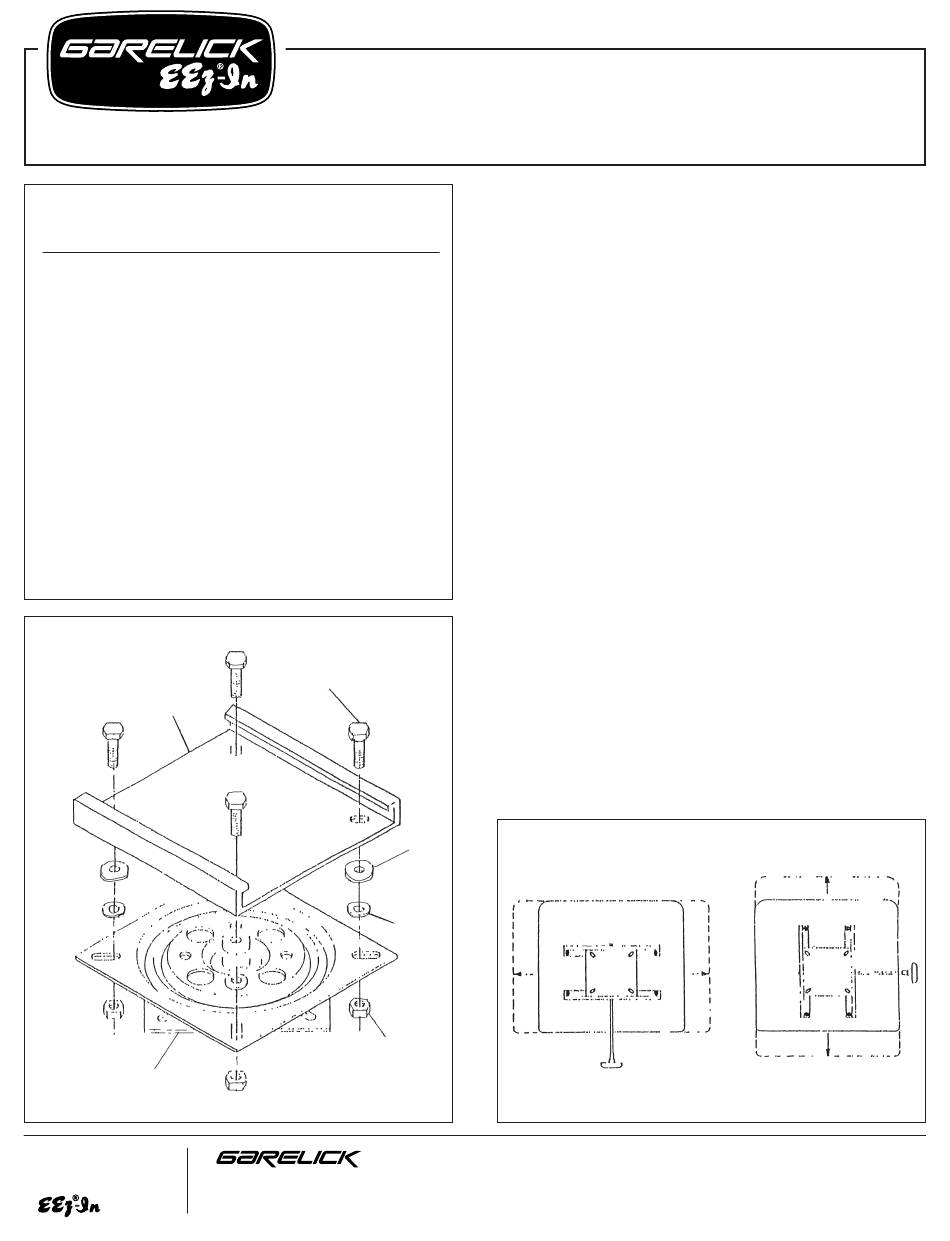

FIG. 1
B
A
Write for
a Complete
Catalog
Assembly and Installation Instructions for
Model 75006 Seat Slide Assembly
with Swivel
Description
Swivel
Anodized aluminum slideplate
1/4-20 x 3/4" hexhead capsrew
3/4" x 3/16" poly washer
1/4" washer
1/4-20 locknut
Anodized aluminum track w/hole
Anodized aluminum track w/nut
1/4-20 x 1" machine screw
(supplied with EEz-In
®
seal)
1/4" s.s. lockwasher
#14 x 1" s.s. screw
s.s. 3/8" hole washer
1" poly washer
s.s. locking rod
C
F
PO Box 8, 644 2nd Street
St. Paul Park, Minnesota 55071
ASSEMBLY INFORMATION
1. Check parts against parts list.
2. Read instructions completely before starting assembly.
3. NOTE: This product
Locknuts thread on harder than conventional nuts and require
a screwdriver and wrench for attachment.
TOOLS REQUIRED
1. Screwdriver
2. Drill
3. Wrench adjustable to 7/16"
ASSEMBLY INSTRUCTIONS
1. Take swivel (A), rotate its top and bottom halves so slotted holes
on bottom plate are exposed (fig. 1) and mark their position at
desired mounting location on boat.
2. Align slotted holes of both swivel (A) and slideplate (B). Refer to
fig. 1 and insert screw (C) through slideplate (B), polywasher
(D), washer (E), swivel (A) and secure with Iocknut (F). Repeat
step 2 for the three other slotted holes.
3. Determine in which direction slide travel Is desired (see fig. 2)
and then position aluminum tracks (G & H) on seat bottom as
illustrated in fig. 3. NOTE: Decide which side of seat locking rod
(N) is desired and then place aluminum track (G) on that side of
seat bottom.
4. Attach both tracks (G & H) to seat bottom by aligning the four
slotted holes #1 in tracks and the four machine-threaded T-nut
insert holes in seat bottom. Insert four 1/4-20 x 1" machine
screws (I) (provided with EEz-In
Screw them loosely into holes.
5. Grease the grooves of aluminum tracks (G & H) and the open
sides of slideplate (B).
FIG. 2
D
SEAT FRONT
E
SIDE TO SIDE
"ATHWART"
uses Iocknuts for a secure assembly.
®
seats) and use lockwashers (J).
please turn to other side
SEAT FRONT
FORE & AFT
Phone: 651-459-9795
E-mail: mail@garelick.com
On the Web: www.garelick.com
Form 12.112
4/04

Advertisement

loading

Summary of Contents for Garelick 75006

  • Page 1 Form 12.112 Assembly and Installation Instructions for Model 75006 Seat Slide Assembly with Swivel ASSEMBLY INFORMATION Parts List for Model 75006 1. Check parts against parts list. Ref. Factory 2. Read instructions completely before starting assembly. Letter Part No. Req.
  • Page 2 Form 12.112 Assembly Instructions – Model 75006 Seat Slide Assembly with Swivel 6. Slip slideplate (B) with attached swivel into grooves of aluminum FIG. 3 tracks as illustrated in fig. 3. Make certain that the open ends of the slideplate touch the endwalls of the grooves and that plate has free travel in both directions.
