Garelick 75400 Installation Instructions

Thank you for selecting our superior quality Garelick/EEz-In
Brand Portable Cockpit Table. Your table has been designed and
manufactured using the finest material, and was fabricated and
finished with boating in mind.
INSTRUCTIONS FOR 75400 SIDE MOUNT INSTALLATION
Hardware Required
(4) #10 stainless steel wood screws of suitable length
NOTE: Due to the variety of side coaming materials and
thicknesses used in boat construction, fasteners have not
been provided.
Refer to Fig. 1:
1. Determine your desired location of the table and coaming
wall bracket. For maximum stability, it is recommended
that the wall bracket be mounted approximately 11" up
from the deck floor. Make sure that the wall bracket is
perpendicular to the deck floor before marking four
mounting holes through the bracket and onto the side
coaming.
2. Drill four 1/16" diameter pilot holes. Fasten wall bracket
to coaming with selected fasteners.
3. Insert table leg into wall bracket. In the full down position,
table height will be approximately 26". Standard table
height is 31". Slide table onto horizontal portion of table
leg, level and secure in place with locking knob. Adjust
table to desired height and lock in position using side
coaming bracket locking knob.
Write for
a Complete
Catalog
Installation Instructions for
Portable Cockpit Tables
Models 75400, 75401, 75405, 75375
(over)
PO Box 8, 644 2nd Street
St. Paul Park, Minnesota 55071
Parts List

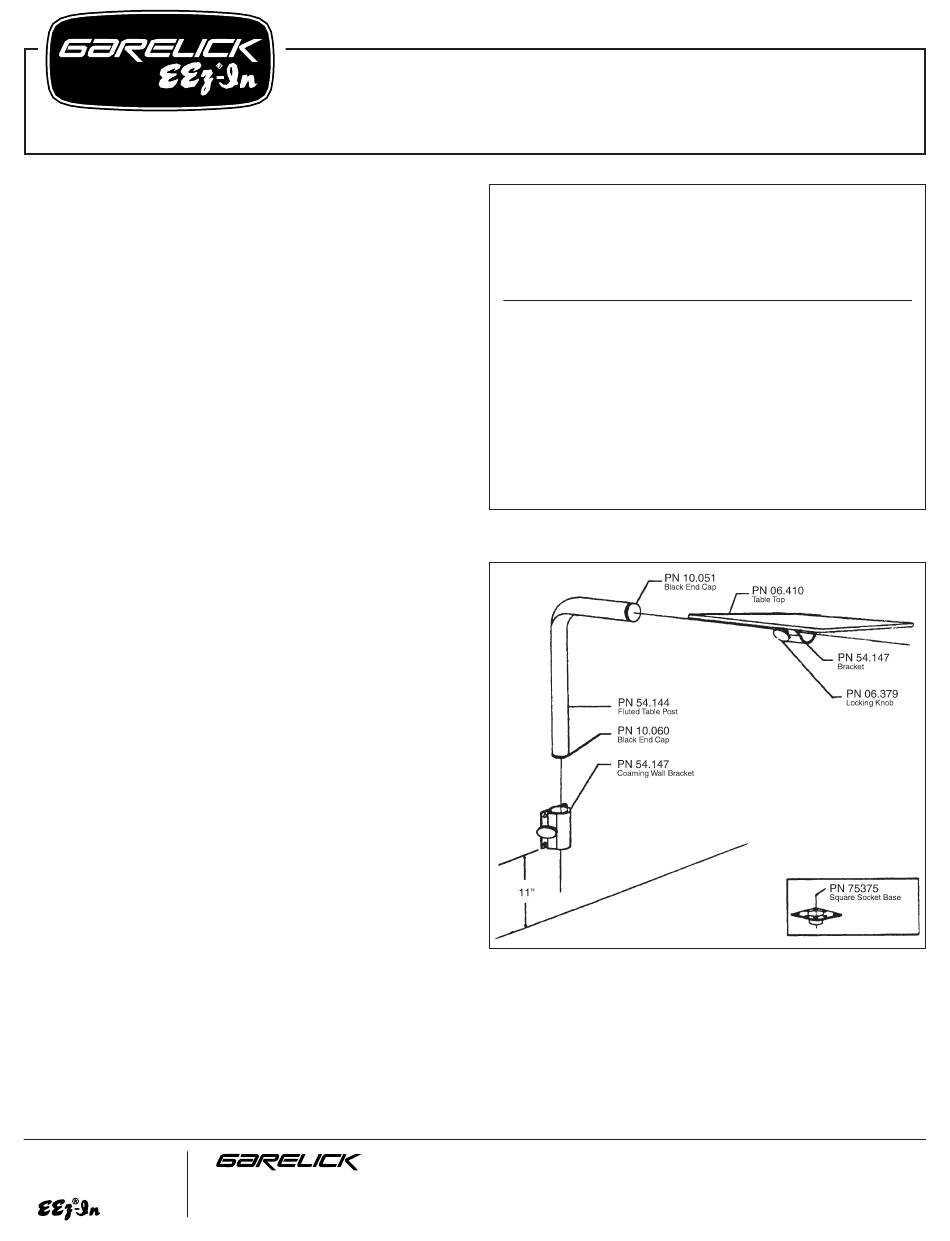

Refer to Fig. 1
Factory
Qty. Part No.
1 54.147 Coaming Bracket
1 54.144 2-1/4" Diameter Fluted Table Post
1 10.051 2-1/4" Diameter Black End Cap
1 10.060 2" Diameter Black End Cap
1 06.410 Table Top
1 75375 Square Socket Base
1 06.379 Locking Knob
