Garelick 31900 Assembly Instructions

Motor carrier

Advertisement

Quick Links

ASSEMBLY INFORMATION
1. Check parts against parts list.
2. Read instructions completely before starting assembly.
TOOLS REQUIRED
1. Wrench adjustable to 9/16"
2. Screwdriver
3. Hammer
CAUTION: Woodblock and tubing will crush if over-
tightened.
MOTOR CARRIER ASSEMBLY

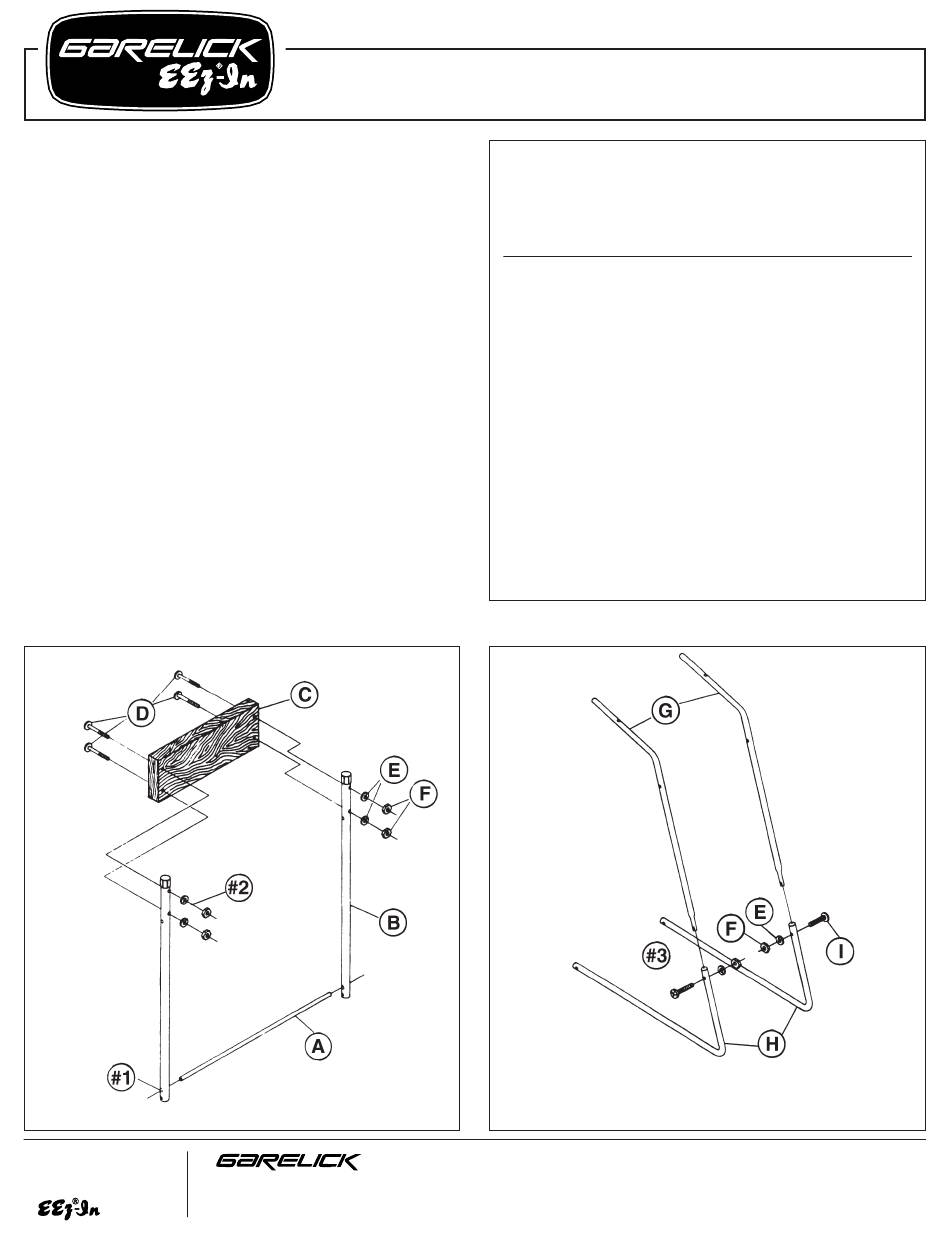

Refer to Fig. 1:
1. Slide each end of axle (A) through large holes #1 of
upright support tubes.
2. Attach woodblock (C) to top of upright support tubes by
aligning holes #2, inserting four carriage bolts (D) and
securing with fasteners (E) and (F) as illustrated (finger
tighten).
Refer to Fig. 2:
1. Insert handles (G) into SHORT ENDS of J-tubes (H).
2. Align holes #3 so that the handles will point AWAY from
each other, insert bolts (I); secure with fasteners (E) and (F)
as illustrated (finger tighten).
FIG. 1
Write for
a Complete
Catalog
Assembly Instructions for
Model 31900 Motor Carrier
(over)
PO Box 8, 644 2nd Street
St. Paul Park, Minnesota 55071
Parts List
Model 31900 Motor Carrier
Ref.
Factory
No.
Letter
Part No.
Req.
A
51.033
1
B
51.035
2
C
06.318
1
D
03.003
4
E
03.118
14
F
03.023
14
G
51.022
2
H
51.032
2
I
03.074
2
J
03.089
4
K
51.014
1
L
03.088
4
M
51.034
1
O
49.096
4
P
03.039
2
Q
49.003
2
R
03.022
2
S
06.027
2
FIG. 2
On the Web: www.garelick.com
Form 12.123
Description
Axle
Upright support tube
Plastic Block
-20x3
" carriage bolt
1
1
4
2
" lockwasher
1
4
-20 nut
1
4
Handle (L&R)
J-tube
-20x1
" bolt
1
1
4
4
-20x2
" bolt
1
3
4
4
Handle brace, 25"
-20x2
" bolt
1
1
4
2
Bottom brace, 18
"
1
2
Wheel
Pushnut
Caster
3/8-16 locknut
Poly handgrip
Phone: 612-459-9795
E-mail: mail@garelick.com
5/98
