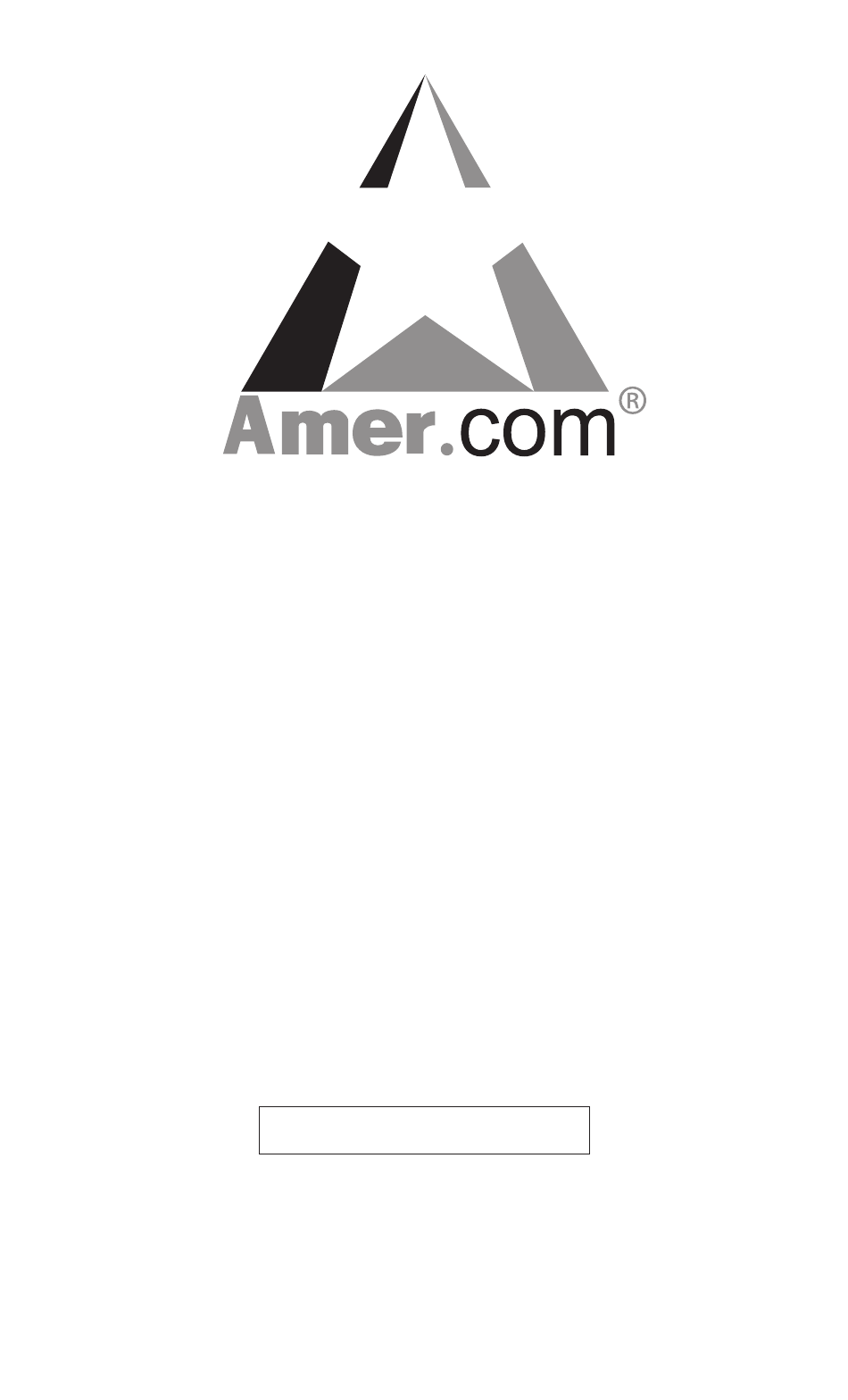

Page 1
10/100Mbps Fast Ethernet Switch User’s Guide Version 4.0 P/N: ATC020507SR16n Rev.1 This User's Guide contains important information regarding the installation of your switch. Please read it completely before beginning installation. For future reference, record the serial number of your network switch in the space below: SERIAL NUMBER The serial number is located on the bottom of the switch.
Page 2
Amer.com, as stipulated by the United States Copyright Act of 1976. Amer.com reserves the right to make changes to this document and the products which it describes without notice. Amer.com shall not be liable for technical or editorial errors or omissions made herein;...
10/100 Fast Ethernet Switch User’s Guide EATURES 24 UTP ports all come with NWay auto-negotiation and operate at 10/100 Mbps for connection to servers and hubs. All ports can auto-negotiate for full or half-duplex operation. All ports support auto MDI/MDIX, so there is no need to use cross-over cables or an up-link port.
ETUP Unpacking Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following items: One SR24n 10/100 Fast Ethernet Switch One AC power cord This User’s Guide Four rubber feet with adhesive backing...
10/100 Fast Ethernet Switch User’s Guide Desktop or Shelf Installation When installing the Switch on a desktop or shelf, the rubber feet included with the device must be first attached. Attach these cushioning feet on the bottom at each corner of the device. Allow enough ventilation space between the device and the objects around it.
10/100 Fast Ethernet Switch User’s Guide Figure 2.2 Attaching the mounting brackets to the 10/100 Fast Ethernet Switch If any item is found missing or damaged, please contact your supplier for replacement. Module Installation An optional two-port fiber module model SRmsc (SC type connector) can be installed in the front panel.
Page 8
10/100 Fast Ethernet Switch User’s Guide Next, make sure that the device is powered off and then remove the plain bracket on the front of the switch. Figure 2.4 Removing the plain bracket After removing the plain bracket, slide the module in the guide rails all the way into the slot and secure the screws.
The front panel of the Switch consists of 24 10/100 Mbps MDI-II/MDI-X ports and LED indicators. 10/100 PORTS LED INDICATORS Optional Fiber Module (MDI-II/MDI-X) Figure 3.1 Front panel view of the SR24n Switch Rear Panel The rear panel of the Switch consists of an AC power connector. AC POWER CONNECTOR AC LINE...
Switch. The following shows the LED indicators for the Switch along with an explanation of each indicator. Figure 3.3 The SR24n Switch LED indicators Power This indicator operates when the Switch is turned on. If this indicator is not lit, check the AC power connector to ensure proper insertion of the power cord.
Page 11
EIA/TIA-568 100-ohm STP (100m) 100BASE-FX: Multi-mode (62.5/125µm or 50/125µm) fiber cabling with SC connector Number of Ports: SR24n : 24 x 10/100 Mbps ports SRmsc : 2 x 100BASE-FX ports Physical and Environmental AC inputs: 100 - 240 VAC, 50/60 Hz (internal universal power supply)
Page 12
Amer.com Warranty Policy Limited Lifetime Warranty In the event of a defect in quality or workmanship, Amer.com will repair or replace any hardware product sold by Amer.com with new or reconditioned parts free of charge in North America for a limited lifetime period unless otherwise specified on the sales invoice from the date of original purchase.
