BeachTek High Definition Adapter DXA-6HD Operating Instructions

Specifications
Input Level MIC setting:
LINE setting:
Gain 40 dB
Output Level +18 dBu max
Frequency Response 20Hz to 20 KHz (-1 dB)
THD + N Less than 0.03% @ 1 kHz, +4 dBu output
Signal-to-Noise Ratio 90 dB @ -10dBu input
Phantom Power Dual regulated 48 volt power supplies
Current to 14 mA (direct short)
Battery Type One 9 volt alkaline battery
LED battery indicator
Battery Duration 4 hours typical (no phantom)
Case Powder coated aluminum
Dimensions 6.25" L x 2.5" W x 1.25" H
Weight 16 oz
Limited One Year Warranty
This warranty covers any defects or malfunction in your new BeachTek adapter
for one year.
BeachTek will replace any defective or malfunctioning adapter, within the
warranty period, with a new unit at no charge. The warranty does not cover
damage resulting from accident, alteration, misuse or abuse. The device must
be sent to our service center at your expense.
Should you require service please contact us first before returning the unit to
us. Return instructions can be found on our website at www.beachtek.com/
questions.html
Upon receiving the returned adapter it will be inspected and replaced if found
defective. The unit will be shipped back to you within five business days at our
expense.
BeachTek Inc.
1855 Kirschner Road, Suite 230
Kelowna, BC, V1Y 4N7
tel (416) 690-9457
email adapter@beachtek.com
web www.beachtek.com
©2008 BeachTek Inc.
-40 dBu typical
+4 dBu typical
DXA-6HD

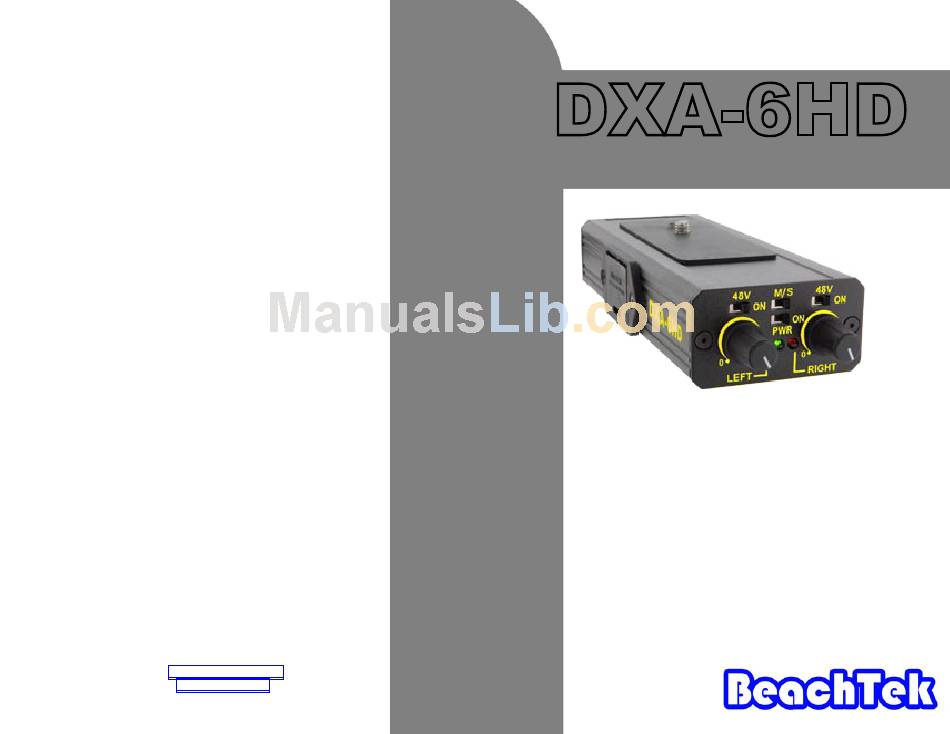

Operating Instructions for the DXA-6HD High Definition Adapter
- For use on the Sony FX1
The BeachTek DXA-6HD is a two channel, XLR adapter with
built-in low noise preamplifiers and 48 volt phantom power supplies.
This adapter is designed to easily attach two professional, balanced
microphones or wireless systems to the Sony FX1 camcorder.
The DXA-6HD is very easy to set up and use. Its rugged construc-
tion ensures years of use and its compact size fits neatly under the
camcorder - can also be mounted to any standard tripod. The DXA-
6HD provides exceptionally quite preamplifiers to provide clean,
powerful audio from virtually any microphone to ensure the best
possible sound recording.
• Before using this high quality device, please read this
operating manual thoroughly to obtain the highest performance.
• Please contact us if you have any problems or questions.
