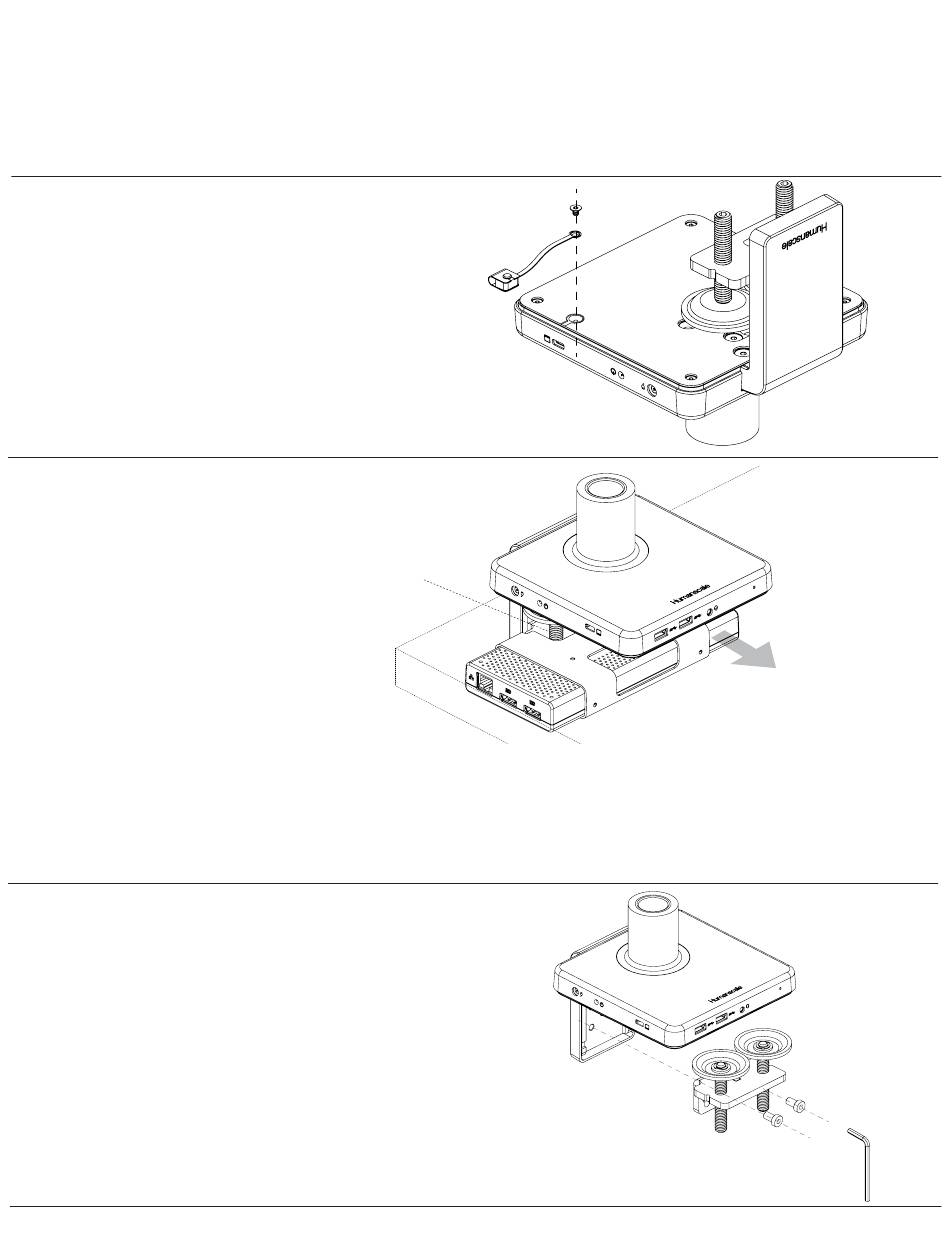

INSTALLING M/CONNECT 2 ONTO EDGE OF TABLE
Caution: Maximum weightload of M/Connect 2 is as follows: M2: 20 lbs .
OP T ION A L : INSTA LL USB - C C A BL E R E TA INING CLIP
Turn M/Connect 2 upside down to access screw hole
• Screw cable retaining clip into sheet metal base
ST EP 1
Place M/Connect 2 Clamp onto Table
• Slide mount against work surface edge and
fully tighten clamp screw (fig. A)
INSTALLING M/CONNECT 2 THROUGH A GROMMET
HOLE OR SYSTEM FURNITURE
ST EP 1
Disassemble Clamp
• Remove the two screws (fig. B) using hex key (fig. D) and detach
the smaller clamp bracket (fig. C) from the larger bracket
6
M8: 40 lbs.
M/Flex: 60 lbs.
Do NOT exceed maximum weightload limits.
A
C
B
D
