Summary of Contents for Humanscale M/Connect 3 Pro Dock

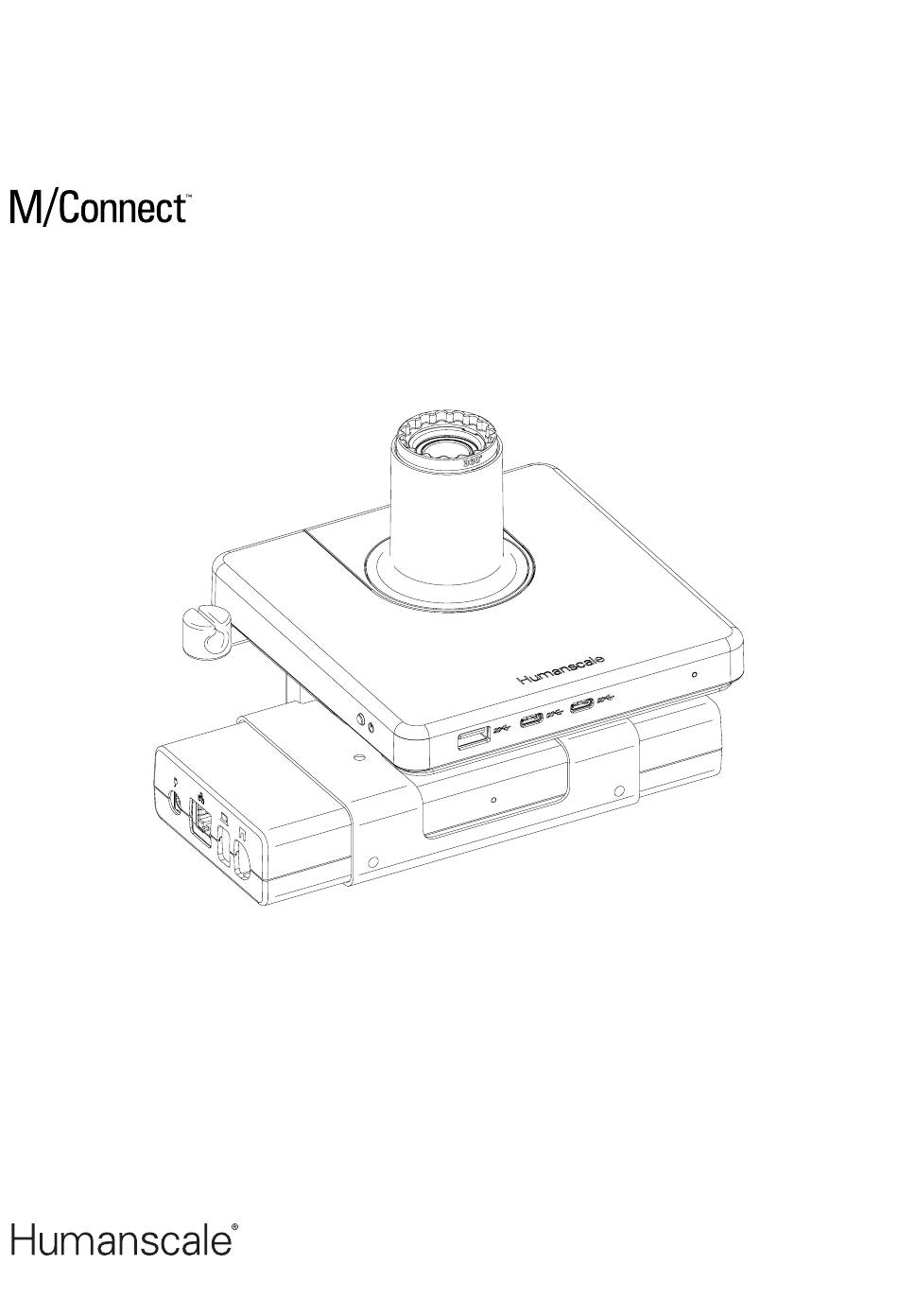

  • Page 1 Pro Dock Assembly Instructions FR 15 North America: +1 800 400 0625...
  • Page 3: Parts Included

    M/Connect Hub and Dock Power Adapter Installation Guidelines This product is intended to be used with Humanscale’s Monitor Arm product line and the following office desk styles placed on a non-skid surface: 1. Systems Furniture with panel hung surfaces 2. Systems Furniture with a floor mounted panel behind the desk 3.
  • Page 4: Identifying Ports

    Identifying Ports ① ② ③ ④ Front Panel Component Description ① USB-A Port USB 3.2 ② USB-C Port (2) USB 3.2 ③ Hub Power LED Blue: Power On Blue (Dimmed): Host Connected ④ Dock Power LED White: Power On Blue: Host Connected...
  • Page 5: Left Panel

    Identifying Ports ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Left Panel Right Panel Component Description ① Power Button Powers unit on and off ② Max 30W PD/QC Compatible (Limited to 15W when USB-A ③ is in use) USB-C Charging Port ③...
  • Page 6 Assembly Instructions Installing M/Connect Onto Edge of Tabl Clamp Mount A - For installation on open edge of work surface: Slide Mount against work surface edge. ① F ully tighten Clamp screws(A) with 4mm hex key. ② ① ② B - For installation on work surface positioned against a wall or through a grommet hole: NOTE: Grommet holes must be at least 3”...
  • Page 7 Sliding Desk Mount Slide unit with loosely mounted bracket against work surface edge. ① Tighten both set screws (B) evenly into bracket to a snug fit. ② ② ① Bolt-Through Mount Drill 1/2” hole in desired location NOTE: To ensure M/Connect makes full contact with desk, locate hole at least 2” away from back edge of desk. Lower M/Connect onto desk aligning bolt with hole.
  • Page 8 Attaching a Monitor Arm to M/Connect CAUTION: Maximum weightload of M/Connect is as follows: M2.1: 15.5 lbs. - M8.1: 28 lbs. - M10: 40 lbs. - M/Flex: 60 lbs. total M10 is not to be used on M/Flex when mounted to M/Power DO NOT exceed maximum weight limits.
  • Page 9 Attaching and Removing Dock To attach dock, slide onto the clamp bracket (F) until it snaps into place. ① To remove dock, pull away from the clamp while applying a slight downwards force. ② ① ② Mounting the M/Connect Dock Horizontal Alignment Screw dock bracket (G) beneath work surface and slide dock in.
  • Page 10: Vertical Alignment

    Vertical Alignment Screw dock bracket beneath work surface and slide dock in. ① Install locking screw (H) through bracket into dock to fully secure. ② ② ① Lock Cable Pass-Through Orient dock inside bracket to enclose gap (J) ③ ③ Pass lock cable through gap and secure to fixed object.
  • Page 11 Connecting Cables to M/Connect ① Bridge Cable Plug the bridge cable from the hub into the corresponding port on the underdesk dock, ensuring that the plug is fully inserted into the housing. ① Upstream Cable Plug one end of the upstream cable into the corresponding port on the underdesk dock, ensuring that the plug is fully inserted into the housing.
  • Page 12: Using M/Connect

    Power Cable Insert power cable into power jack ① ① Using M/Connect Connect laptop to M/Connect using the upstream cable. ② Press power button on hub to turn on M/Connect if necessary ②...
  • Page 13 Replacing the M/Connect Hub Remove any cables or devices plugged into the M/ ① Connect Hub Remove the top cover by carefully pulling up around the edges ① Using a 3mm hex key, remove the screw retaining the bridge/accessory cable and unplug the cable ② Using a 3mm hex key, remove the center locking screw ③...
  • Page 14: Electrical Specifications

    The FCC requires the user be cautioned that any changes or modifications made to this device that are not expressly approved by Humanscale may void the user’s authority to operate the equipment. Connections to this device must be made with shielded cables in order to maintain compliance with the Class B limits in the FCC Rules and Regulations.
  • Page 15: Pièces Fournies

    Affichage unique - 3 840 x 2 160 p60 Affichage double - 3 840 x 2 160 p60 Ce produit est destiné à être utilisé avec la Voir page 5 ligne de bras support-écran d’Humanscale et les types de bureaux suivants, placés sur une Instructions d’assemblage surface antidérapante : 1.
  • Page 16 Serrer uniformément et fermement les deux vis de réglage Fixer et retirer la station d’accueil (B) sur le support. ② Voir page 7 , Pour fixer la station d’accueil, la faire glisser sur le support Montage avec boulonnage de fixation (F) jusqu’à ce qu’elle s’enclenche. ①...
  • Page 17 Caractéristiques techniques La FCC exige que l’utilisateur soit averti que toute modification apportée à cet appareil et qui n’est pas expressément Environnement approuvée par Humanscale peut annuler l’autorisation de l’utilisateur d’utiliser l’équipement. Température - en fonctionnement de 0 °C à 40 °C Les connexions à...
  • Page 18 Humanscale Corporation 1114 Avenue of the Americas New York, NY 10036, États-Unis +1 (800) 400-0625 Avis de conformité NMB- 003 Innovation, sciences et développement économique Canada : CAN ICES-3 (B)/NMB-3(B)
  • Page 20 For our terms and conditions please go to https://www.humanscale.com/about/legal-information/terms-conditions.cfm © 2023 Humanscale Corporation. The text and artwork are copyrighted materials. All rights reserved. The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries.
