Humanscale M/Connect 2 User Manual page 5

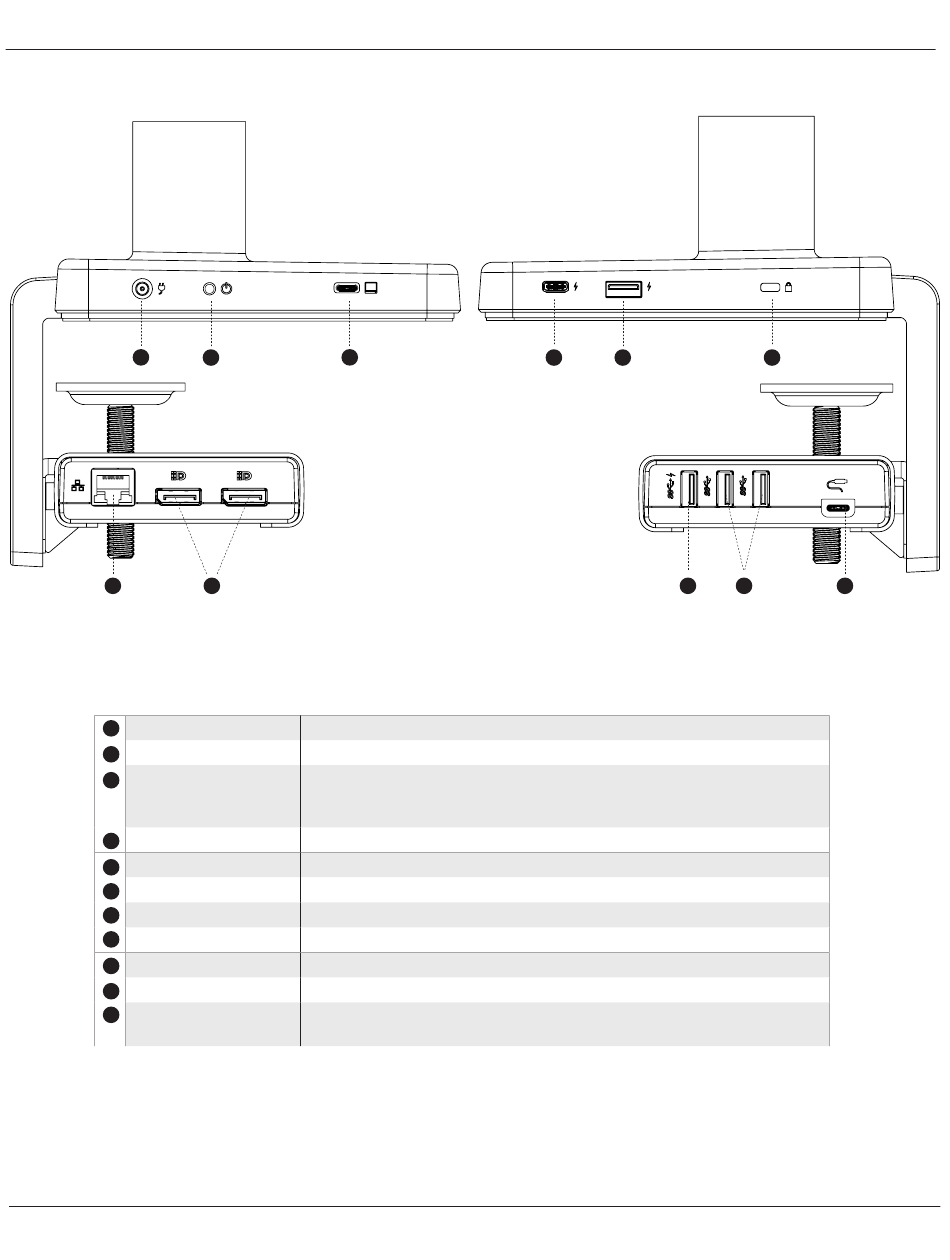

ID ENT IF Y ING COMP ONENT S
1
7
Left Panel
Component
DC in
1
Power Button
2
USB-C Upstream Port
3
USB-C Charging Port
4
USB-A Charging Port
5
Kensington Slot
6
Ethernet
7
DisplayPort (2)
8
USB-A Port
9
USB-A Port (2)
10
USB-C Bridge Port
11
2 3
8
Description
20V, 7 .5A DC to M/Connect 2
Powers unit on and off
Connects full featured USB-C cable to laptop, Supports PD charging at
60W max. Important: only use USB-C cable provided with unit, other
cables may void product warranty
Charges USB-C devices 5V, 3Amax
Charges USB-A devices 5V, 2.4A max
To secure unit from theft
To connect network to M/Connect 2
Connects to DisplayPort of monitor
USB 3.1 Gen1, Supports charging 5V, 2.4A
USB 3.1 Gen1
Connects cable supplied from the top hub; flat cable plug face has to face
upward when plugging
