Maintenance
2. Carefully lift out the battery pack, then press down on the battery lead connector release tab
and remove the connector from the battery pack
IMPORTANT:
Do not pull the battery harness out of the housing.
3. Insert the battery connector into the battery pack, until it locks (clicks) into place.
NOTE:
NOTE:
i
Do not force the battery pack into the Thermal Imager, it should set easily into place.
4. Feed the slacked harness into housing, as you install the battery pack into the housing
(Figure
10-5).
(Figure
10-4).

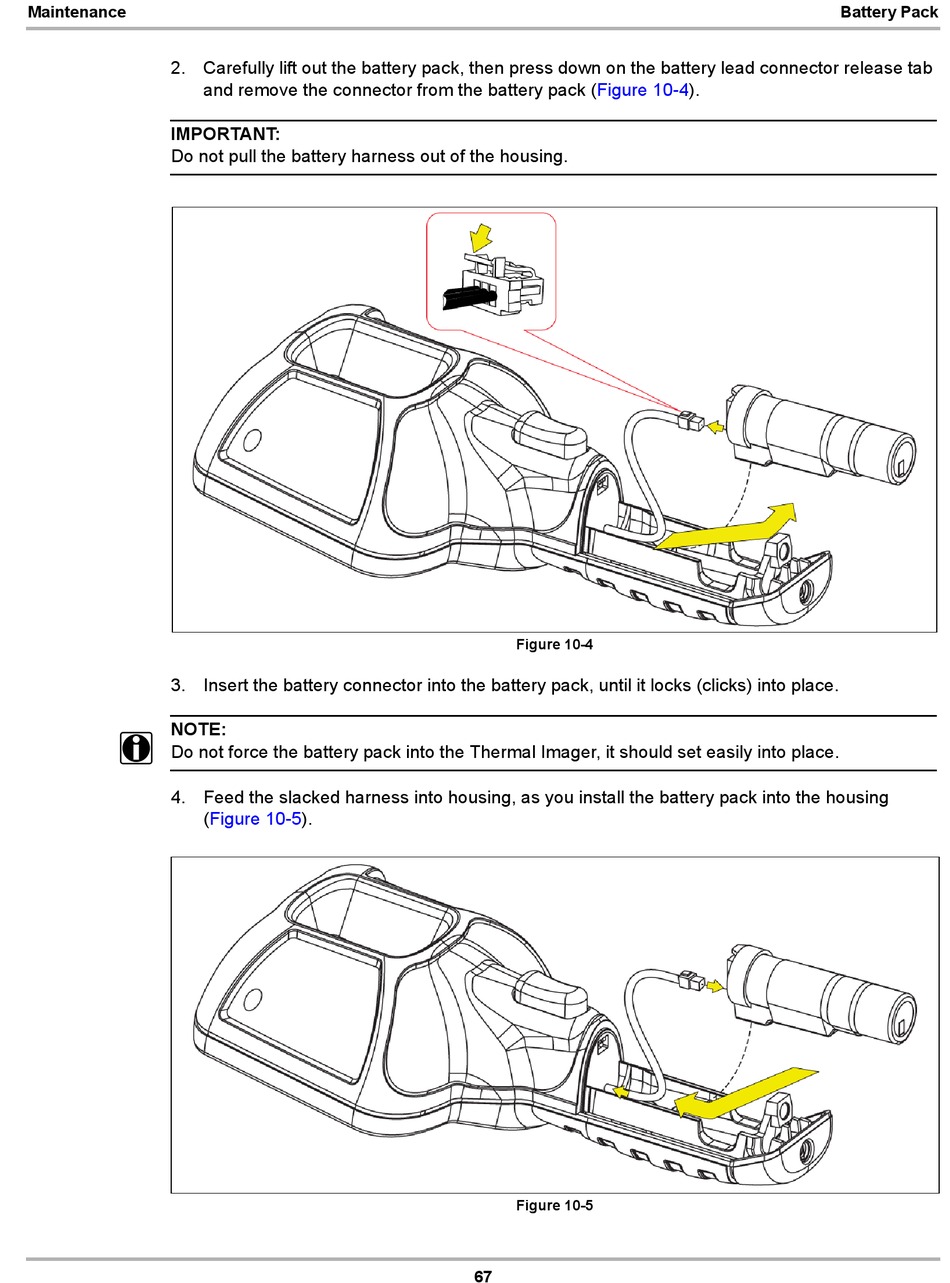

Figure 10-4
Figure 10-5
67
Battery Pack
