Operation

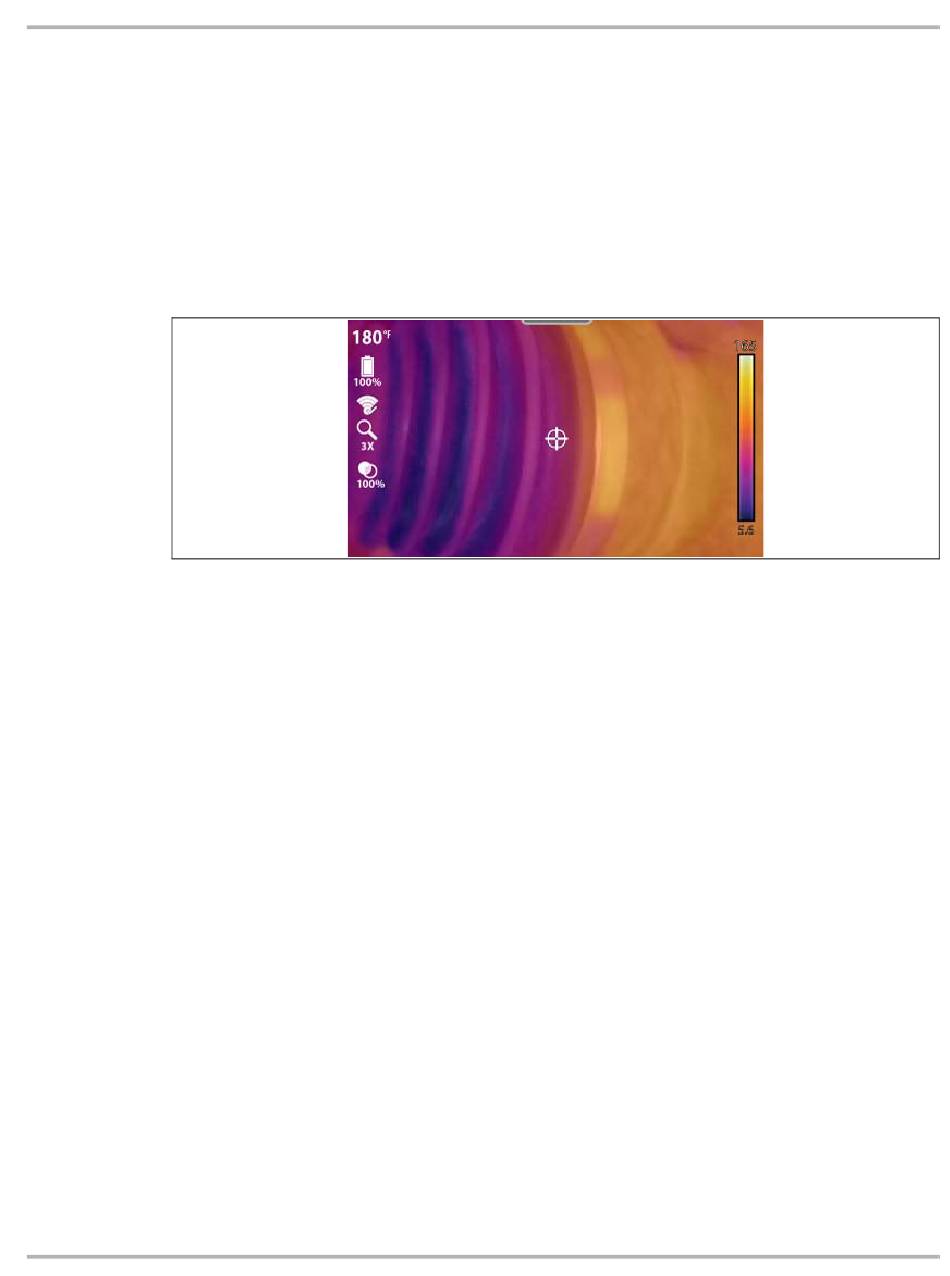

4.4.4 Using Full Thermal Mode

Full Thermal Mode displays objects at 100% thermal overlay opacity (full thermal image).
See
After startup, the default screen is displayed, see
feature and icon descriptions.
1. Press the Up control button repeatedly until 100% is displayed under the opacity icon.
The imager is now in Full Thermal Mode (100% opacity).
2. Point the imager at the desired object(s) to be measured.
Full Thermal Mode - Operation Options
Pull the Screen Capture Trigger to save an image of the active screen. See
•
Saving Images
To change view settings (e.g. zoom, picture-in-picture, split-screen) see
•
Settings (Live Mode)
To change the emissivity settings, see
•
See
•
The thermal image is displayed using the color palette selected to define object temperatures.
•
Use the color palette range indicator to determine the temperature of objects within the
thermal image. To change the color palette settings, see
additional information.

4.4.5 Using Overlay Opacity Mode

Overlay Mode displays objects using visible light with a selectable thermal overlay opacity of 20,
40, 60 or 80%.
See
After startup, the default screen is displayed, see
and icon descriptions.
1. Press the Up / Down control buttons to toggle the opacity percentage level (under the opacity
icon) between 20% and 80%.
2. Point the imager at the desired object(s) to be measured.
Startup / Shutdown (On/Off)
on page 32 for additional information.
on page 10.
Settings on page 18 for information on all device settings.
Startup / Shutdown (On/Off)
on page 8 for startup and battery charging information.
Default Screen Features
Figure 4-1
Emissivity on page 29. for additional information.
on page 8 for startup and battery charging information.
Default Screen Features
12
Basic Operation (Live Mode)
on page 7 for
Capturing and
Changing View
Color Palette on page 24 for
on page 7 for feature
