JETI model Max BEC 2D Manual page 8

•
Using the Jeti Box terminal, navigate to the Output (x.x) Volt setting (See section 4.3
SETTING - Configuration Options) and change to your desired value. This can be done in

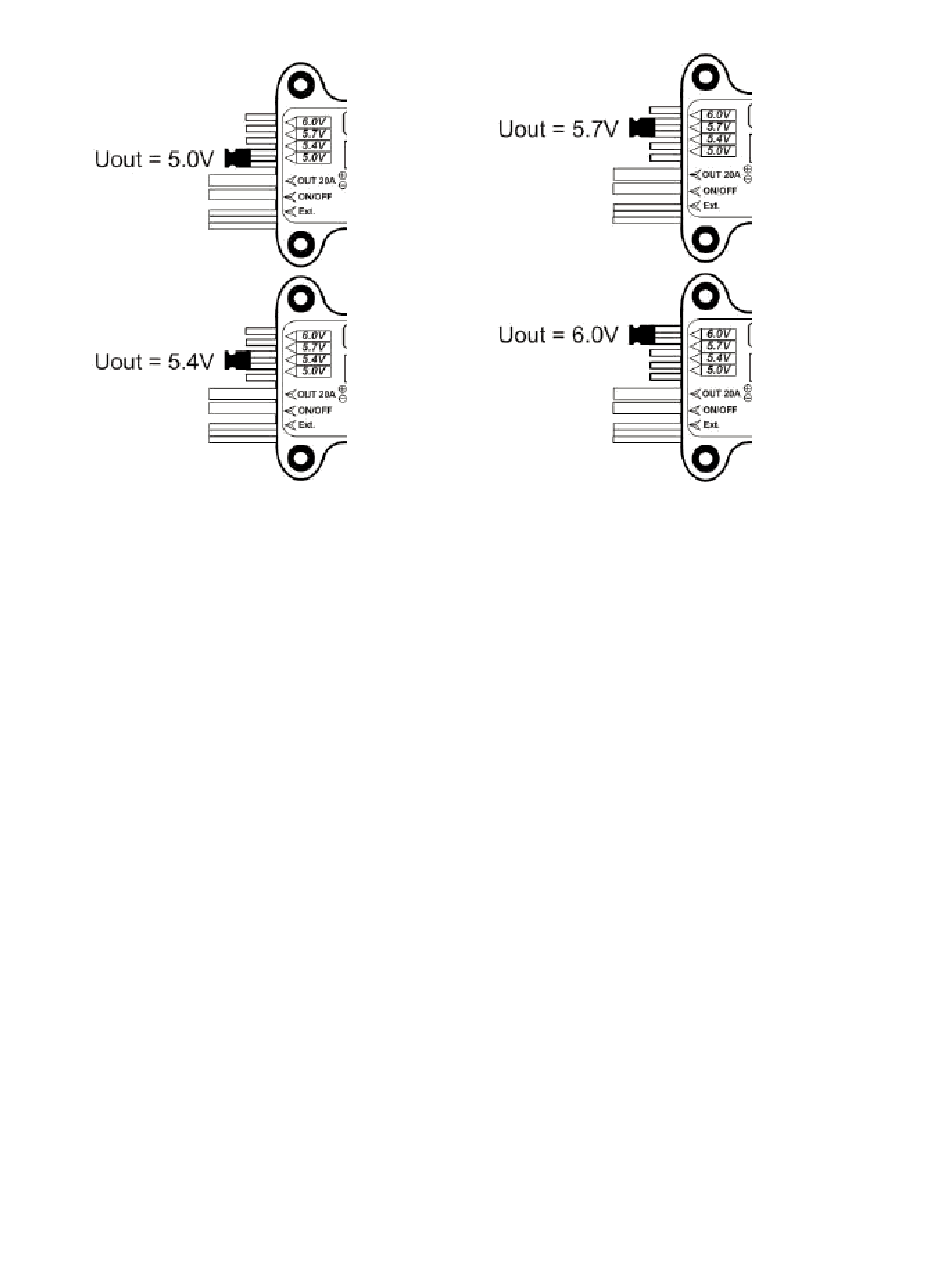

steps of 0.1V independently of the position of the short-circuit/jumper plug.
The factory-default setting is that the output voltage is set using the short-circuit/jumper plug.
6. Powering On
The system is activated by an external magnetic switch that contains the circuitry for the
evaluation of magnetic fields with a diametrically polarized magnet. Since the magnet is
polarized, the orientation of the magnetic key is important when being offered to the switch-plate.
The magnet is supplied with an aluminium housing, which marks the correct orientation in which it
should be offered to the switch-plate. Please refer to the safety precautions outlined in section 8
for correct handling of magnets.
The switch is designed to be mounted on the fuselage of your model. When the key is offered to
the switch, the green LED will flash and after approximately 1 second, the LED will be
continuously lit, indicating that the BEC is now active.
For de-activating the BEC, the same principles apply. Offer the key to the switch in the correct
orientation. The green LED will flash and after approximately 1 second, the LED will go out, at
