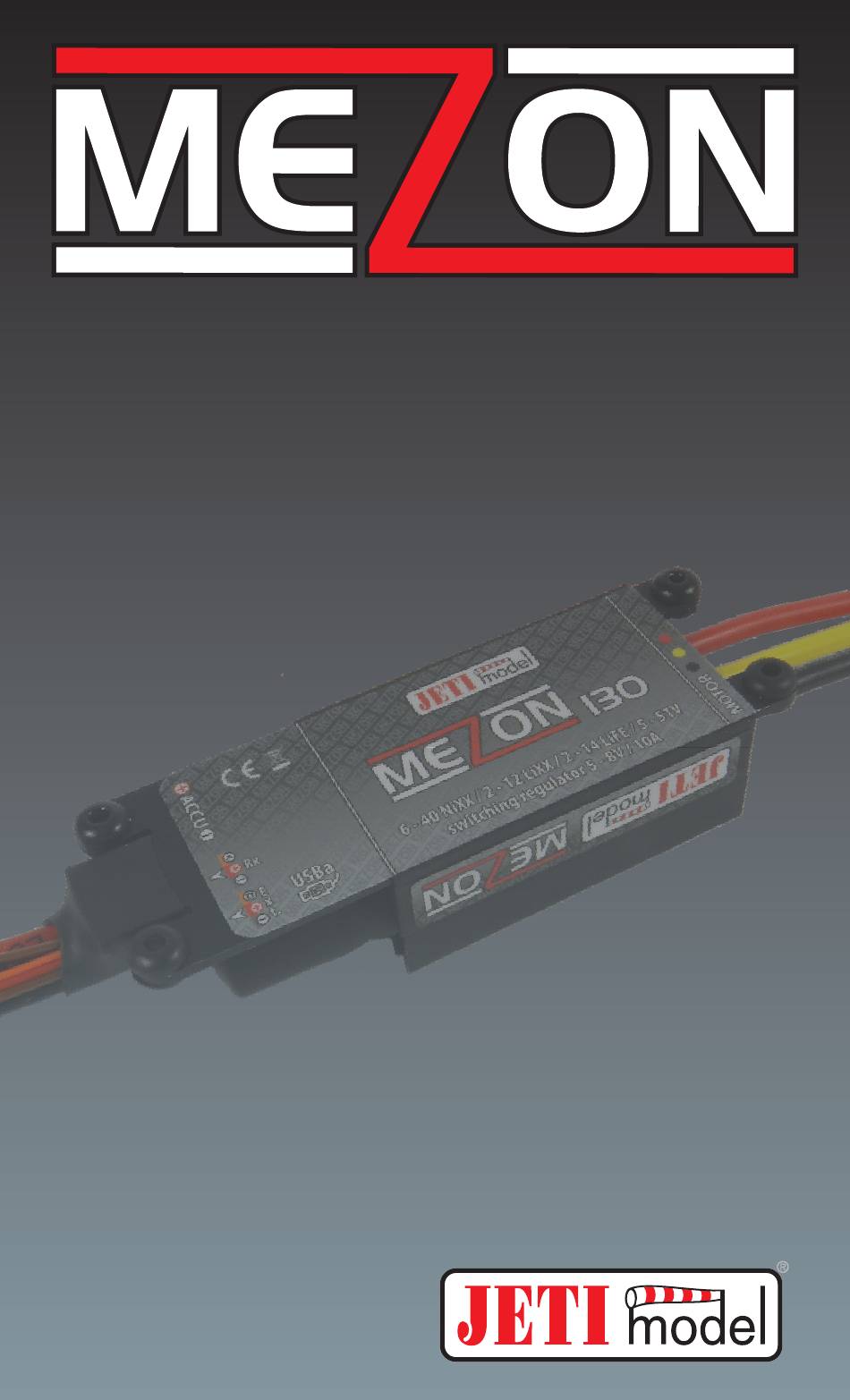

  • Page 1 E L E C T R O N I C E L E C T R O N I C S P E E D S P E E D CONTROLLER CONTROLLER FOR BRUSHLESS MOTOR FOR BRUSHLESS MOTOR Compatible with the DUPLEX EX telemetry system...
  • Page 2: Table Of Contents

    English ....................03 1. Introduction ................... 03 2. Overview ....................04 2.1 MEZON Controllers with BEC .............. 04 2.2 OPTO-Version of the Controller MEZON ..........05 3. Connecting the Controller ................ 06 3.1 Soldering the Connectors ..............07 3.2 Cable Lengths and Connector Care ............09 3.3 Connecting the MEZON to the JETIBOX ..........
  • Page 4: English

    English 1. Introduction You have purchased one of our new and innovative MEZON brushless model motor controllers. This new line of controllers is based on the successful line of SPIN Pro controllers. The MEZON controller offers progressive control combined with high efficiency to optimize your brushless motor’s operation.
  • Page 5: Overview

    2. Overview Both OPTO and BEC versions of the MEZON controller are available. The MEZON controllers are offered in a wide spectrum from the MEZON 90 to the MEZON 165 Opto. 2.1. MEZON Controllers with BEC The BEC version of the MEZON Controller contains a constant voltage, switching regulator for providing current to your servos and receiver from your flight battery.
  • Page 6: Opto-Version Of The Controller Mezon

    2.2. OPTO-Version of the Controller MEZON The OPTO version of the MEZON Controller contains no voltage regulator (BEC) which would provide the current for your servos and receiver from the main flight battery. This means that a separate receiver and servo current source must be provided. With a correctly connected OPTO controller any potential interference caused by controller operation can not be transferred to or interfere with the receiver and servos.
  • Page 7: Connecting The Controller

    3. Connecting the Controller The controller should be connected to the flight battery and motor using high quality connectors. Please see the guidelines below for proper connector installation and cable lengths. When you switch-on the MEZON controller, you will hear signal tones from the motor. The tones below indicate for following conditions: The controller has recognized a correct control pulse which complies with the STOP (low throttle) position and is prepared to start the motor.
  • Page 8: Soldering The Connectors

    3.1 Soldering the Connectors Use only new and high quality connectors and properly solder them to the cables. We recommend bullet style connectors G4 (max. 75 A) and G5 (max. 150 A). In order to ensure that after soldering no bare cable is exposed out of the connector soldering cavity, remove the cable insulation in the exact length corresponding to the cavity depth.
  • Page 9 Insert the soldering iron tip into the cavity of the connector to be soldered and slowly add solder. Let it flow into the cavity. Only fill the cavity so far (not all the way full) so that when you insert of the tinned cable end, no solder overflows.
  • Page 10: Cable Lengths And Connector Care

    Check to make sure that you do not accidentally have any solder or flux in any of the connector’s moving parts. Excess flux may cause your connector to have a poor or intermittent connection. This can be removed by washing the connector with a stiff brush in alcohol.
  • Page 11: Connecting The Mezon To The Receiver

    3.4 Connecting the MEZON to the receiver • • • The red, “EXT” connector can be connected to a free receiver channel to share the BEC output of your MEZON. Because you are now using two cables and two plugs the voltage loss at high currents between BEC and receiver will be decreased.
  • Page 12: Battery Connection / Disconnection Procedure

    Receiver Duplex Rx Fig. 5: Connection for the MEZON telemetry. Fig. 6: Connection for the MEZON telemetry via an Expander 3.5 Battery connection / disconnection procedure For the battery and controller connections we recommend the use of the JETIMODEL Anti Spark G5,5 connectors.
  • Page 13: Connecting The Rpm Output

    Battery Connection Method: Connect the controller’s negative terminal (normal, plain connector) to the battery’s negative terminal. Next, connect the controller’s positive terminal (Jeti “AntiSpark” connector) to the battery’s positive terminal. Battery Disconnection Method: Disconnect the controller’s positive terminal (Jeti “AntiSpark” connector) from the battery’s positive terminal.
  • Page 14: Controller Set-Up Menu

    4.1 Controller Set-Up Menu MEZON 130 6-51V SBEC 6/15A Measurement menu Measurement menu Settings menu Actual values > < Min/Max log. > < Controller > Description of modes: Operation mode Operation mode Operation mode Normal > < Fast response > <...
  • Page 15 NORMAL - Basic controller setup, mostly for model airplanes FAST RESPONSE - A very short response time when a change in the throttle input occurs. The startup speed of the motor is set in the Acceleration menu. This setup is suited for aerobatic competition models, for helicopters with a mix for collective blade attack control and engine power (throttle curves), for an external governor or different flybarless systems and multi-rotor systems.
  • Page 16 Example of a Helicopter Autorotation Set-Up. The global acceleration is set to an acceleration time of 10s (from 0 to 100%). The autorotation acceleration is set to an acceleration time of 2s (from 0 to 100%). Now we switch off the motor with a throttle input value corresponding to motor stop (lowest throttle position).
  • Page 17 Brake mode <> Brake mode <> Brake mode <> Brake mode <> Brake mode <> Brake OFF SOFT 30/100/1,5s MEDIUM 50/100/1s HARD 70/100/0,5s Manual setting Brake begin pwr < 20% > Brake end pwr < 100% > Brake dead time <...
  • Page 18 Init Point Type - AUTO: In this mode the Mezon will automatically set the initial point based upon what it detects as the low throttle position when the ESC/receiver are switched on. This happens within the first half second once the ESC is powered. (Recommended) Init Point Type - FIXED: In this mode you can set the Initial(arming) and End Points as fixed values in ms.
  • Page 19: Limits Set-Up Menu

    4.2 Limits Set-Up Menu In the Limits menu, you can change the ESC settings for battery type, cell count, low voltage cut-off, current protection and temperature protection. MEZON 130 6-51V SBEC 6/15A Measurement menu Measurement menu Setting menu Setting menu Actual values >...
  • Page 20 Acumulator type – Here is where you select your flight battery type: NiCd/NiMh – the cut-off voltage can be set according to your desired minimum single cell voltage. LiIon/LiPol – Here you can either allow your Mezon to automatically detect the number of cells (this is useful if you are using packs with different cell counts), or you can specify the number of cells.
  • Page 21: Motor Set-Up Menu

    TIMED 30s – after exceeding any of the selected limits the power gradually decreases in a period of 30 seconds. If the conditions during this time change, i. e. the event which triggered the cut-off falls back below the limit, then the power starts to increase. Slow down –...
  • Page 22: Bec Set-Up Menu

    acceleration time. This menu controls the force with which the motor starts. Timing – Motor timing (ignition advance) settings within the range of 0° to 25°. You may also select automatic timing. These settings will vary with the motor type. Recommended values: 2 pole motors…0-5°, 4 pole motors…0-10°, 6 pole motors…...
  • Page 23: Telemetry

    5. Telemetry The MEZON controller measures your flight battery voltage, current, consumed battery capacity, power, temperature, RPM, BEC current and voltage and transmits the data with aid of the 2,4 GHz DUPLEX-system to the DC/DS-16 transmitters, displays them there on the LCD- display and also stores the data if your telemetry data recording is activated.
  • Page 24: Telemetry Ex

    Actual motor speed: The value is shown in RPM and corresponds to the controller set-up (proportional to number of poles and gear ratio of the gear box). Actual voltage of the flight battery, Actual current flowing from the flight battery into the controller, Actual temperature of the controller Other measurement data is available in the “Actual values”...
  • Page 25: Statistics

    5.3 Statistics During operation, MEZON controllers carry out a statistical analysis and also log the data into its internal memory. After switching-on the controller, the data logs of the preceding controller operation (flight) are displayed. This data is no longer available once the motor is started. After 10 seconds of a new motor run the stored data logs are deleted and a new data log starts –...
  • Page 26 Status –any error code status is displayed. If any limits are exceeded the following messages appear: F – Huge over-current condition. This error causes the motor to stop immediately. You should check for any ESC or motor damage and also check for any wiring defects. IM - the controller maximum factory current limit has been exceeded PB - throttle control pulse error –...
  • Page 27: Mezon Controller Firmware Update

    6. MEZON Controller Firmware Update MEZON Controllers allow firmware updates via a PC. The update is performed using the JETI USB-Adapter. The procedure is as shown below. On the manufacturer internet pages, under “Downloads”, you will find an update program with the most recent firmware.
  • Page 28: Troubleshooting

    7. Troubleshooting Problem: There is no “armed” signal tone audible when the battery is connected to the controller. The motor is connected correctly to the controller. The controller input is also correctly connected to the receiver, the receiver is switched-on and servos work normally. Solution: Check the throttle control pulse, which should have a voltage level of at least 2,5V and a width of 0,9-1,4 ms.
  • Page 29: Safety Information, Warranty Conditions, Warranty And Service

    menu and lastly, check the maximum speed in the “Set MaxRotor RPM” menu which controls the speed which the rotor is allowed to achieve with the given battery, gear ratio, motor and rotor blades. Safety Information, Warranty Conditions, Warranty and Service Safety and warranty conditions •...
  • Page 30 If you are having trouble with the setup or some functions of the product, do not hesitate to contact our technical support. You should first contact your dealer for technical support. Support is also available from the manufacturer: JETI model s.r.o. More information is available on our internet pages www.jetimodel.com.
  • Page 31: Disposal Of Used Electronic Equipment

    9. Disposal of Used Electronic Equipment...
  • Page 32 Declaration of Conformity Declaration of conformity in accordance with the Statutory rules n. 426/2000 sb. and Directive 1999/5/EC Issues name & addres: JETI model s.r.o. Lomena 1530, 742 58 Pribor Object of the declaration: Products: Electronic speed controller for Brushless Motor...
  • Page 33 Konformitätserklärung Declaration of conformity in accordance with the Statutory rules n. 426/2000 sb. and Directive 1999/5/EC Im Namen von: JETI model s.r.o. Lomena 1530, 742 58 Pribor Gegenstand der Erklärung: Produkt: Electronic speed controller für Brushlessmotor Handelsname: MEZON, MASTER MEZON,...
  • Page 34 ® JETI model s.r.o. Lomená 1530, 742 58 Příbor www.jetimodel.com Czech Republic - EU...
