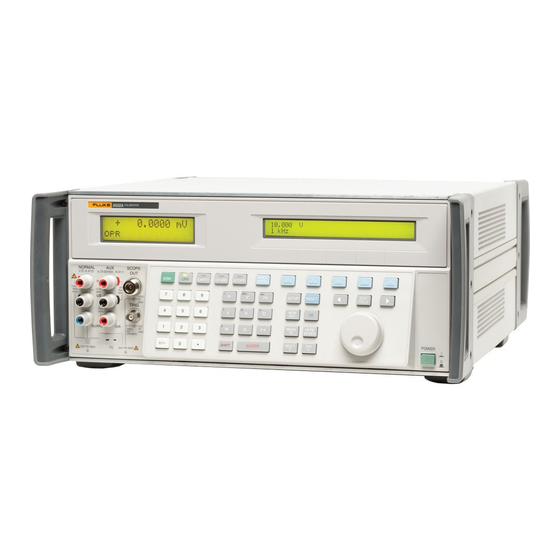

Fluke 5520A Getting Started
Multi-product calibrator
Hide thumbs
Also See for 5520A:
- Operator's manual (420 pages) ,
- Service manual (254 pages) ,
- Programmer's manual (46 pages)
Related Manuals for Fluke 5520A
Summary of Contents for Fluke 5520A
- Page 1 ® 5520A Multi-Product Calibrator Getting Started PN 2075585 March 2003 © 2003 Fluke Corporation, All rights reserved. Printed in USA All product names are trademarks of their respective companies.
- Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
- Page 3 To avoid fire hazard, use only the specified replacement fuse: • For 100 V or 120 V operation, use a 5A/250V time delay fuse (Fluke PN 109215). • For 220 V or 240 V operation, use a 2.5A/250V time delay fuse (Fluke PN 851931).
- Page 4 USE THE PROPER POWER CORD Use only the power cord and connector appropriate for the voltage and plug configuration in your country. Use only a power cord that is in good condition. Refer power cord and connector changes to qualified service personnel. DO NOT OPERATE IN EXPLOSIVE ATMOSPHERES To avoid explosion, do not operate the Calibrator in an atmosphere of explosive gas.
-
Page 5: Table Of Contents
Remote Operation (RS-232)................3 Remote Operation (IEEE-488)..............3 Where to Go from Here ..................4 Instruction Manuals ................... 5 5520A Getting Started Manual ..............6 5520A Operators Manual ................6 5520A Operators Guide ................6 5520A Programmers Guide................6 5520A Service Manual.................. 6 Specifications .................... - Page 6 5520A Getting Started AC Current (Non-Sine Wave) Specifications ..........30 AC Current, Square Wave Characteristics (typical) ........32 AC Current, Triangle Wave Characteristics (typical) ........32...
-
Page 7: Introduction
Fluke, the protection provided by the Calibrator may be impaired. The 5520A Multi-Function Calibrator (referred to throughout this manual as either "the 5520A Calibrator" or "the Calibrator") is a fully programmable precision source of the following: • DC voltage from 0 V to ±1000 V. - Page 8 Pressure measurement when used with Fluke 700 Series pressure modules. • 10 MHz reference input and output. Use this to input a high-accuracy 10 MHz reference to transfer the frequency accuracy to the 5520A, or to synchronize one or more additional 5520As to a master 5520A. •...
-
Page 9: Operation Overview
Operation Overview Operation Overview The 5520A Calibrator may be operated at the front panel in the local mode, or remotely using RS-232 or IEEE-488 ports. For remote operations, several software options are available to integrate 5520A operation into a wide variety of calibration requirements. -
Page 10: Where To Go From Here
Cabling to a UUT (Unit Under Test): Chapter 4, “Front Panel Operation” • Remote operation (IEEE-488 or serial): Chapter 5, “Remote Operation” • Calibrating an Oscilloscope: Chapter 8, “Oscilloscope Calibration Options” • Accessories to the 5520A Calibrator: Chapter 9, “Accessories” • Performance Specifications: Chapter 1, “Introduction and Specifications”... -
Page 11: Instruction Manuals
Multi-Function Calibrator Instruction Manuals Instruction Manuals The 5520A manual set provides complete information for operators and service or maintenance technicians. The set includes: • 5520A Getting Started Manual (PN 2075585) • 5520A Operators Guide • English (PN 688754) • French (PN 688751) •... -
Page 12: 5520A Getting Started Manual
5520A Getting Started 5520A Getting Started Manual This 5520A Getting Started Manual contains a brief introduction to the 5520A Manual Set, instructions on how to get your calibrator prepared for operation and a complete set of specifications. 5520A Operators Manual The 5520A Operators Manual provides complete information for installing the 5520A Calibrator and operating it from the front panel keys and in remote configurations. -
Page 13: Specifications
The following tables list the 5520A specifications. All specifications are valid after allowing a warm-up period of 30 minutes, or twice the time the 5520A has been turned off. (For example, if the 5520A has been turned off for 5 minutes, the warm-up period is 10 minutes.) All specifications apply for the temperature and time period indicated. -
Page 14: General Specifications
[3] The DC Current ranges 0 to 1.09999 A and 1.1 A to 2.99999 A are sensitive to storage temperatures above 50 °C. If the 5520A is stored above 50 °C for greater than 30 minutes, these ranges must be re-calibrated. Otherwise, the... -
Page 15: Dc Voltage Specifications
Multi-Function Calibrator Specifications DC Voltage Specifications Absolute Uncertainty, tcal ± 5 °C Stability ± (ppm of output + µV) Resolution Burden µV 24 hours, ± 1 °C Range ± (ppm output + µV) 90 days 1 year 15 + 1 20 + 1 3 + 1 50 Ω... -
Page 16: Dc Current Specifications
5520A Getting Started DC Current Specifications Absolute Uncertainty, tcal ± 5 °C Compliance ± (ppm of output + µA) Inductive Voltage Load 90 days 1 year Range Resolution 120 + 0.02 150 + 0.02 0 to 329.999 mA 1 nA 80 + 0.05... - Page 17 Multi-Function Calibrator Specifications DC Current Specifications (cont) Ambient 0 °C 10 °C 20 °C 30 °C 40 °C Current (Amps) nn326f.eps Figure 4. Allowable Duration of Current >11 A...
-
Page 18: Resistance Specifications
5520A Getting Started Resistance Specifications Absolute Uncertainty, tcal ± 5 °C ± (ppm of output + floor) [2] Allowable Floor ppm of output Range Time & temp since ohms zero cal Resolution Current Ω 12 hrs ± 1 °C 7 days ± 5 °C... -
Page 19: Ac Voltage (Sine Wave) Specifications
Multi-Function Calibrator Specifications AC Voltage (Sine Wave) Specifications NORMAL (Normal Output) Max Distortion Absolute Uncertainty, and Noise tcal ± 5 °C Range Frequency Resolution 10 Hz to 5 MHz ± (ppm of output + µV) Burden Bandwidth ± (% output + 90 days 1 year floor) - Page 20 5520A Getting Started AC Voltage (Sine Wave) Specifications (cont) AUX (Auxiliary Output) [dual output mode only] [1] Absolute Uncertainty, Max Distortion tcal ± 5 °C and Noise ± (% of output + µV) 10 Hz to 100 kHz Bandwidth ± (% output +...
- Page 21 Multi-Function Calibrator Specifications AC Current (Sine Wave) Specifications LCOMP off Distortion & Noise 10 Hz Absolute Uncertainty, Compliance to 100 kHz Inductive tcal ± 5 °C Range Frequency adder Load ± (% of output + µA) ± (µA/V) ± (% output µH 90 days 1 year...
-
Page 22: Ac Current (Sine Wave) Specifications (Cont)
5520A Getting Started AC Current (Sine Wave) Specifications (cont) LCOMP on Max Distortion Absolute Uncertainty, tcal ± 5 °C & Noise, 10 Hz Inductive Range Frequency to 100 kHz BW Load ± (% of output + µA) ± (% output + µH... -
Page 23: Capacitance Specifications
Multi-Function Calibrator Specifications Capacitance Specifications Absolute Uncertainty, tcal ± 5 °C Allowed Frequency or ± (% of output + floor) Charge-Discharge Rate Typical Min and Max Typical Max for <1% Error Res- to Meet Max for <0.5% Range 90 days 1 year olution Specification... -
Page 24: Temperature Calibration (Thermocouple) Specifications
5520A Getting Started Temperature Calibration (Thermocouple) Specifications Absolute Uncertainty Absolute Uncertainty Source/Measure Source/Measure tcal ±5 °C tcal ±5 °C Range Range °C ± °C [3] °C ± °C [3] Type Type 90 days 1 year 90 days 1 year 600 to 800 0.42... -
Page 25: Temperature Calibration (Rtd) Specifications
400 to 600 0.12 0.14 600 to 630 0.14 0.16 [1] Resolution is 0.003 °C [2] Applies for COMP OFF (to the 5520A Calibrator front panel NORMAL terminals) and 2- wire and 4-wire compensation. [3] Based on MINCO Application Aid No. 18... -
Page 26: Dc Power Specification Summary
5520A Getting Started DC Power Specification Summary Current Range 0.33 mA to 0.33 A to 3 A to 329.99 mA 2.9999 A 20.5 A Absolute Uncertainty, tcal ± 5 °C, ± (% of watts output) [1] Voltage Range 33 mV to 1020 V 0.021... -
Page 27: Power And Dual Output Limit Specifications
Multi-Function Calibrator Specifications Power and Dual Output Limit Specifications Power Voltages Voltages Factor (NORMAL) (AUX) (PF) Frequency Currents 0 to ±1020 V 0 to ± 20.5 A 0 to ± 7 V 10 Hz to 45 Hz 33 mV to 32.9999 V 3.3 mA to 2.99999 A 10 mV to 5 V 0 to 1... -
Page 28: Phase Specifications
5520A Getting Started Phase Specifications 1-Year Absolute Uncertainty, tcal ± 5 °C, (∆ Φ °) 10 Hz to 65 Hz to 500 Hz to 1 kHz to 5 kHz to 10 kHz to 65 Hz 500 Hz 1 kHz 5 kHz... -
Page 29: Calculating Power Uncertainty
Multi-Function Calibrator Specifications Calculating Power Uncertainty Overall uncertainty for power output in watts (or VARs) is based on the root sum square (rss) of the individual uncertainties in percent for the selected voltage, current, and power factor parameters: Watts uncertainty power voltage current... -
Page 30: Frequency Specifications
1.200 MHz to 2.000 MHz 1 kHz [1] With REF CLK set to ext, the frequency uncertainty of the 5520A is the uncertainty of the external 10 MHz clock ±5 µHz. The amplitude of the 10 MHz external reference clock signal should be between... -
Page 31: Harmonics (2Nd To 50Th) Specifications
Multi-Function Calibrator Specifications Harmonics (2nd to 50th) Specifications Fundamental Voltages Voltages Amplitude Currents Frequency [1] NORMAL AUX Terminals Uncertainty Terminals Same % of 10 Hz to 45 Hz 33 mV to 32.9999 V 3.3 mA to 2.99999 A 10 mV to 5 V output as 45 Hz to 65 Hz 33 mV to 1000 V... -
Page 32: Ac Voltage (Sine Wave) Extended Bandwidth Specifications
5520A Getting Started AC Voltage (Sine Wave) Extended Bandwidth Specifications 1-Year Absolute Uncertainty Max Voltage tcal ± 5 °C Range Frequency Resolution Normal Channel (Single Output Mode) ± (5.0 % of output + 1.0 mV to 33 mV 0.01 Hz to 9.99 Hz Two digits, e.g., 25 mV... -
Page 33: Ac Voltage (Non-Sine Wave) Specifications
Multi-Function Calibrator Specifications AC Voltage (Non-Sine Wave) Specifications Triangle Wave & 1-Year Absolute Uncertainty, tcal ± 5 °C, Truncated Sine Max Voltage ± (% of output + % of range) [2] Frequency Range, p-p [1] Resolution Normal Channel (Single Output Mode) 5.0 + 0.5 0.01 Hz to 10 Hz Two digits on... -
Page 34: Ac Voltage, Dc Offset Specifications
5520A Getting Started AC Voltage, DC Offset Specifications 1-Year Absolute Offset Uncertainty, tcal ± 5 °C [3] Range [1] Peak ± (% dc output + floor) (Normal Channel) Offset Range [2] Signal Sine Waves (rms) 0.1 + 33 µV 3.3 mV to 32.999 mV... -
Page 35: Ac Voltage, Square Wave Characteristics
Multi-Function Calibrator Specifications AC Voltage, Square Wave Characteristics Risetime Settling Overshoot @ 1 kHz Time @ 1 kHz Typical @ 1 kHz Typical Duty Cycle Range Duty Cycle Uncertainty Typical <1 µs <10 µs to 1% <2% 1% to 99%, <3.3 V p-p, ±... -
Page 36: Ac Current (Non-Sine Wave) Specifications
5520A Getting Started AC Current (Non-Sine Wave) Specifications Triangle Wave & Truncated Sine Wave 1-Year Absolute Uncertainty tcal ± 5 °C Range Current ± (% of output + % of range) Frequency Resolution 5.0 + 0.5 0.047 mA 0.01 Hz o 10 Hz Two digits 0.25 + 0.5... - Page 37 Multi-Function Calibrator Specifications AC Current (Non-Sine Wave) Specifications (cont) 1-Year Absolute Square Wave Uncertainty, tcal ± 5 °C, Range Current ± (% of output + % of range) Frequency Resolution 5.0 + 0.5 0.01 Hz to 10 Hz Two digits 0.25 + 0.5 0.047 mA to 10 Hz to 45 Hz...
-
Page 38: Ac Current, Square Wave Characteristics (Typical)
5520A Getting Started AC Current, Square Wave Characteristics (typical) Range LCOM Risetim Settling Time Overshoot I < 6 A @ 400 Hz 25 µs 40 µs to 1% of final value < 10% for < 1 V Compliance 100 µs 200 µs to 1% of final value...
