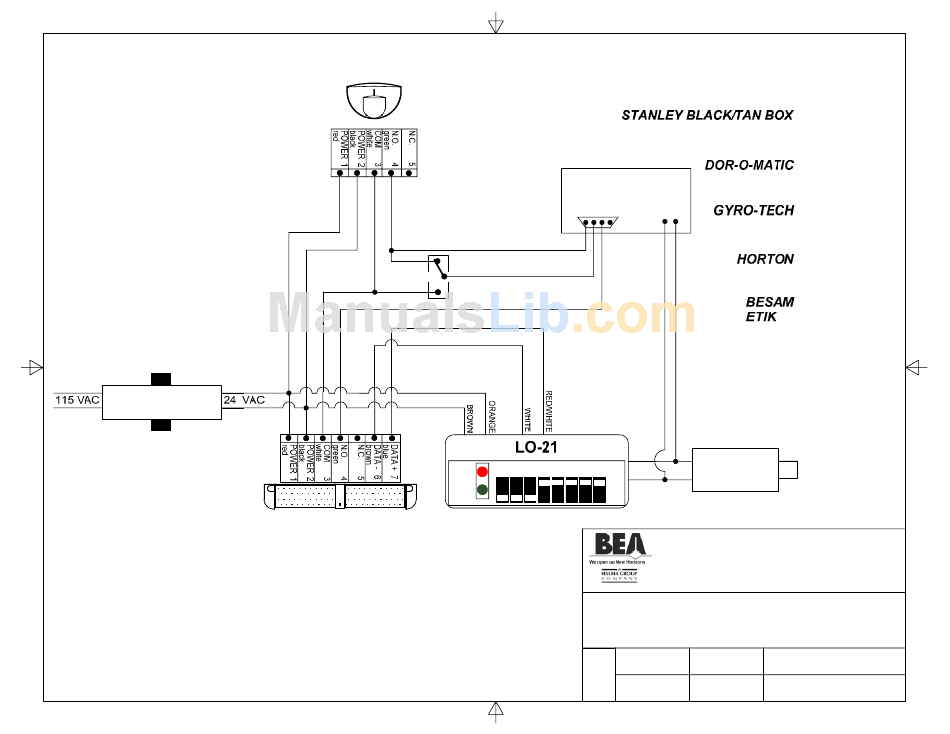

BEA BodyGuard 80.0000.02 Wiring Diagram

24 V
TRANSFORMER
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC.
FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME AT 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS,
CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 / WEST COAST: 1-888-419-2564. DO NOT
LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE
DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE
AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE SOLUTION.WEB: WWW.BEASENSORS.COM
EAGLE
HOLD
OPEN
OFF
AUTO
RED
GREEN
BODYGUARD
CONTROL
A C S
RED
LO21 DEFAULT DIP SWITCHES
BLACK
OFF
ON
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX:
EMAIL: www.beasensors.com
TITLE: ON/ OFF/ HOLD OPEN SWITCH

WIRING DIAGRAM

DRAWN BY:
SIZE:
KJG
A
SCALE:
NONE
A = ACTIVATION
C = COMMON
S = SAFETY
A = ORANGE
C = YELLOW
S = RED
A = YELLOW
C = GRAY
S = BLUE
A = BLACK
C = RED
S = WHITE
A = BLACK
C = WHITE
S = GREEN
A = 13
C = 12
S = 11
+
MOTOR
-
(412) 249-4101
REV BY: PART NO:
80.0000.02
TUC
DATE: SHEET
17 JUNE 2005
1 OF 1
