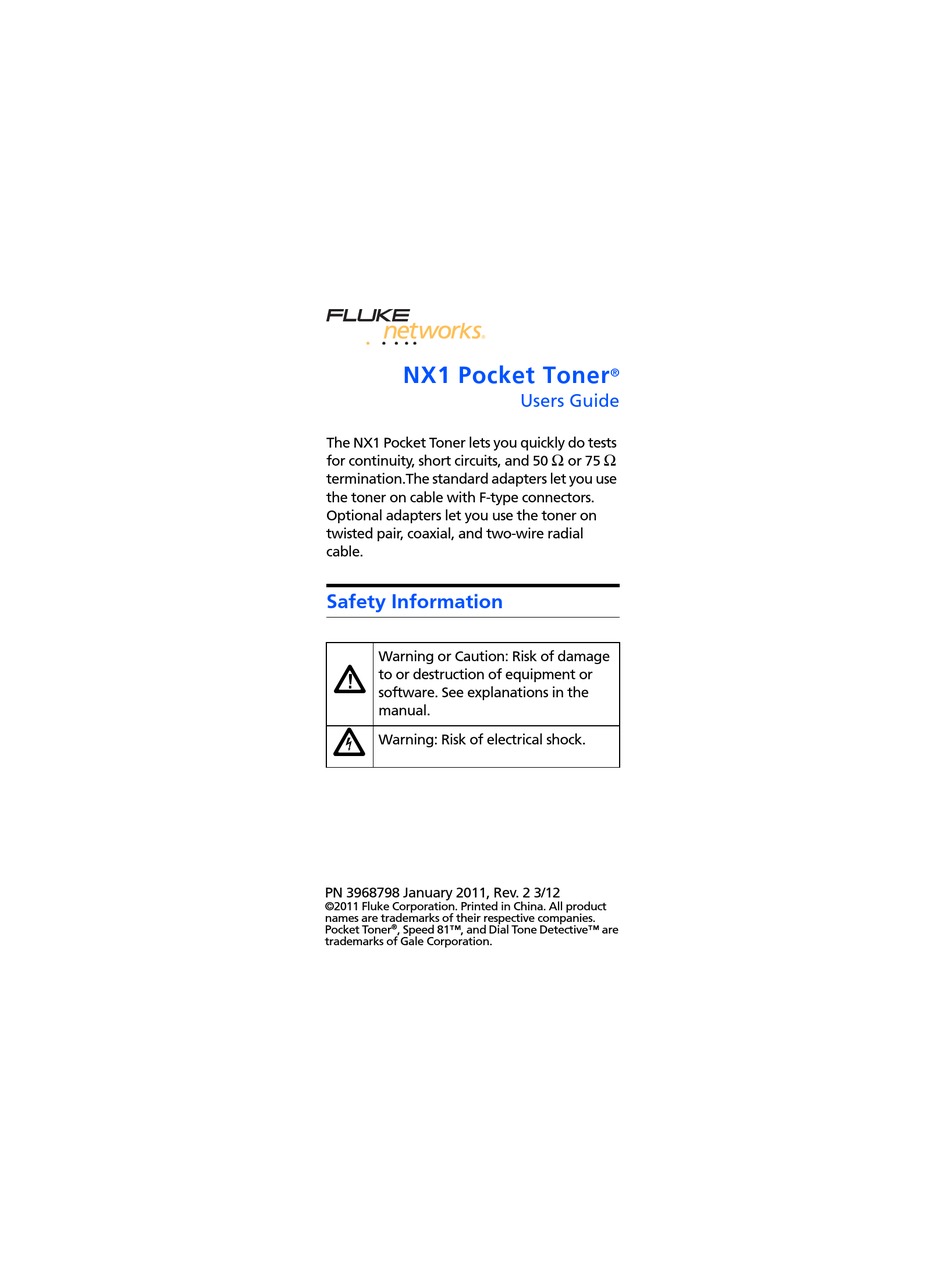

NX1 Pocket Toner
The NX1 Pocket Toner lets you quickly do tests
for continuity, short circuits, and 50
termination.The standard adapters let you use
the toner on cable with F-type connectors.
Optional adapters let you use the toner on
twisted pair, coaxial, and two-wire radial
cable.
Safety Information
Warning or Caution: Risk of damage
to or destruction of equipment or
software. See explanations in the
manual.
Warning: Risk of electrical shock.
PN 3968798 January 2011, Rev. 2 3/12
©2011 Fluke Corporation. Printed in China. All product
names are trademarks of their respective companies.
Pocket Toner
®
, Speed 81™, and Dial Tone Detective™ are
trademarks of Gale Corporation.
®
Users Guide
Ω
Ω
or 75
Advertisement
Table of Contents
Related Manuals for Fluke NX1 Pocket Toner
Summary of Contents for Fluke NX1 Pocket Toner
-
Page 1: Safety Information
NX1 Pocket Toner ® Users Guide The NX1 Pocket Toner lets you quickly do tests Ω Ω for continuity, short circuits, and 50 or 75 termination.The standard adapters let you use the toner on cable with F-type connectors. Optional adapters let you use the toner on twisted pair, coaxial, and two-wire radial cable. - Page 2 Do not connect this equipment to public communications networks, such as telephone systems. See the warning below. Do not put products that contain circuit boards into waste containers. Refer to local regulations for disposal procedures. Warning To prevent possible fire, electric shock, or personal injury: •...
-
Page 3: Auto Shut-Off
Features Speaker Test port indicator Adapter Main unit Battery cap Speed 81 coupler* Toner cap * F-type coupler that helps you make connections faster. Auto Shut-Off The main unit turns off if the condition of the line does not change for 10 minutes. - Page 4 How to Use the Toner For unterminated cable, connect the correct adapter to an ID cap or the toner cap, then connect the cap to the far end of the cable. Connect the correct adapter to the main unit. Turn on the main unit, then connect it to the near end of the cable.
-
Page 5: Maintenance
You cannot repair or replace parts in the case. • Use only replacement parts that are approved by Fluke Networks. • If you replace parts that are not specified as replacement parts, the warranty will not apply to the product and you can make the product dangerous to use. - Page 6 Cleaning Caution To prevent damage to the display or the case, do not use solvents or abrasive materials. To extend battery life, remove the battery if you will not use the toner for a long period of time. To clean the case, use a soft cloth that is moist with water or water and a weak soap.
-
Page 7: Specifications
Specifications Approximate distance: 300 m (1,000 ft) Output voltage in continuity mode: 3.6 Vdc (with a new battery) Toner frequency: Main unit: 2.7 kHz. Toner cap: 2.3 kHz Maximum input voltage: 30 Vac, 42 Vpk, or 60 Battery type: 1.5 V AAA alkaline Auto shut-off: 10 minutes Operating temperature: -20 °C to +65 °C Storage temperature: -30 °C to +70 °C... -
Page 8: Contacting Fluke Networks
Contacting Fluke Networks www.flukenetworks.com support@flukenetworks.com +1-425-446-4519 • Australia: 61 (2) 8850-3333 or 61 (3) 9329 0244 • Beijing: 86 (10) 6512-3435 • Brazil: 11 3759 7600 • Canada: 1-800-363-5853 • Europe: +31-(0) 40 2675 600 • Hong Kong: 852 2721-3228 •... - Page 9 LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from the date of purchase. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripherals are all considered parts or accessories.
