MAINS
POWERED
SMOKE ALARM
PLEASE READ THE USER GUIDE
CAREFULLY BEFORE INSTALLATION AND
RETAIN FOR FUTURE USE.

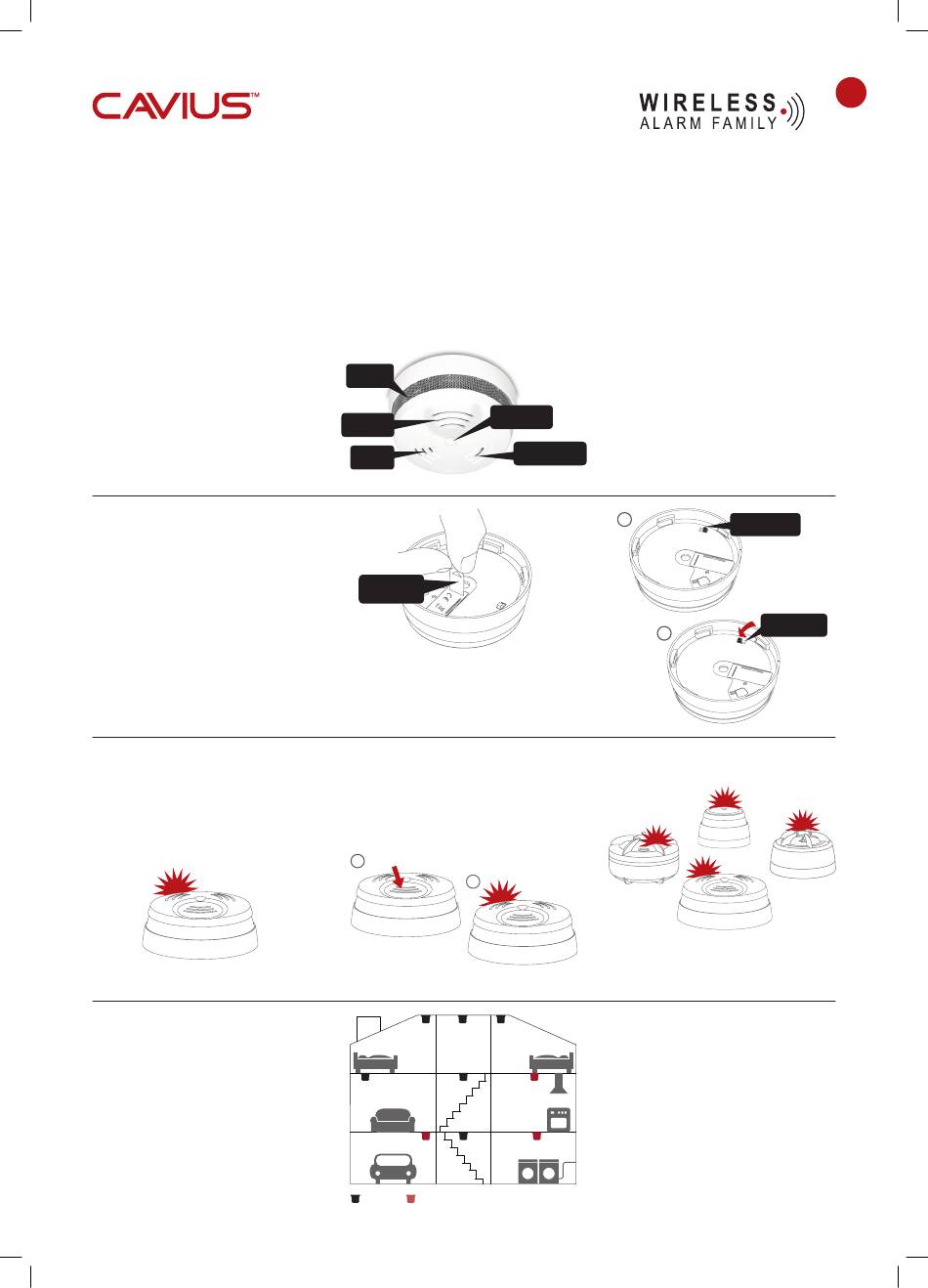

1.
HOW TO SET UP AND CONNECT ALARMS:
Start by pulling out the battery isolation strip in the
battery compartment as shown.
Please note: RF connection is done with the device
powered with battery only. You do not have to connect
the power supply unit. The product label must not be
removed as it contains important information regarding
the product.
Please note: The learn switch placed on the back of
the alarm can only be in learn position when the alarm
is disassembled from the power supply unit. The learn
switch will automatically switch to normal position
when the alarm head is fitted to the power supply unit.
The red LED will light up to indicate that 'Learn Mode'
has been selected.
2.
THE BEST AREAS TO INSTALL THE SMOKE ALARM:
• Note the local country regulations regarding installation
and compliance.
• Note the local regulations and information for insurance
company policy regarding installed smoke alarms.
• Install an alarm between possible fire sources and
bedrooms as a minimum.
• Install alarms on each floor of the house, in hallways and
stairways.
• Alarms in each room such as bedrooms and living rooms.
Additional alarms increase the security.

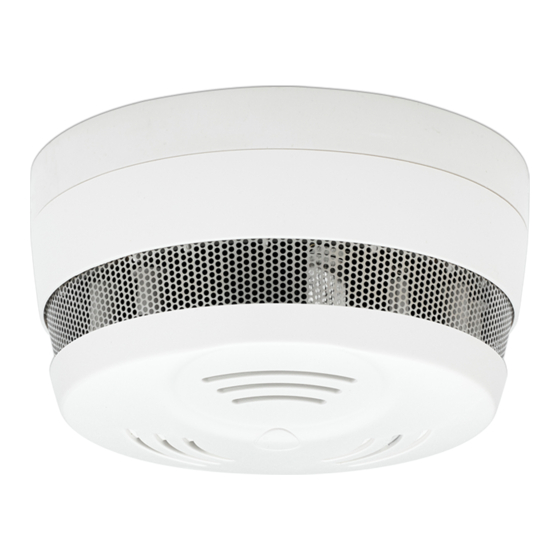

Mains powered smoke alarm device
Model number: 2203-002
Developed by CAVIUS™
This smoke alarm is designed for private homes.
TECHNICAL INFORMATION
The smoke alarm is powered by mains power (110-
230V AC), with a lithium CR2 back-up battery.
It can be Radio Frequency (RF) interlinked with other
2203 alarms and with other CAVIUS™ Wireless Family
alarms. The maximum number of alarms that can be
interlinked within a house group are 32.
Please note: These must be alarms from the CAVIUS™
Wireless Family range.
CHAMBER
FILTER
TEST BUTTON
SIREN
ISOLATION
STRIP
All alarms to be connected in the house should be put
into 'Learn Mode' by sliding the switch on the back of
the alarm to the 'Learn Mode' position.
Do not remove the battery during 'Learn Mode' as
this will interrupt the learn process. Press and hold the
test button on one alarm only, until it beeps and the
LED flashes. This alarm will become the master and will
start sending out a specific house code to the
other alarms.
1
Smoke
Heat
Ceiling
Wall
Minimum 50cm from wall
The distance between interlinked alarms depends on
the house layout and they should always be tested after
installation. It is not advised to install alarms with a
separation of more than 10m.
Diameter: 97mm. Height: 41mm (without mounting
base) 52mm (with mounting base).
Interlinked by RF: 926.365 MHz
Complies to standards: AS3786:2014
OPTIONAL HOLE
FOR LAMP WIRE
RED & GREEN LED
1
As the other alarms receive the specific house code,
they will also flash the LED light.
2
When all alarms flash the red LED, they are connected
and can be switched out of 'Learn Mode' and installed.
3.
AREAS WHERE NOT TO INSTALL SMOKE ALARMS:
• In dusty rooms
• At the top of a high pointed ceiling, in ceiling corners,
and within 50cm of a wall.
• In rooms where temperature goes outside the range
+4° to 38°C or above 90% relative humidity not
condensing.
• In kitchens, garages, laundries, or too close to
fireplaces; areas where either dampness, gases or
smoke could occur.
Place the alarm where it is reachable in order to test the
alarm and for maintenance.
Ceiling
NORMAL MODE
LEARN MODE
2
1
