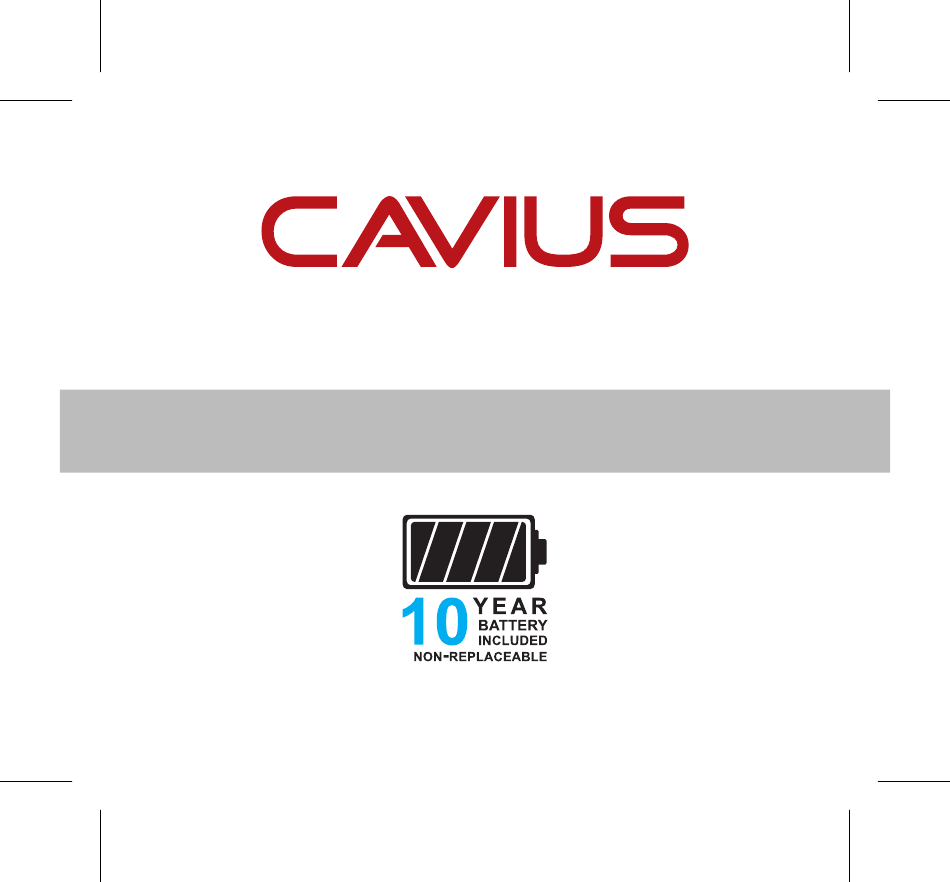

- Page 1 PHOTOELECTRIC SMOKE ALARM THE WORLD’S SMALLEST PLEASE READ THIS USER GUIDE CAREFULLY...
- Page 2 CAVIUS Photoelectric Smoke Alarm Part Code: 2008-003/10019/10020/10021 Model: 2008-001 Recess Kit Part Code: 11010 PLEASE READ THE USER GUIDE CAREFULLY BEFORE INSTALLATION AND RETAIN FOR FUTURE USE. For large text option and maintenance guide visit cavius.co.nz/resources cavius.com.au/resources...
- Page 3 CHAMBER FILTER TEST / HUSH BUTTON ALARM AUDIBLE ALERT...
- Page 4 The best locations in your home to install the smoke alarm: • Place a smoke alarm between possible fire sources and bedrooms as a minimum. • Smoke alarms on each floor, in hallways and stairways. • Smoke alarms in each room such as bed rooms and living rooms.
- Page 6 Placement: Designed for placement on ceiling (preferred) or wall. The smoke alarm should be a minimum 50cm from the wall, with a minimum of one smoke alarm per floor and a maximum distance between smoke alarms of 10 metres. CEILING MINIMUM 50cm MINIMUM 30cm AND MAXIMUM...
- Page 7 2. After mounting, allow 5 seconds for the alarm to power up and then test the smoke alarm by pushing the test button (which is the entire bottom of the alarm). The alarm should produce a loud sound.
- Page 8 Installation of smoke alarm: MARK UP SCREW HOLES Info: The label on the product WITH A PEN must not be removed due to important information. Option 1 – Standard base 1. Use the mounting base ring to mark the screw holes on the ceiling.
- Page 9 USE THE ENCLOSED SCREWS AND PLUGS FOR INSTALLATION CLICK THE SMOKE ALARM FIRMLY INTO THE BASE TO ACTIVATE...
- Page 10 Option 2 – Recess Kit 1. Place the Cover Ring on the area where you wish to install the smoke alarm, trace around the inside of the ring. HOLE SAW DRILL REQUIRED. 44mm - 48mm...
- Page 11 2. Using your hole saw (44mm-48mm), cut a hole into the surface. CAUTION: Ensure there is no wiring or any electrical equipment behind the surface you are drilling your hole into. INSERT RECESS KIT MOUNTING BASE INTO THE HOLE AND SECURE WITH SCREWS CLICK THE SMOKE ALARM FIRMLY INTO...
- Page 12 The smoke alarm may NOT be placed: • In dusty rooms. • At the top of high pointed ceilings, instead place a minimum of 50cm to a maximum of 150cm from the appex. • Within 50cm of a wall. • In rooms where the temperature goes outside +5º...
- Page 13 Maintenance: The smoke alarm should be vacuum cleaned once per quarter, and can be wiped with a slightly damp cloth (do not open the alarm). Test the smoke alarm once per month by pushing the test button. The smoke alarm should produce a loud alarm tone.
- Page 14 Smoke alarm signal: The smoke alarms have a visual and acoustic signal. In the passive state, the LED will flash every 48 seconds to indicate normal function. In alarming state the LED will flash and the alarm will emit a sweeping sound pattern designed to alert occupants.
- Page 15 Hush function: In case of unintentional or false alarms, press and hold the hush button for 2 seconds (which is the entire bottom of the alarm). This will mute the alarm for 10 minutes, after which time the alarm will automatically resume its normal function.
-
Page 16: Functional Information
FUNCTIONAL INFORMATION Type of alarm: CAVIUS smoke alarm is a photoelectric smoke alarm. Alarm signal: Fire alarm activation is indicated by a series of repeated tones. The minimum sound level is 85 dB at 3 metres. Battery: Powered by a... - Page 17 Low battery indicator: A short acoustic “beep” will sound and the LED will flash every 48 seconds when the battery is near the end of its life. In this stage it will continue for a minimum of 30 days. Please replace smoke alarm: You must change the smoke alarm after 10 years of use, or if the smoke alarm has suffered any damage.
- Page 18 If the smoke alarm does not work when the test button is pushed, please check our Trouble Shooting Guides at; cavius.co.nz and cavius.com.au Disposal: For product, please dispose properly at end of life. The alarm can be recycled at an electronic waste recycling...
- Page 19 • Do not paint the smoke alarm. • Note the local country regulations regarding installation of mains powered smoke alarms in new buildings. The CAVIUS smoke alarm is a photoelectric alarm designed to be installed into residential homes, camper-vans and caravans.
- Page 20 Julsøvej 16 - DK8600 Silkeborg cavius.com - info@cavius.com Manufactured in P .R.C. Distributor information: for New Zealand - CAVIUS Nano Ltd. 58a Poplar Lane, Papamoa 3187, NZ. www.cavius.co.nz for Australia - CAVIUS Australia 14/30 Octal Street, Yatala, QLD 4207, Australia.
- Page 21 If this product has an acknowledged defect it must be returned to the national CAVIUS distributor at the purchasers cost with the proof of purchase. If the product has become defective within the 10-year warranty,...
- Page 22 Product overview: Type of mounting Ceiling and Wall Mounting Main power supply Internal power source (battery included) Battery duration 10 years Interconnectable device Suitable for installation in mobile home...
- Page 23 Connection to external auxiliary devices Radio link Individual alarm indicator Alarm silence facility (10min) Radioactivity infrared technology 127479 rev1...
- Page 24 PHOTOELECTRIC SMOKE ALARM THE WORLD’S SMALLEST PLEASE READ THIS USER GUIDE CAREFULLY...
