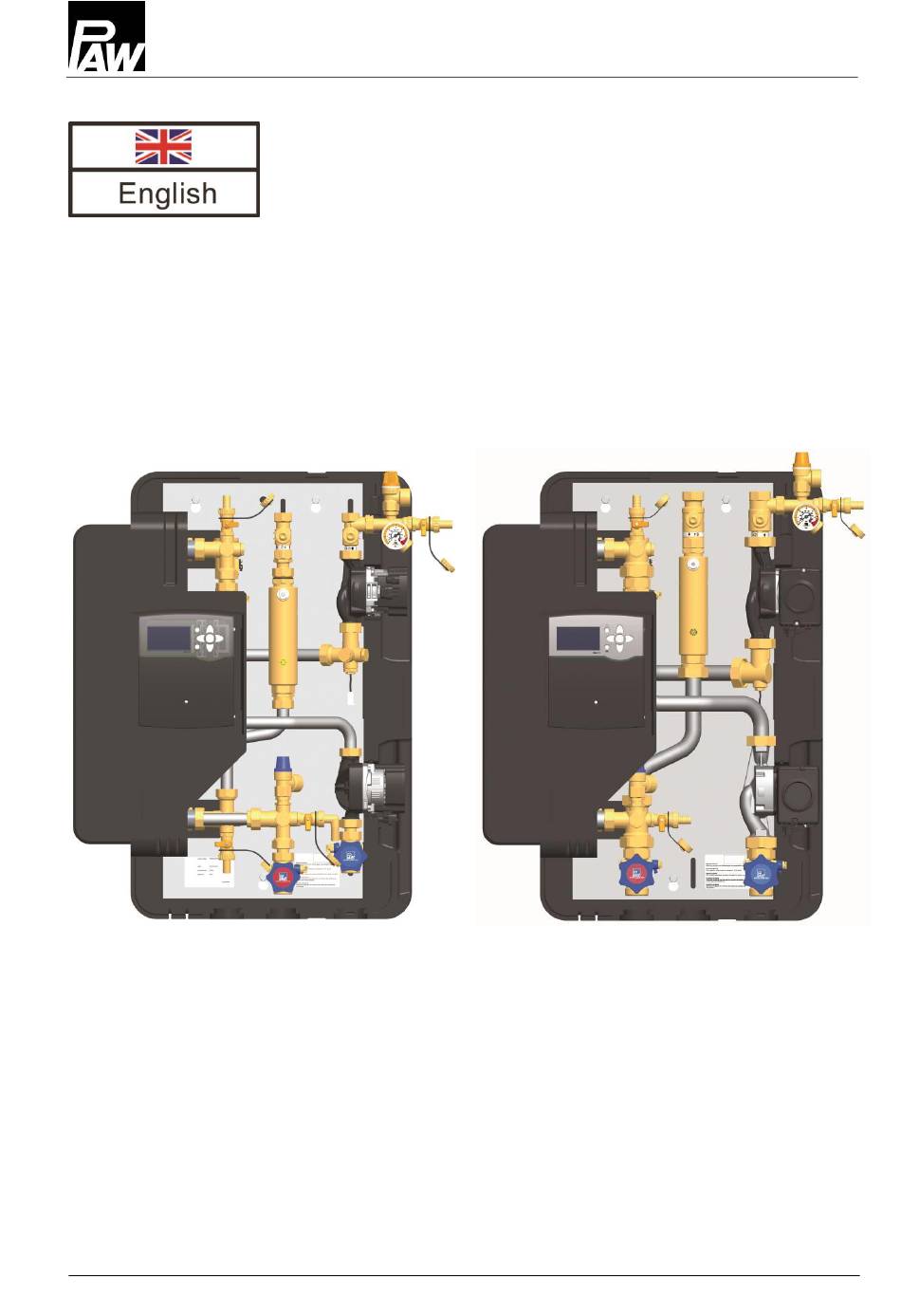

Installation and Operation Instructions
Transfer Stations:
SolexMidi TW - DN 20
SolexMaxi TW - DN 25
[hydraulics]
SolexMidi TW
SolexMaxi TW
2017/05
99609x4x5-mub-en – V05
1
Advertisement
Table of Contents
Related Manuals for PAW SolexMidi TW
Summary of Contents for PAW SolexMidi TW
- Page 1 PAW GmbH & Co.KG Böcklerstr. 11, D-31789 Hameln, Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Operation Instructions Transfer Stations: SolexMidi TW - DN 20 SolexMaxi TW - DN 25 [hydraulics] SolexMidi TW SolexMaxi TW 2017/05 99609x4x5-mub-en – V05...
- Page 2 Item no. 99609x4x5-mub-en – Version V05 – Issued 2017/05 Translation of the original instructions PAW GmbH & Co.KG We reserve the right to make technical changes without notice! Böcklerstraße 11 Printed in Germany – Copyright by PAW GmbH & Co. KG D-31789 Hameln, Germany 99609x4x5-mub-en – V05 2017/05...
-
Page 3: Table Of Contents
Draining the solar station .................... 21 Deinstallation......................21 6 Spare parts [specialist] ..................... 22 Spare parts control and insulation SolexMidi TW (6095436) ........22 Spare parts hydraulics SolexMidi TW (6095436) ............23 Spare parts control and insulation SolexMaxi TW (6096465) ........24 Spare parts hydraulics SolexMaxi TW (6096465) ............ -
Page 4: S1 General Information
About these instructions These instructions describe the functioning, installation, commissioning and operation of the SolexMidi TW and SolexMaxi TW transfer stations for charging buffer tanks or domestic hot water tanks. The chapters called [specialist] are intended for specialists only. For other components of the solar installation, such as pumps, collectors, storage tanks or expansion tanks, please observe the instructions of the corresponding manufacturer. -
Page 5: About This Product
1 General Information About this product The station is a premounted group of valves and fittings checked for leakage and used to transfer the heat from the primary (solar circuit) to the secondary circuit (heating circuit or domestic hot water circuit). It contains a preset controller as well as important fittings for the operation of the system: Ball valves in the primary circuit (flow and return) ... -
Page 6: Designated Use
Due to its design the station must be mounted and operated as described in these instructions! Only use PAW accessories with the transfer station. Improper usage excludes any liability claims. Schematic structure... -
Page 7: Safety Instructions
2 Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist]. - Page 8 2 Safety instructions CAUTION Risk of burns! The valves and fittings and the pumps can become heated up to more than 100 °C during operation. The shell must remain closed during operation. CAUTION Personal injury and damage to property due to overpressure! By closing the two ball valves in the primary circuit you isolate the pressure relief valve from the heat exchanger.
-
Page 9: Assembly And Installation [Specialist]
3 Assembly and installation [specialist] 3 Assembly and installation [specialist] The location of installation must be dry, load-carrying, frost-proof and protected against ultraviolet radiation to prevent material damage to the installation. Furthermore, the access to the control and safety equipment must be guaranteed at all time during operation! The discharge line of the safety equipment should be guided into a heat-resistant container with corresponding size. - Page 10 3 Assembly and installation [specialist] 7. Connect the transfer station to the system: ① Solar flow from the collector ② Solar return to the collector ③ Flow to the storage tank ④ Return from the storage tank The screw connections in the primary circuit of the SolexMidi have ¾"...
-
Page 11: Controller Connection
3 Assembly and installation [specialist] Controller connection WARNING Risk to life and limb due to electric shock! Prior to commencing electrical work on the controller, pull the mains plug! Only after completing all installation work, plug the mains plug of the controller into a socket. -
Page 12: Commissioning [Specialist]
4 Commissioning [specialist] 4 Commissioning [specialist] Observe the following safety instructions regarding the commissioning of the module: WARNING Risk of burns and scalding! The fittings can heat up to more than 100 °C. Therefore, do not clean or fill the system with the collectors heated (intense sunshine). -
Page 13: Preparations Before Flushing And Filling
4 Commissioning [specialist] Preparations before flushing and filling NOTICE Note regarding the expansion tank To prevent that the dirt particles in the solar thermal system are flushed into the expansion tank, some manufacturers recommend to disconnect the expansion tank from the solar circuit before flushing and filling. -
Page 14: Flushing And Filling The Solar Circuit
4 Commissioning [specialist] Flushing and filling the solar circuit The fill and drain valves required to flush and fill are integrated in the transfer station. Make sure not to wash dirt particles that may be present in the system into the heat exchanger and the expansion tank. - Page 15 4 Commissioning [specialist] Airstop The Airstop with manual vent valve is used to vent the solar installation. To ensure a perfect ventilation of the solar circuit, the flow velocity must be at least 0.3 m/s in the flow line. Pipe diameter [mm] Flow rate at 0.3 m/s ∅...
- Page 16 4 Commissioning [specialist] 1. Switch off the pump in the solar circuit. 2. Disconnect the expansion tank from the solar installation. This avoids the access of dirt particles present in the pipes to the expansion tank. Observe the separate instructions regarding the expansion tank! 3.
- Page 17 4 Commissioning [specialist] 11. Reduce the pressure on the drain valve [g] to the operating pressure. 12. Connect the expansion tank to the solar circuit and set the operating pressure of the solar thermal system by means of the flush and fill station (for the required operating pressure, see instructions of the expansion tank).
- Page 18 4 Commissioning [specialist] 18. Remove the hoses of the flush and fill station and screw the sealing caps onto the fill and drain valves. The sealing caps only serve to protect the valves against dirt. They are not designed to take up high system pressures.
-
Page 19: Parameters: Solexmidi / Solexmaxi With Controller Sc5.14
4 Commissioning [specialist] Parameters: SolexMidi / SolexMaxi with controller SC5.14 The parameters for the sensors and pumps are preset in the controller. If you select and save another system, the parameters are reset to the factory setting. In this case you need to set the following parameters in the menu. -
Page 20: Maintenance [Specialist]
5 Maintenance [specialist] 5 Maintenance [specialist] Make sure that the system is not under pressure during service and maintenance works at the station. WARNING Risk of burns and scalding! The valves, fittings and solar fluid can reach temperatures of more than 100 °C. The solar fluid can escape as vapor and cause scalding. -
Page 21: Draining The Solar Station
5 Maintenance [specialist] Draining the solar station 1. Switch off the controller and make sure that a restart is not possible. 2. Open the check valves in the flow and return ball valve [a|b], by turning them to position 45° (see page 14). -
Page 22: Spare Parts [Specialist]
The serial number can be found in the lower right corner of the support sheet in the station. In case of a complaint, please send us the completely filled commissioning report on page 31. Spare parts control and insulation SolexMidi TW (6095436) 99609x4x5-mub-en – V05 2017/05... -
Page 23: Spare Parts Hydraulics Solexmidi Tw (6095436)
6 Spare parts [specialist] Spare parts hydraulics SolexMidi TW (6095436) 2017/05 99609x4x5-mub-en – V05... -
Page 24: Spare Parts Control And Insulation Solexmaxi Tw (6096465)
6 Spare parts [specialist] Spare parts control and insulation SolexMaxi TW (6096465) 99609x4x5-mub-en – V05 2017/05... -
Page 25: Spare Parts Hydraulics Solexmaxi Tw (6096465)
6 Spare parts [specialist] Spare parts hydraulics SolexMaxi TW (6096465) 2017/05 99609x4x5-mub-en – V05... -
Page 26: Technical Data
7 Technical data 7 Technical data Dimensions SolexMidi TW SolexMaxi TW Height (total) 795 mm 829 mm Width (total) 674 mm 674 mm Depth (total) 298 mm 298 mm Centre distance, flow/return 120 mm 120 mm Pipe connections primary ¾" internal thread 1"... -
Page 27: Dimensional Drawing Solexmidi Tw
7 Technical data Dimensional drawing SolexMidi TW Dimensional drawing SolexMaxi TW 2017/05 99609x4x5-mub-en – V05... -
Page 28: Pressure Drop Characteristics Solexmidi Tw
7 Technical data Pressure drop characteristics SolexMidi TW Flow rate [m³/h] Pressure drop characteristics SolexMaxi TW Flow rate [m³/h] 99609x4x5-mub-en – V05 2017/05... -
Page 29: Function Of The Check Valves [Expert]
8 Function of the check valves [Expert] 8 Function of the check valves [Expert] Within their application range, the check valves in this station prevent unwanted gravity circulation. The efficiency of the check valves depends on: the installation height the temperature difference between the storage tank and the collector ... - Page 30 8 Function of the check valves [Expert] Do you need to know it exactly? The density of the solar fluid decreases with rising temperature. In high installations with large temperature differences, the difference in density will cause gravity circulation. This circulation can cool down the storage tank.
-
Page 31: Commissioning Report
