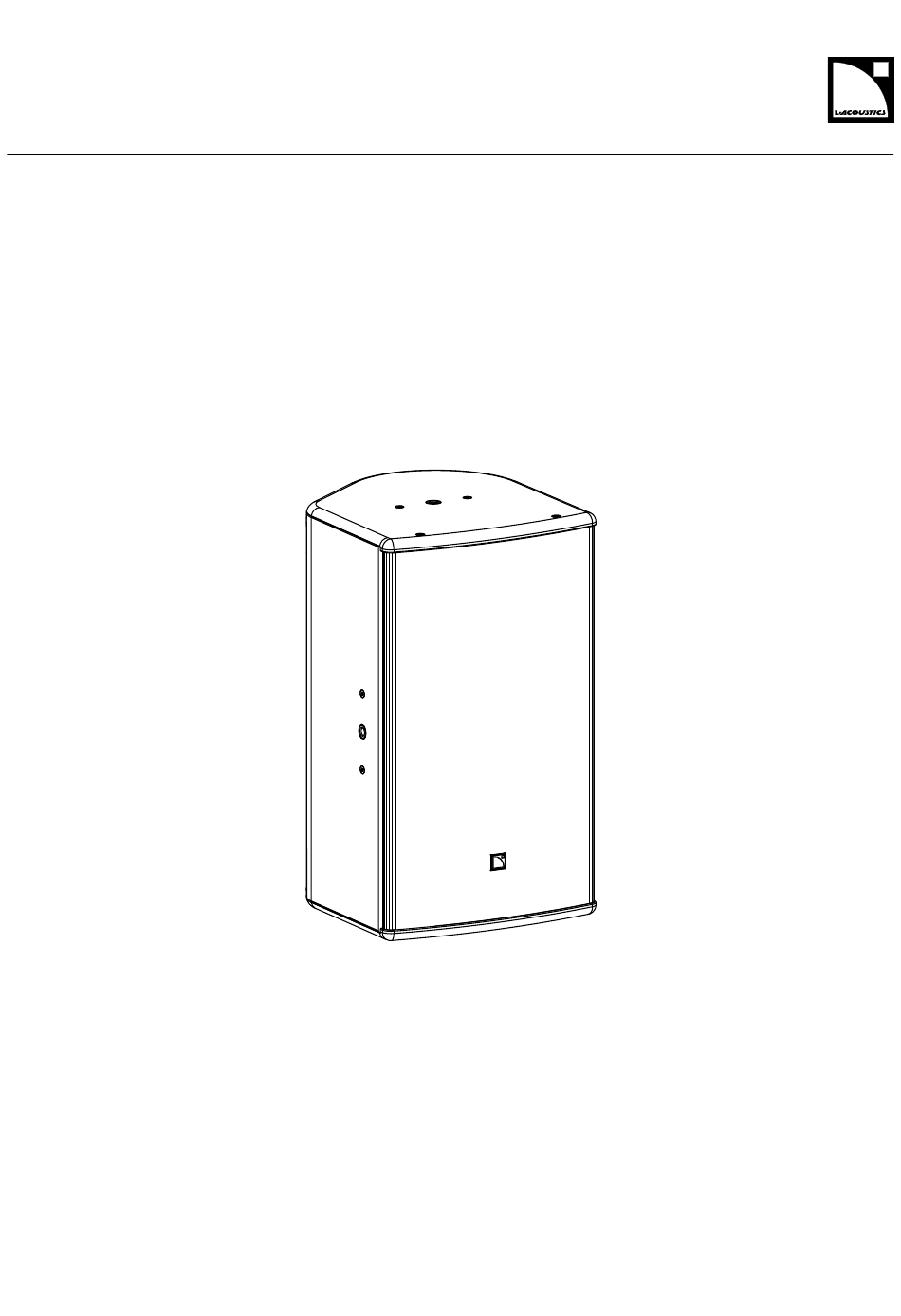

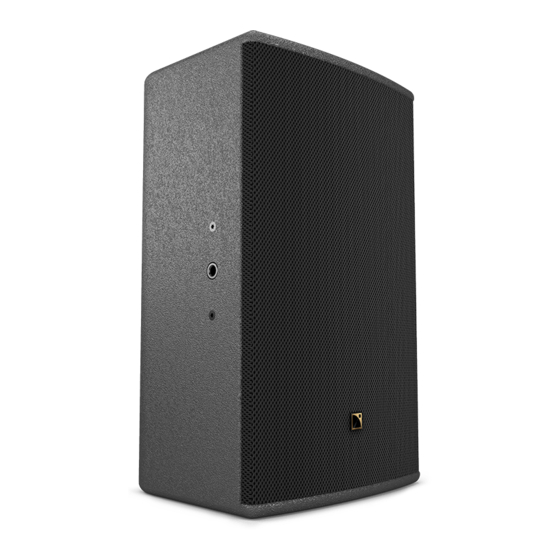

  • Page 1 user manual (EN)
  • Page 2 Document reference: X8 user manual (EN) version 5.0 Distribution date: June 15, 2018 © 2018 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.

  • Page 3: Table Of Contents

    Loudspeaker congurations..........................10 X8 point source.............................10 X8 point source with LF...........................11 X8 with SB15m..........................11 X8 stage monitor............................ 12 X8 stage monitor with LF......................... 13 X8 stage monitor with SB15m......................13 Loudspeaker connection............................ 14 Connectors............................. 14 Connection to LA4X..........................15 Connection to LA8..........................16 Connection to LA12X..........................
  • Page 4 Specications..............................28 X8 specications............................. 28 SB15m specications..........................30...

  • Page 5: Safety

    If any safety issue is detected during inspection, do not use the product before performing corrective maintenance. Never incorporate equipment or accessories not approved by L-Acoustics. Read all the related PRODUCT INFORMATION documents shipped with the products before exploiting the system.

  • Page 6: Welcome

    RAL color program means that it can melt into any architecture. The X8 is an ideal live monitor capable of accurately translating the signature of large systems at FOH position or in control rooms. The X8 features a pristine L-Acoustics sonic signature, a high SPL capability and extended LF resources in a compact format.

  • Page 7: System Components

    Refer to the LA4X / LA8 / LA12X user manual for detailed instructions about the whole cabling scheme, including modulation cables and network. Rigging elements Rigging elements or procedures are not presented in this document. Refer to the X8 rigging manual. Software applications Soundvision 3D acoustical and mechanical modeling software LA Network Manager Software for remote control and monitoring of amplied controllers...

  • Page 8: Loudspeaker Cables

    0.7 m / 5 m / 10 m / 25 m CH(1) CH(2) SP.7 / SP5 / SP10 / SP25 SP-Y1 SPK1 SPK2 0.7 m / 10 m / 25 m SPK3 SPK4 DO.7 / DO10 / DO25 DOSUB-LA8 X8 user manual (EN) version 5.0...

  • Page 9: Technical Description

    −40 −60 −80 −100 −120 −140 −160 −180 1 000 10 000 Frequency (Hz) Dispersion angle diagram of a single X8 using lines of equal sound pressure at -3 dB, -6 dB, -12 dB. X8 user manual (EN) version 5.0...

  • Page 10: Loudspeaker ConGurations

    Loudspeaker congurations X8 point source Deployed as a standalone point source, an X8 system operates over the nominal bandwidth of the X8 enclosure. The [X8] preset allows for a reference frequency response in short throw applications. The X8 enclosure is driven by the LA4X / LA8 / LA12X amplied controllers.

  • Page 11: X8 Point Source With Lf

    The X8 and SB15m enclosures are driven by the LA4X / LA8 / LA12X amplied controllers. X8 with SB15m With SB15m, the X8 system contour is reinforced by 8 dB at 100 Hz and the bandwidth is extended down to 40 Hz. Enclosure X8...

  • Page 12: X8 Stage Monitor

    LFC allows to adjust the frequency response curve to obtain the desired low frequency contour. For paired X8 monitors, enter the following parameters to obtain the reference response curve of a single enclosure: -3.0 For more information about LFC, refer to the LA Network Manager Help (section: Group Control Panel) and to the Array Morphing white paper, available on www.l-acoustics.com...

  • Page 13: X8 Stage Monitor With Lf

    The X8 and the SB15m enclosures are driven by the LA4X / LA8 / LA12X amplied controllers. X8 stage monitor with SB15m With SB15m, the X8 system contour is reinforced by 8 dB at 100 Hz and the system bandwidth is extended down to 40 35°...

  • Page 14: Loudspeaker Connection

    Loudspeaker connection Loudspeaker connection Connectors X8 is equipped with two 4-point speakON connectors. LINK Internal pinout for L-Acoustics 2-way passive enclosures speakON points Transducer connectors + Not linked Not linked SB15m is equipped with two 4-point speakON connectors. SB15m IN LINK...

  • Page 15: Connection To La4X

    2 enclosures in parallel: 4 Ω Connecting 2-way passive enclosures or subwoofers SP on speakON output OUT1 OUT3 OUT4 OUT2 SP and SP-Y1 on speakON output CH(1) (OUT1) SP-Y1 CC4FP OUT1/OUT2 OUT3/OUT4 CH(2) (OUT2) same as OUT1/OUT2 X8 user manual (EN) version 5.0...

  • Page 16: Connection To La8

    Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller. LA8 can drive up to three X8 per output, but no more than eight per controller. LA8 can drive up to two SB15m per output, but no more than six per controller.
  • Page 17 Loudspeaker connection DO and DOSUB-LA8 on CA-COM output SPK1 (OUT1) CA-COM SPK2 (OUT2) SPK3 (OUT3) SPK4 (OUT4) X8 user manual (EN) version 5.0...

  • Page 18: Preset Description

    0 ms OUT 4 IN A 0 dB 0 ms [SB15_100_C] loudspeaker elements outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 OUT 3 OUT 4 X8 user manual (EN) version 5.0...

  • Page 19: Recommendation For Speaker Cables

    4 Ω load 2.7 Ω load For your installation projects, you can use the more detailed L-ACOUSTICS calculation tool to evaluate cable length and gauge based on the type and number of enclosures connected. The calculation tool is available on our website: http://www.l-acoustics.com/installation-outils-de-calcul-137.html...

  • Page 20: Maintenance

    Maintenance Maintenance Disassembly and Reassembly procedures In order to operate, follow the order outlined here. Each assembly refers to the corresponding D/R procedure and the necessary repair kit. GRILL DIAPHRAGM G03174 COAXIAL SPEAKER G03170 X8 user manual (EN) version 5.0...

  • Page 21: D/R - Grill

    Maintenance D/R - Grill Tools • torque screwdriver • T25 Torx bit Repair kit G03170 - KR coaxial speaker X8 or G03174 - KR diaphragm X8 ×4 S100033 M5×25 Torx Exploded view For safety reasons, always use the new screws and spare parts provided in the KR.

  • Page 22: D/R - Coaxial Loudspeaker

    03046 100604 S342 8" coaxial speaker - 8 ohms 8" speaker gasket M5×20 hex * The screws and gaskets are also available in G03174 - KR diaphragm X8 . Prerequisite Grill disassembled. Grill (p.21). Exploded view For safety reasons, always use the new screws and spare parts provided in the KR.

  • Page 23: D/R - Diaphragm

    Discard the paper disk to avoid parasitic vibrations. 6. Remove the cone. 7. Carefully remove the diaphragm holding it by the connectors. 8. If there are black spacers on the air gap, do not remove them. X8 user manual (EN) version 5.0...

  • Page 24: Acoustical Check

    LA4X LA12X ENCLOSURE CHECK measures impedance at the reference frequencies for the connected loudspeaker family. The measured impedance is compared to the expected range allowing for fast detection of loudspeakers presenting circuit continuity issues. X8 user manual (EN) version 5.0...
  • Page 25 6. Press the OK key or the encoder wheel to launch the ENCLOSURE CHECK. The amplied controller generates short sinusoidal signals simultaneously for each connected output. The amplied controller displays the results for each output. X8 user manual (EN) version 5.0...
  • Page 26 • a percentage of variation from the expected range (found in NOK and UNDEF results) • the number of operational transducers out of the total Low variations from the expected range are acceptable: displayed percentage can be different from 0 and all transducers considered operational. X8 user manual (EN) version 5.0...

  • Page 27: Listening Test

    3. Carefully clean the loudspeaker with a dry cloth. 4. Perform the reassembly procedure. Replace the loudspeaker gasket and the screws. Apply the recommended torque. 5. Repeat the listening test. If the problem persists, replace the loudspeaker. X8 user manual (EN) version 5.0...
  • Page 28 X8 specications Description 2-way passive coaxial enclosure: 8'' LF + 1.5'' HF diaphragm, amplied by LA4X / LA8 / LA12X Usable bandwidth (-10 dB) 60 Hz - 20 kHz ([X8]) Maximum SPL 129 dB ([X8]) Nominal directivity axisymmetric 100° Monitoring angle 35°...
  • Page 29 Specications X8 dimensions 264 mm / 10.4 in 250 mm / 9.8 in 306 mm / 12 in X8 user manual (EN) version 5.0...
  • Page 30 Pantone 426C pure white RAL 9010 custom RAL code on special order Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specied in brackets). X8 user manual (EN) version 5.0...
  • Page 31 Specications SB15m dimensions 520 mm / 20.5 in 580 mm / 22.8 in X8 user manual (EN) version 5.0...
  • Page 32 L-Acoustics, an L-Group Company 13 rue Levacher Cintrat - 91460 Marcoussis - France +33 1 69 63 69 63 - info@l-acoustics.com www.l-acoustics.com L-Acoustics GmbH L-Acoustics Ltd. L-Acoustics Inc. Steiermärker Str. 3-5 PO. Box Adler Shine - Aston House 2645 Townsgate Road, Suite 600...
