Hach SC1000 Instruction Sheet

sc1000 Panel Mount Bracket
Safety information
Please read this entire document before unpacking, setting up, or operating this equipment.
Pay attention to all danger and caution statements. Failure to do so could result in serious
injury to the operator or damage to the equipment.
To ensure that the protection provided by this equipment is not impaired, do not use or install
this equipment in any manner other than that specified in this document.
Electrical equipment marked with this symbol may not be disposed of in European public disposal systems after 12
August of 2005. In conformity with European local and national regulations (EU Directive 2002/96/EC), European
electrical equipment users must now return old or end-of life equipment to the Producer for disposal at no charge to
the user.
Note: For return for recycling, please contact the equipment producer or supplier for instructions on how to return
end-of-life equipment, producer-supplied electrical accessories, and all auxiliary items for proper disposal.
Introduction

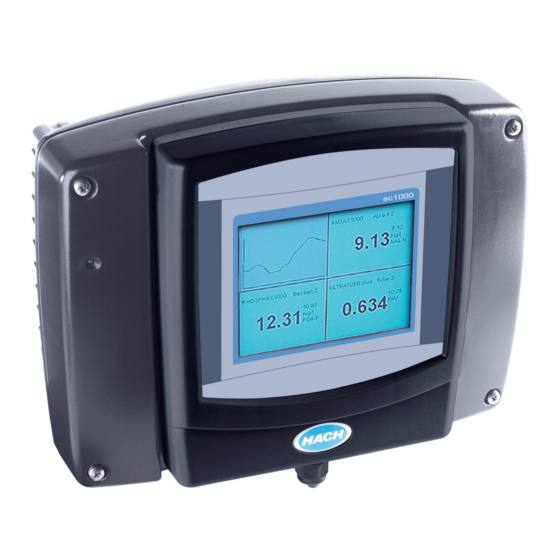

The panel mount bracket is used to mount the sc1000 display module in locations where the
display module and probe module must be mounted on opposite sides of a control panel. The
display module is connected by an extension cable (15 m maximum).
Note: Refer to the sc1000 User Manual (Cat. No. DOC023.54.03260) for probe module
mounting instructions.
Packing list
The sc1000 panel mount installation kit includes the following components, shown in
on page
•
•
•
•
Customer-supplied hardware
•
Instruction Sheet
3:
Probe extension cable, 7.7 m (item 2)
Panel mount bracket (item 8)
Modified strain relief (items 3–7)
Installation instructions
Screws, pan head, # 10, or equivalent low profile head screws (x3)
6169989
Figure 2
1
