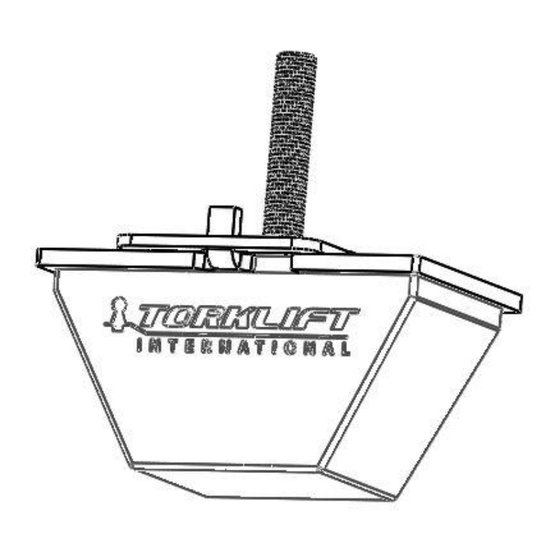

- Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS A7200 STABLE LOAD APPLICATION FITS: ALL FORD TRUCKS FITTED WITH FACTORY UPPER CONTACT OVERLOADS DODGE TRUCKS FITTED WITH FACTORY UPPER CONTACT OVERLOADS...
- Page 2 To adjust the gap between the overload spring and the stable load the stableload can either be modified by cutting up to 5/8” of material of the bottom or the stableload can be spaced down 1-1/4” using Torklift stableload spacer, part number A7201. 5/8”...
- Page 3 ROUNDED BOTTOM STABLE LOAD WITH OVERLOAD PERCH 3 POINT CONTACT WASHER INSTALLED A7200 PARTS INVENTORY 4 – StableLoad Pads 4 – 7/16 Hex Nut 4 – 7/16 Lock Washer 4 – 3 Point Contact Washer 4 – 7/16 Flat Washer...
- Page 4 Installation instructions Step 1- Unbolt and remove the factory rubber contact pad. It may be necessary to lubricate the factory rubber contact pad in order to remove it from the vehicle. If the upper overload perch is rounded, use the supplied 3 Point contact washer. If your overload perch is flat, DO NOT use the 3 Point contact washer.
