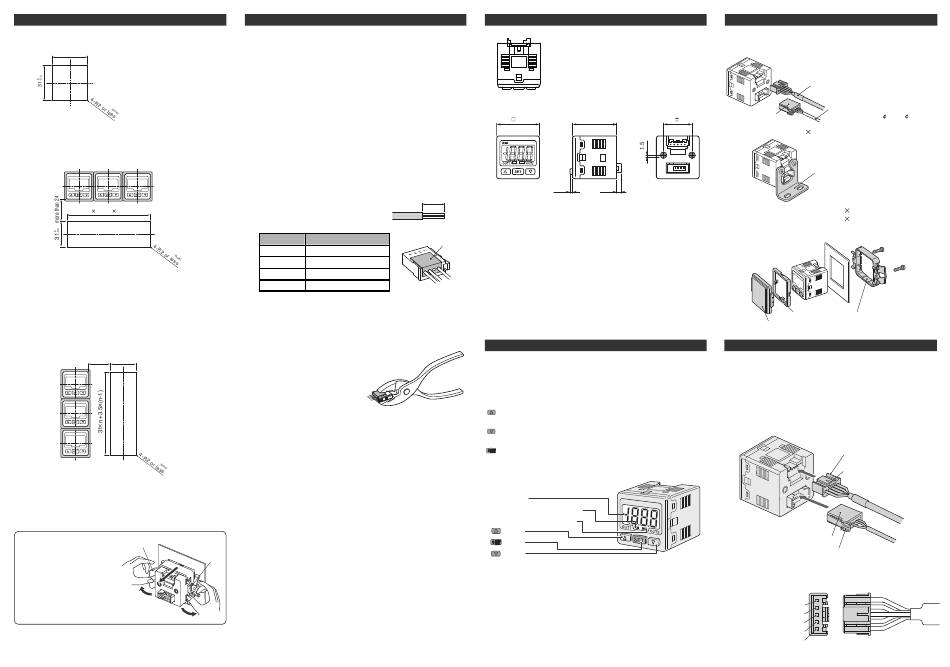

SMC Networks IZE11 Series Installation & Maintenance Manual page 2

IZE11-TFK08GB-A
4 Mounting and Installation (continued)
Panel Hole Dimensions
Panel Thickness : 0.5 to 6mm
Separate
31 0
-0.4
Note) When R is required, specify
R2 or less.
Two or more in row
n : The number of controllers
Horizontal
31 n +3.5 (n-1)
Vertical
more than 24 31 0
-0.4
Notice when removing the controller
Hook
• The controller with adapter
for panel mounting can be
removed from facility by
opening hooks of the
controller as illustrated after
removing two screws.
Pressure sensor controller
and Panel mount adapter
may be damaged.
4 Mounting and Installation (continued)
Connection
•Make connection after turning the power off.
•Install the lead wire separately from the route for power cable or high-voltage
cable. Otherwise, malfunction may potentially result due to noise.
•Be sure to ground Terminal FG when using a switching regulator obtained
on the commercial market. If analogue output is performed connecting to
a switching regulator obtained on the market, switching noise will be
superimposed and product specification can no longer be met. This can
be prevented by inserting a noise filter, such as a line noise filter and a
ferrite element, between the switching regulator and the controller, or by
using a series power supply instead of a switching regulator.
Attaching the connector to the lead wire
•Strip the sensor wire as shown in the figure.
(Do not strip the cable wire sheath)
•The core of the corresponding color shown
in the following table is put into the correct
pin number printed on the connector and
pushed to the back.
Pin No. Wire Color
1 Brown (DC +)
2 NC
3 Blue (DC -)
4 White (IN : 1 to 5VDC)
•Check that the above-mentioned preparation work has been performed
correctly, and A part shown in the figure is pushed by hand and makes
temporary connection.
•The centre part A is pushed straight in
using a suitable tool, such as pliers.
•Re-use cannot be performed once the
connector has been closed completely.
When connection failure occurs such as
incorrect fitting of wires, or incomplete
insertion, please use a new connector.
•When the sensor cable is a short length, do not connect the shield wire.
(The shield wire is common with amplifier case. Frame ground should be
prepared at the amplifier case side.)
Hook
5 Outline dimensions (mm)
30
EDS MONITOR
1.5
more than 20mm
A
6 Names / Functions of individual Parts
Output (OUT1) display (Green) : Lit when OUT1 is ON.
Output (OUT2) display (Red) : Lit when OUT2 is ON.
LCD display : Displays the current status of charged potential, set mode
condition and error code. Four display modes can be selected
display always in red or green only, or changing from green to
red linked to output.
button : Selects a mode and increases a set ON/OFF value. Press this
button to change to the peak display mode.
button : Selects a mode and decreases a set ON/OFF value. Press
this button to change to the bottom display mode.
button : Changes the mode and sets a set value.
LCD display
Output (OUT1) display (Green)
Output (OUT2) display (Red)
button
button
button
6 Names / Functions of individual Parts (continued)
Options
Power and output lead wire with cable (2m) : ZS-28-A
Connector for sensor lead wire (1pc.) : ZS-28-C
Connector for
31 20 0.1
sensor lead wire
Bracket with set screws M3 5L (2pcs.) : ZS-28-B
3.2
Panel mount adapter with set screws M3 8L (2pcs.) : ZS-27-C
Panel mount adapter with set screws M3 8L (2pcs.)
Front face protective cover : ZS-27-01
Front face protective cover
7 Internal Circuit and Wiring
Connector Connecting / Disconnecting
• When connecting the connector, insert it straight onto the pin holding
the lever and connector body and lock the connector by pushing the
lever claw into the square groove in the housing until connector clicks.
• When disconnecting the connector, push down the lever to disengage
the lever claw from the square groove. Then pull the connector straight
out.
Connector for sensor lead wire
Power and Output Connector Pin numbers
DC(+) Brown 5
OUT1 Black 4
OUT2 White 3
Analogue
DC(-)
Power and output lead wire
with cable
Conductor size : 0.14mm to 0.2mm 2
2
Overall diameter : 0.8 to 1.0
Bracket
+ Front face protective cover : ZS-27-D
Panel mount adapter
Power and output lead wire
with connector
Lever
Lever
Grey 2
Blue 1
