Summary of Contents for Royal Sovereign RBC-5000

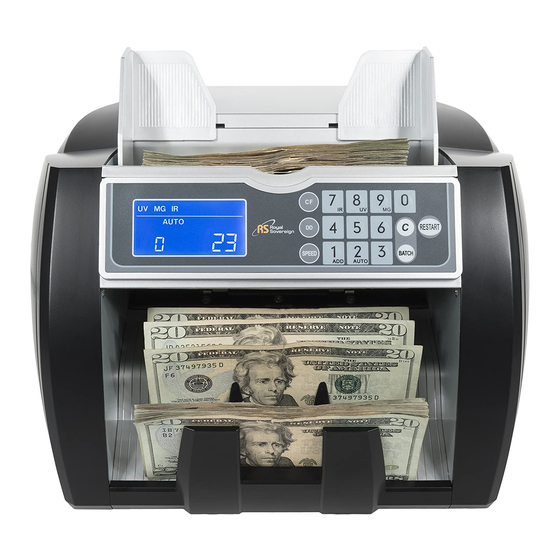

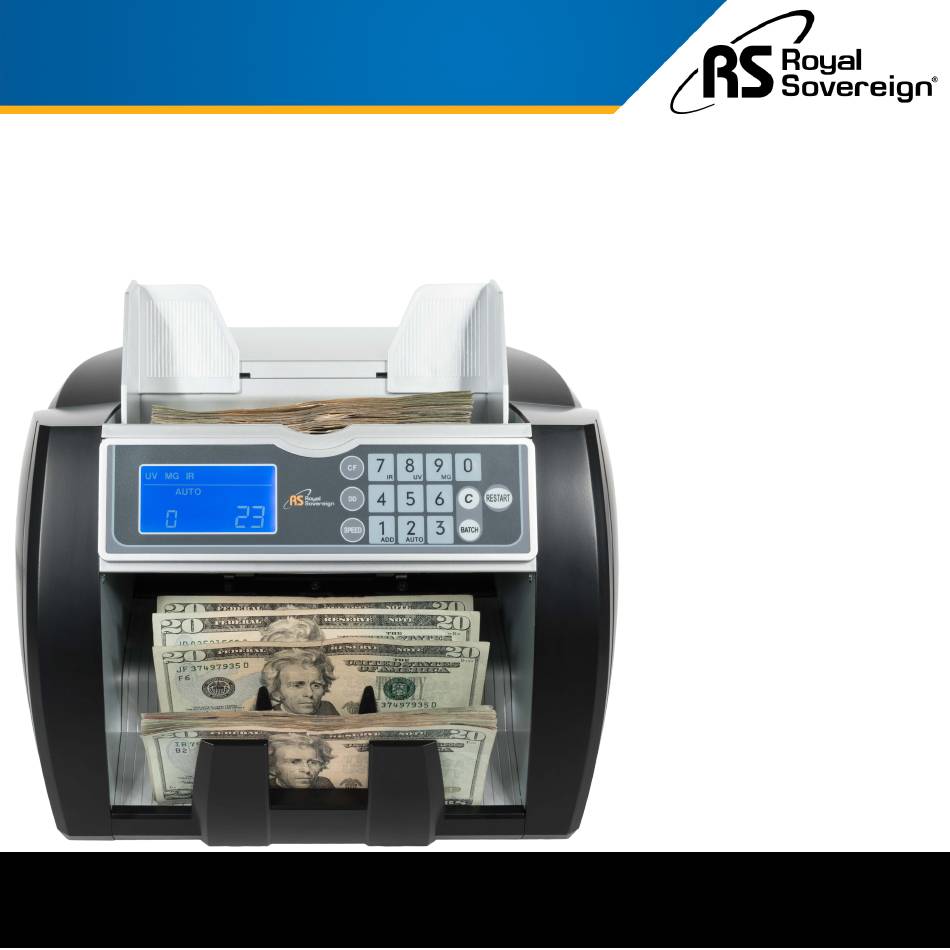

- Page 1 Owner's Manual HIGH SPEED BILL COUNTER WITH COUNTERFEIT DETECTION RBC-5000 Please read and retain these instructions. Royal Sovereign International, Inc. To register your product, please go to www.royalsovereign.com...
-
Page 2: Table Of Contents
Thank you for purchasing the Royal Sovereign High Speed Bill Counter with Counterfeit Detection, RBC-5000. This manual will provide you with safety information, instructions for optimal use, and proper care and maintenance for your product. Please read this manual carefully before operating. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS When using this machine follow these basic safety precautions to reduce risk of fire, electric shock, or injury. WARNING Only use the power cord that comes with the machine. Using a different power cord may result in electric shock, fire, or cause serious damage to the machine. -
Page 4: Box Contents & Product View
BOX CONTENTS Bill Counter Power Cord PRODUCT VIEW Hopper Control Panel Bill Receiving Vanes... -
Page 5: Quick Start Guide
QUICK START GUIDE 1. Plug the power cable into the back of the unit and into the wall power outlet. 2. On the back of the machine, flip the power switch to power on. 3. The machine will go through an automatic self-diagnostics test to ensure accurate bill counting. -
Page 6: Control Panel
CONTROL PANEL UV Counterfeit Detection Counterfeit bills often use white or bleached paper, which will glow under ultraviolet light. To use ultraviolet counterfeit detection, press the "CF" button and then the "UV" button (#8 on the numeric keypad). Press the "CF" button and then the "UV"... -
Page 7: Product Operation
PRODUCT OPERATION Attach power cable to back of machine, plug into a three prong outlet, and turn power switch on. The unit will conduct an automatic self-diagnostic test to ensure accurate counts. After five seconds, the screen will display a "0" on the left and on the right of the display with the word "AUTO"... - Page 8 PRODUCT OPERATION (CONTINUED) Counterfeit Detection Methods Ultraviolet and Magnetic Counterfeit Detection Methods are automatically on when the unit is powered up. To manually turn off any or all methods see (CONTROL PANEL - LOCATED ON PAGE 5.) AUTO or MANUAL Start The machine is preset to automatically start counting bills once placed into the hopper.
-
Page 9: Maintenance Of The Machine
If necessary, the glass surfaces of the detectors may also be wiped with a soft cloth damped with alcohol. To get the best results out of your bill counter, Royal Sovereign recommends using Royal Sovereign Cleaning Cards (RBC-CLN) to remove dirt, dusts, oils, and other contaminates from bill counters. With the machine on, simply run the cleaning card through the machine like a bill. -
Page 10: Troubleshooting
TROUBLESHOOTING Note: when counting and detecting is not accurate, please check the machine as follows: Problem Reason Solution Bills get Hopper To loosen the tension, please turn the bill thickness adjuster (located on the top of the machine) one notch to the right (+). Repeat bill counting and damaged Tension adjust if problem continues. -
Page 11: Error Code Display And Solutions
Problem with the right counting sensor. Problem with the left counting sensor. Clean the sensor. Problem with main motor and control circuit. Contact Royal Sovereign Product Support. Problem with drive belt. Problem with the feeding sensor or the control circuit. Contact Royal Sovereign Product Support. -
Page 12: Warranty
ONE YEAR LIMITED WARRANTY Royal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only. This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided.
