owner's Manual
RBC-5000
HIgH Speed BIll CounteR
With Ultraviolet, Magnetic and Infrared
Counterfeit Detection
Please read and retain these instructions.
To register your product, please go to www.royalsovereign.com
USA-Customer Support Tab then Registration Tab.
www.royalsovereign.com
Royal Sovereign International, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Royal Sovereign RBC-5000
Summary of Contents for Royal Sovereign RBC-5000
- Page 1 Manual RBC-5000 HIgH Speed BIll CounteR With Ultraviolet, Magnetic and Infrared Counterfeit Detection Please read and retain these instructions. To register your product, please go to www.royalsovereign.com USA-Customer Support Tab then Registration Tab. www.royalsovereign.com Royal Sovereign International, Inc.
- Page 2 SAFetY InStRuCtIonS Warning When using this machine follow these basic safety precautions to reduce risk of fire, electric shock or injury. 1. Do not place the machine in area where it may be exposed to water or other liquids. 2. Before cleaning the machine always unplug the machine from the wall. Do not use liquid or aerosol cleaners on the machine. 3.
-
Page 3: Table Of Contents
RBC-5000 ContentS Box Contents & parts∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 display and Function Keys∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 Features∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6-7 operation∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 error Messages and Solutions∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8-9 Specifications∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Warranty∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10... -
Page 4: Box Contents & Parts

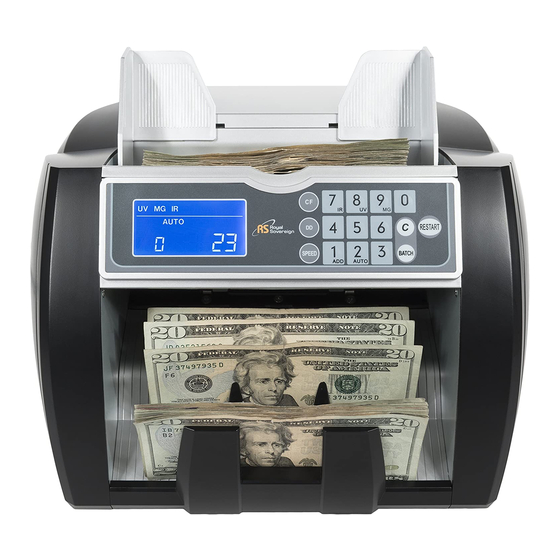

BoX ContentS Bill Counter, Power Cord Adjustable bill guides pARtS Hopper Control panel Bill receiving vanes Handle Bill thickness adjuster Power switch Power outlet... -
Page 5: Display And Function Keys
RBC-5000 display and function keys Magnetic counterfeit detection mode Ultraviolet counterfeit detection mode Infrared counterfeit detection mode Control Function Clear Restart Dimension Detection Batch count Bill count Speed Batch mode Automatic counting mode Add mode... -
Page 6: Features
FeAtuReS Front loading The sophisticated front loading system provides easy access to hopper, allows larger hopper capacity, and is more durable than a back loading system. Automatic Self-test The machine will automatically perform a self-test when it is turned on. If there is a problem, the preset display will show an error code. -
Page 7: Operation
RBC-5000 dimension detection The dimension detector measures the width of the center of each bill by using infrared light. If the detector finds an odd sized bill, the machine will stop counting to allow removal of the bill and display the error code on the preset display. To use dimension counterfeit detection press the DD button. -
Page 8: Error Messages And Solutions
eRRoR MeSSAgeS And SolutIonS When an error code appears in the preset display window and the machine stops, please refer to the following chart for an explanation error code Messages Solutions Remove the suspicious bill from the stacker, press “RESTART”to Suspicious bill detected by UV continue;... -
Page 9: Specifications
RBC-5000 Problem with the the main motor and Replace the mian motor or the main board the control circuit Problem with the drive belt Replace the drive belt Problem with the feeding sensor or Replace the feeding sensor or the main board... -
Page 10: Warranty
This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.
